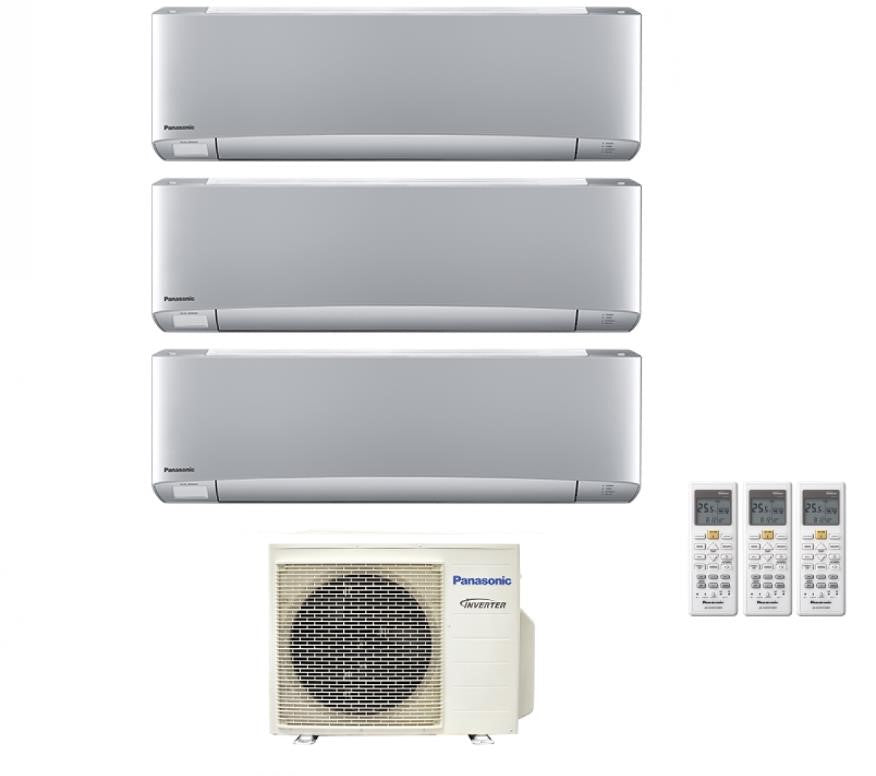

Panasonic Trial Split Inverter Air Conditioner Etherea Silver Series 9+9+9 with CU-3Z68TBE R-32 Integrated Wi-Fi 9000+9000+9000 Silver

Panasonic Trial Split Inverter Air Conditioner Etherea Silver Series 9+9+9 with CU-3Z68TBE R-32 Integrated Wi-Fi 9000+9000+9000 Silver

Technical features

INTERNAL UNITS

1) Model:

• Indoor unit catalog code: 3 x CS-XZ25VKEW
• Technology: INVERTER ErP (compliant with Community Regulation 629/2011/EU)
• Power 9000 btu
• Color: Silver
• Indoor unit dimensions (HxWxD): 295x919x194; 10kg

OUTDOOR UNIT

Model:

• Catalog code: CU-3Z68TBE
• Max combinable internal units: 3

Energy efficiency:

• SEER (W/W) : 8.0
• SCOP (W/W) : 4.2
• Energy Efficiency Class (Cooled): A+++
• Energy Efficiency Class (Heating): A+
• Cooling consumption (kWh): 298
• Heating consumption (kWh): 1733

Performance:

• Cooling Capacity (kW): 6.8
• Heating Capacity (kW): 8.5
• Sound pressure level¹ Cooling / Heating (Hi) dB(A) 51/52

Electrical data:

• Operation range:
• - Cooling: -10 / +46 °C
  - Heating: -15 / +24 °C

Dimensions and weight

• External Unit HxWxD (mm): 795x875x320; 71kg

General characteristics

ETHEREA R-32

R-32 refrigerant: more efficient and eco- friendly

Panasonic air conditioners are designed to guarantee a comfortable climate inside their customers' homes. The entire residential range is efficient and eco-sustainable, thanks to the R32 refrigerant. Living according to your sustainable lifestyle is now easier than ever.

Surprisingly slim design

An innovative design that fits perfectly with modern environments. We have selected the best materials to offer a refined design. Now available in silver and matte white modes.

Maximize energy savings with new models

The Econavi system sensors automatically adjust the power of the air flow, allowing you to save energy efficiently, without sacrificing comfort and convenience.


Plus product

R32 refrigerant. The heat pumps use the new refrigerant R32 thus allowing a reduction in the heating potential value.

Econavi. The Econavi system's intelligent sensors detect sunlight intensity, human movements, activity levels or the absence of people and automatically adjust the power and direction of the airflow. With the Econavi system you can save up to 38%.

The inverter guarantees greater efficiency, better comfort. More precise thermoregulation, which avoids peaks and keeps the temperature more constant with lower energy consumption.

nanoe™ . The nanoe™ purification system uses nanoparticles. It neutralizes both airborne and adhesive microorganisms, such as bacteria, viruses and mold, and ensures effective cleaning of the air in the environment.

Super Quiet. Thanks to Super Quiet technology, our air conditioners ensure extremely quiet operation. The sound pressure level of the indoor unit is only 19 dB(A), valid for Z20/Z25/Z35 models.

Mild Dry Cooling function. This function helps to prevent the rapid drop in ambient humidity (relative humidity is maintained at a level 10% higher than with the cooling function). It is ideal when you sleep with the air conditioning on.

Aerowings . More comfort with Aerowings. Large ventilation flow. Two fins improve the direction of the air flow.

Internet Control. This new generation system provides the possibility of remote control of the air conditioner or heat pump unit via the internet from anywhere, using a smartphone equipped with an Android or iOS operating system, a tablet or a PC.

Easy control via BMS. The communication port is integrated into the indoor unit, and allows connectivity and management via a building management system

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 75.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Panasonic
• modello: CLIMAT_ETS999O
• potenza btu: 9000+9000+9000
• superficie riscaldabile mq: 25/25/25
