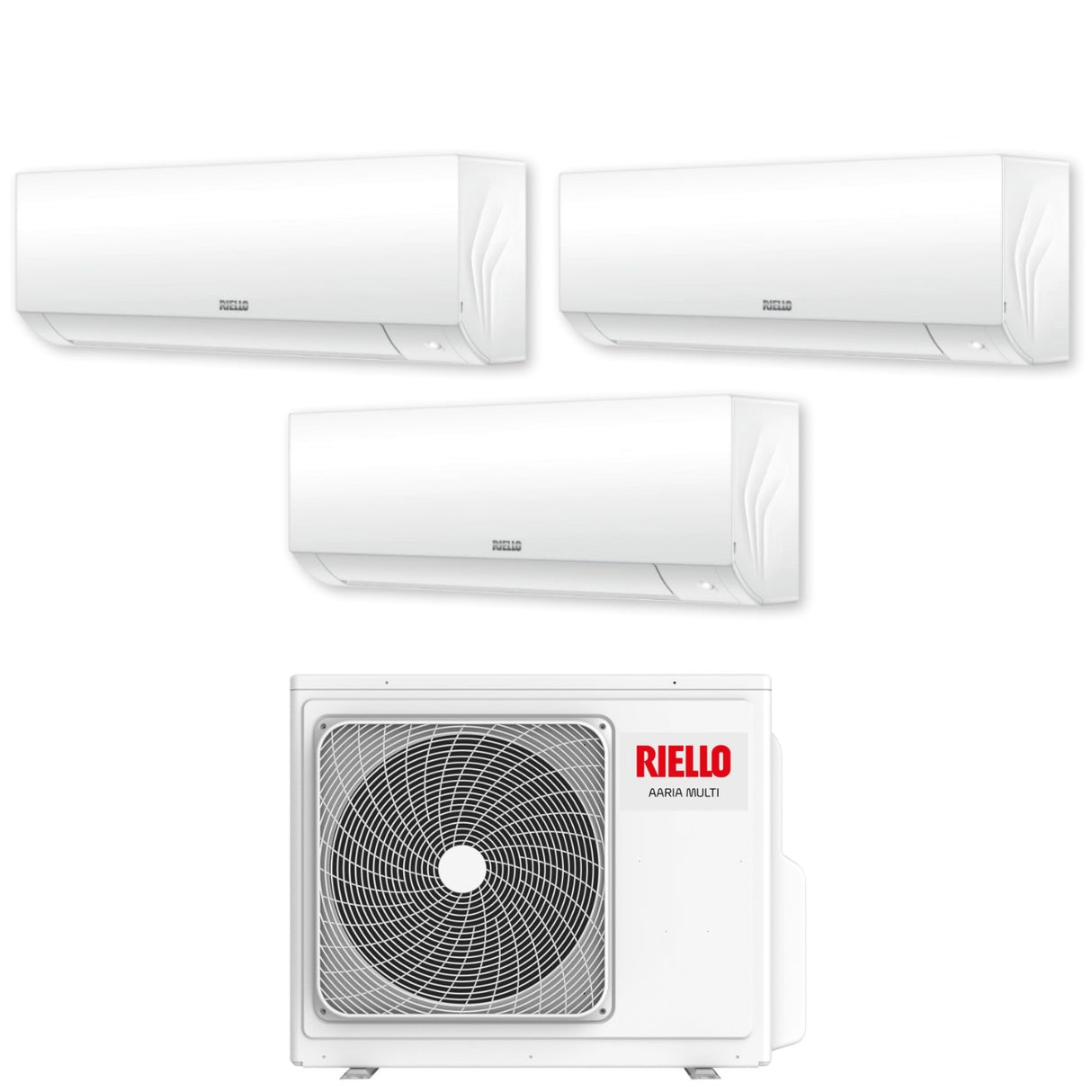

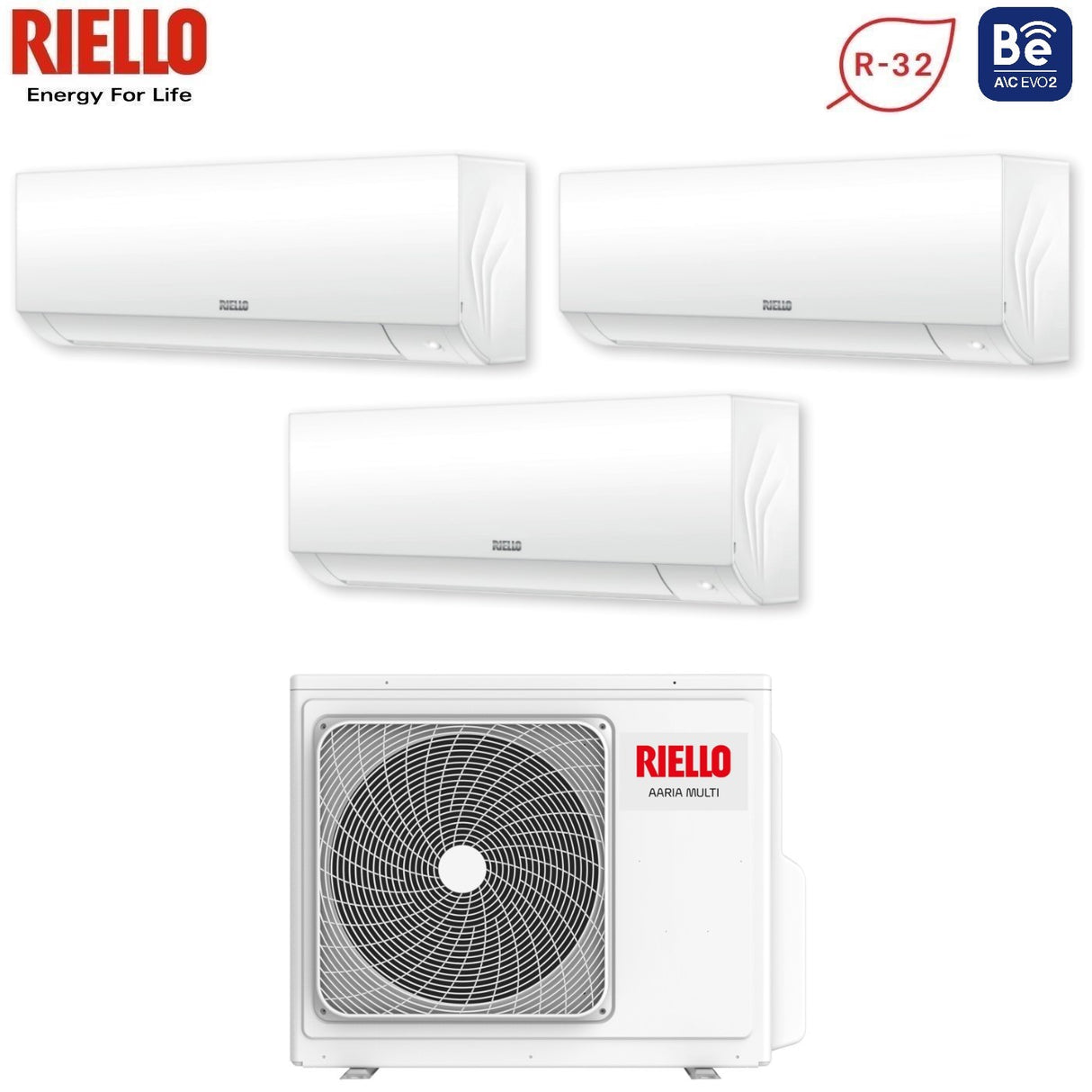

Riello Trial Split Inverter Air Conditioner Aaria Plus 9+12+12 series with Aaria Multi 355 P R-32 Wi-Fi Optional 9000+12000+12000

Technical features

Internal Units

1) Model:

• Catalog code: (x1) AMW 25 P
• Power: 9000 Btu/h
• Wi-Fi Optional ( Code 20133559 )Nominal cooling capacity kW: 2.5
• Nominal heating capacity (Pdesign) kW: 2.8
• Sound power in cooling dB(A): 54
• Power consumption W: 25
• Power supply (V/Ph/Hz): 230/1/50
• Max air volume treated m3 /h: 600
• Internal Unit Dimensions (HxWxD): 280 x 855 x 200 mm
• Internal Unit Weight: 10 kg

2) Model:

• Catalog code: (x2) AMW 35 P
• Power: 12000 Btu/h
• Wi-Fi Optional ( Code 20133559 )
• Nominal cooling capacity kW: 3.5
• Nominal heating capacity (Pdesign) kW: 3.8
• Sound power in cooling dB(A): 56
• Power consumption W: 25
• Power supply (V/Ph/Hz): 230/1/50
• Max air volume treated m3 /h: 650
• Internal Unit Dimensions (HxWxD): 280 x 855 x 200 mm
• Internal Unit Weight: 10 kg

External unit

Model:

• Catalog code: AARIA MULTI 355 P
• Maximum number of internal units: 3

Performance and energy data in cooling

• Nominal capacity: 5.5 kW
• Nominal absorbed power: 1.43 kW
• SEER: 7.20
• Energy class: A++
• Annual energy consumption: 276 kWh/a

Performance and energy data in heating average climate profile

• Nominal capacity: 5.70 kW
• Nominal absorbed power: 1.56 kW
• SCOP: 4.00
• Energy class: A+
• Annual energy consumption: 1839 kWh/a

Characteristics

• R32 refrigerant
• Electrical supply V-Ph-Hz: 220-240/1/50
• Twin Rotary Compressor (DC Inverter)
• Maximum air flow: 3000 m³/h
• Sound power: 64 dB(A)
• Sound pressure: 51 dB(A)

Hydraulic data

• Liquid/gas pipe Ø mm 3x6.35 / 3x9.52
• Max total pipe length: 30m
• Max single line UE-UI piping length: 25m
• Max height difference UI - UE: 15 m
• Max height difference IU - IU: 15 m

Dimensions

• External Unit Dimensions (HxWxD): 688 x 810 x 288 mm
• External Unit Weight: 43 Kg

Multisplit Riello AARIA

Design and efficiency for domestic and small commercial air conditioning

Technology

For over 30 years Riello has offered the market a wide choice of air conditioners. This experience allows us to offer solutions for summer and winter air conditioning capable of guaranteeing the best comfort and maximum efficiency. In particular, Inverter technology allows you to adapt the power absorbed by the air conditioner continuously, reducing or increasing it based on needs.

Design

The internal units of Riello AARIA air conditioners stand out for their refined aesthetic finish and the quality of the materials with which they are made, which allow them to be pleasantly inserted into any residential environment. Even the construction details of the external units are particularly carefully studied in order to avoid their deterioration even after many years of exposure to atmospheric agents.

Efficiency

Riello has always been a leader in the search for the efficiency of its products. The AARIA series air conditioners have also been designed to provide the best performance in both summer cooling and winter heating. Also thanks to the introduction of the new R32 gas, the new AARIA models reach the A+++ class, guaranteeing extremely low management costs.

Refrigerant gas R32

Riello introduces the R32 refrigerant gas, replacing the current 410A, within the residential air conditioning proposal. The new gas presents numerous advantages for the environment and performance, allowing the units to reach up to the A+++ efficiency class, as well as complying with the new European Regulation for the reduction of the environmental impact of fluorinated gases in the atmosphere.

Comfort

The AARIA series air conditioners act on multiple fronts to achieve maximum environmental comfort. In addition to the perfect stability of the room temperature, there is the continuous cleaning action of the air, to eliminate even the smallest suspended impurities and offer a healthier environment. Optimal humidity values ​​are always guaranteed thanks to the Dry dehumidification function. The internal units of the AARIA series are also characterized by their extreme silence, thanks to the use of fans made with brushless* technology and the design of the air distribution.

AARIA MULTI PLUS

AARIA Multi Plus is the ideal solution for residential and commercial applications for which perfect climate maintenance is required.

The range has been designed to serve multiple rooms with the use of a single external unit. The main feature is given by the flexibility of the choices of internal units with a wide choice between wall-mounted, cassette and ducted. AARIA MULTI PLUS is available in the version from 5 to 8.5 kW of cooling power supplied, guaranteeing cutting-edge energy performance. The unit with R32 refrigerant with low environmental impact reaches energy efficiency values ​​equal to class A++/A+ , thanks to Inverter technology. The outdoor unit in pre-painted metal with action against atmospheric agents is equipped with plastic connection covers and front grille. The compressor is of the Twin Rotary type with high efficiency and capable of reducing vibrations to a minimum.

Efficiency and Versatility

AARIA MULTI PLUS - multisplit outdoor unit, to connect up to 4 indoor units, with a single outdoor unit. The use of the new R32 refrigerant gas, with low environmental impact, allows the achievement of efficiency values ​​equal to A++ in cooling and A+ in heating.

Elegance and practicality

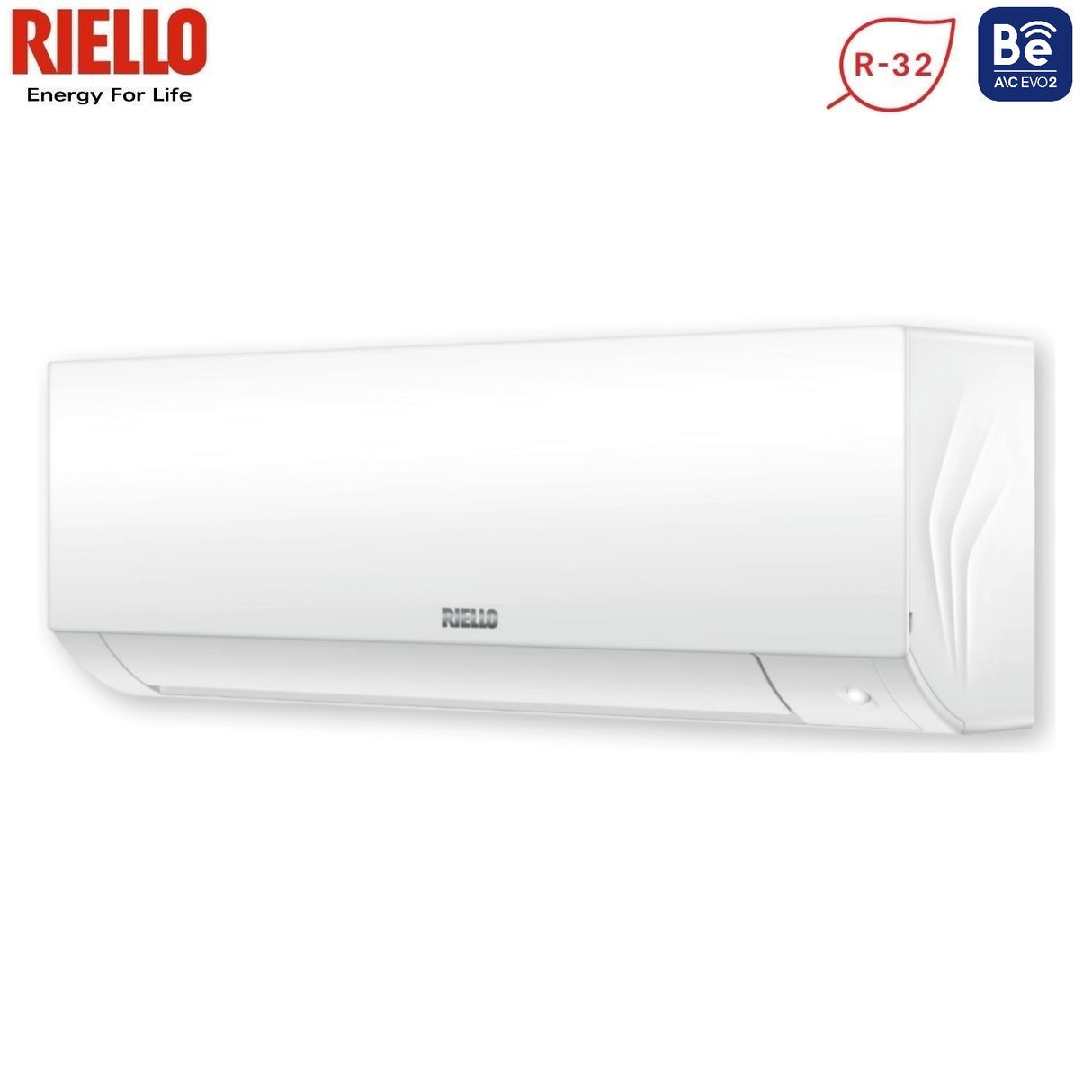

AMW P - The AMW P wall unit is characterized by a pleasant design, combining aesthetics and functionality. Equipped with an elegant LED display with adjustable brightness, to display the room temperature, the operating status and any error messages. The filters complete this proposal to always maintain the highest level of air quality. AMW P comes standard with infrared remote control for controlling the unit, with large backlit display. the optional Wi-fi kit allows you to manage the unit outside the home.

Everything under control

Optional Wi-Fi kit - The Riello wall units, from the AMW P range, can be equipped with a Wi-Fi kit to manage the comfort of your home comfortably even outside the home, via app, on your mobile device.

Remote control

Infrared remote control for AMW P wall unit and AMK P cassette, for controlling the unit, with large backlit display. The extraordinary design does not end only in the internal unit, but also expresses all its elegance in the exclusive remote control through which you can manage the potential of the air conditioner yourself.

Product Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 75.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Riello
• modello: Aaria 9+12+12
• potenza btu: 9000+12000+12000
• superficie riscaldabile mq: 25/35/35
