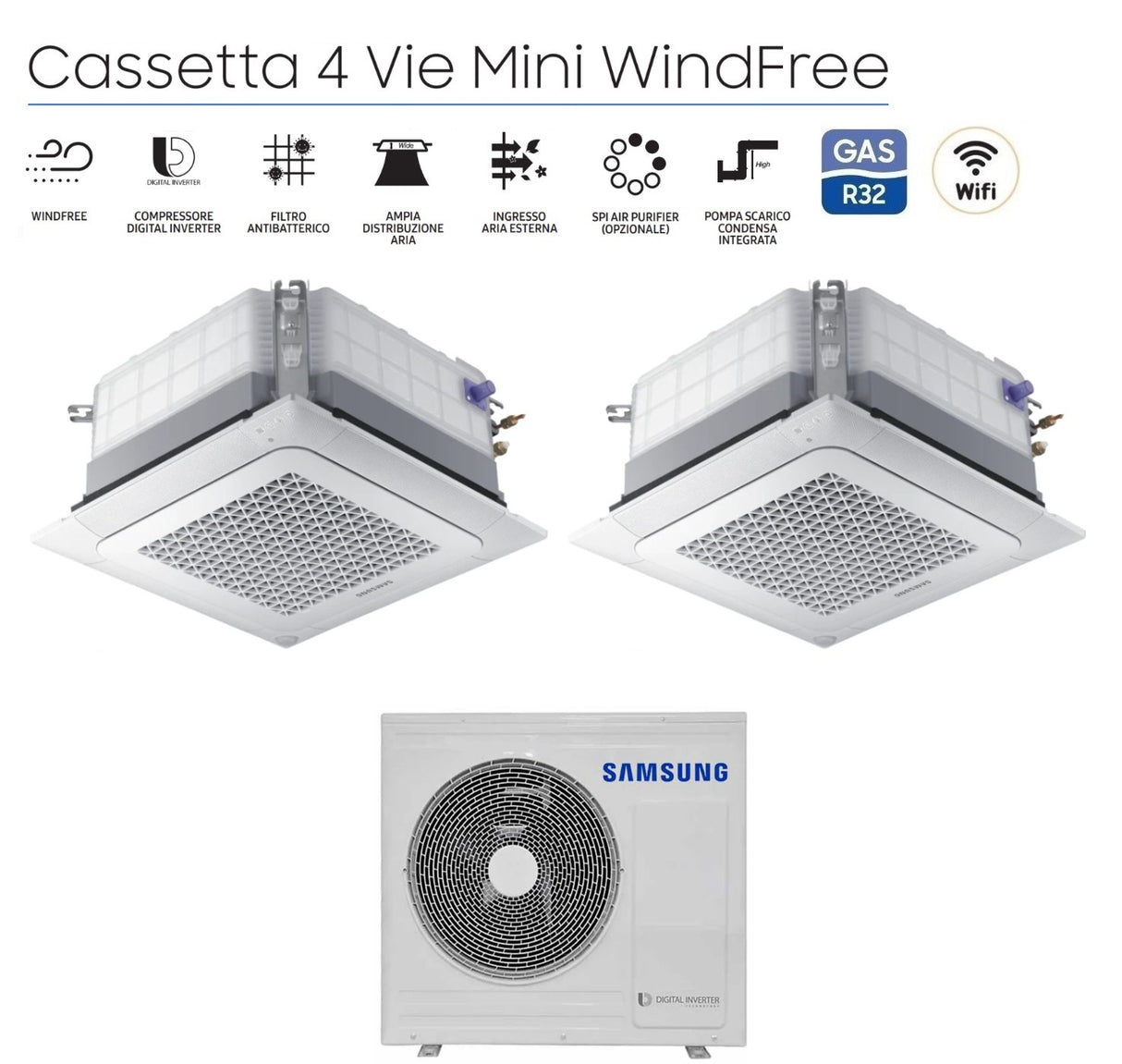

Samsung Dual Split Inverter Air Conditioner Cassette 4 Way Mini Windfree 18+18 with AJ100TXJ5KG/EU R-32 18000+18000 Wi-Fi Optional with Grille Included

Technical features

Internal units

• Indoor Unit Catalog Code: 2x AC052RNNDKG/EU
• Panel Code: PC4SUFMAN
• Power: 18000 btu/h
• Cooling Capacity: 5.0 kW
• Heating Capacity: 5.5 kW
• Treated air: 10.5 m ³ /min
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 12.70 mm (1/2")
• Internal Unit Dimensions (WxHxD): 575x250x575 mm
• Internal Unit Weight: 11.6 Kg

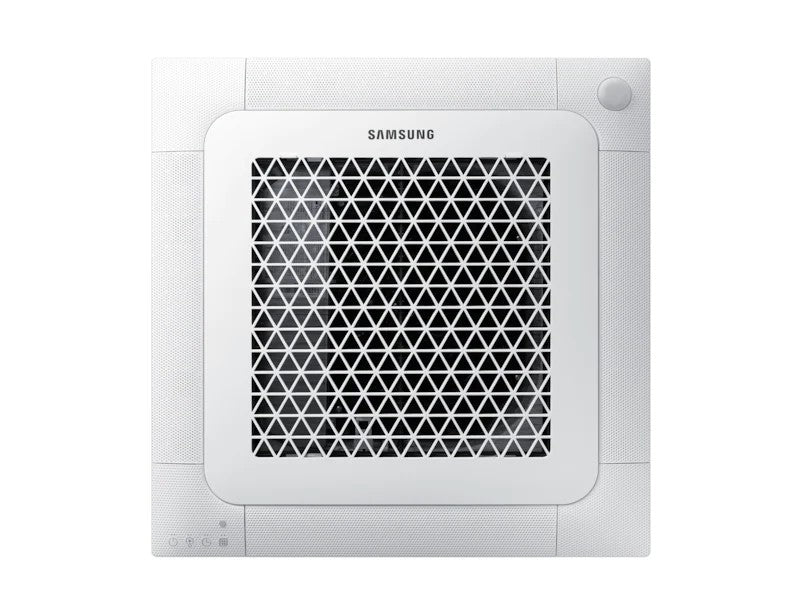

• Panel dimensions (WxHxD): 620x57x620 mm
• Panel weight: 2.7 kg
• Wi-Fi Optional: MIM-H04EN
• Optional wired control: MWR-SH11N
• Remote control: AR-EH03E

External Unit

Model :

• Outdoor Unit Catalog Code: AJ100TXJ5KG/EU
• EAN: 8806090223792
• Connectable Internal Units: 5

Performance:

• Cooling Capacity: 10.0 kW
• Heating Capacity: 12.0 kW
• Sound Power Level: 70 dB(A)
• Sound pressure level: 54~56 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• Cooling: -10° ~ 46°C
• Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (WxHxD): 940x998x330 mm
• External Unit Weight: 76.5 Kg

Samsung WindFree ^TM Digital Inverter Cassette

Compact dimensions

The 4-way mini cassettes can be installed in the classic false ceiling panel (600x600 mm).

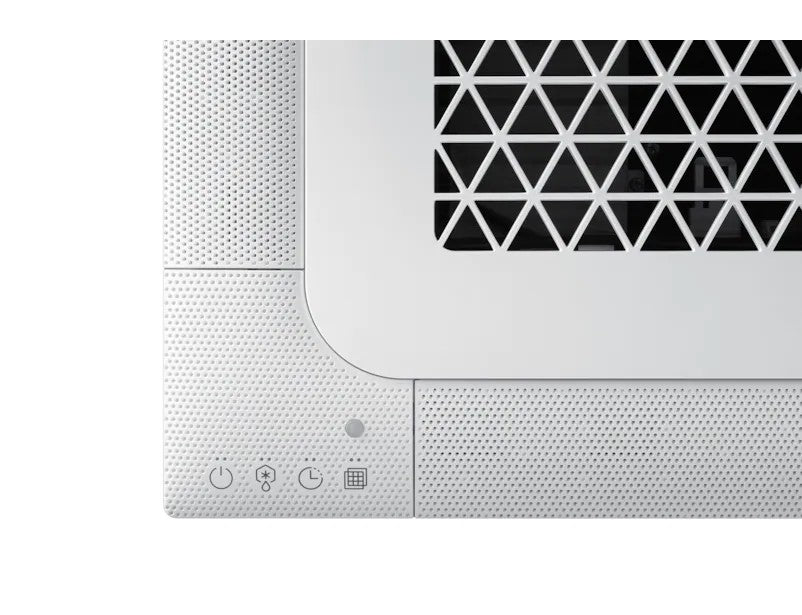

On-board display

The units are equipped with an integrated display which identifies the operating mode of the internal unit at any time

Control of every single flap

Using the wired control, each of the 4 flaps can be adjusted individually, within an angle between 32°-65°.

360° air distribution

The deflectors at the ends of each fin guarantee 360° air distribution to reach every corner of the room

Large deflector. Enhanced Air Throw: The deflectors have a profile designed to increase the air throw ensuring the right comfort in every corner of the room

NO Dust. False ceiling always clean: The shape of the new deflector is designed to avoid dust contact with the false ceiling. In this way, blackening due to continuous contact with dust is avoided

Easy Cleaning: Each fin can be easily removed, to carry out the correct cleaning, without completely dismantling the grill

Quick setting: Samsung cassettes allow for rapid setting of the temperature compared to conventional models

Reduced noise: The fan is sized to reduce noise and have uniform air distribution through the 4 delivery fins

Pure air

The Virus Doctor device generates active hydrogen atoms and oxygen ions to thoroughly purify the air and make the environment comfortable

Operation

The active hydrogen atoms and oxygen ions generated attack the surface of the harmful particle, which decomposes and transforms into water which is dispersed into the environment

Effective against:

• Viruses and bacteria

• Mold dust

• Allergens

• Free radicals

No water leaks

The non-return valve in the drain pump prevents the condensate from returning to the collection tray. In this way, the water level in the tray is kept under control, avoiding the presence of stagnant water

Condensate drain pump included. Delivery to adjacent room

The flow to an adjacent room allows a single internal unit to air condition two adjacent rooms (the cassette unit is supplied with an ad hoc pre-shear).

Optional accessory presence sensor only for mini 4-way

ON / OFF function

The sensor detects the presence of people within the environment based on which it automatically turns the unit on/off, saving energy

Optimal air distribution

The sensor automatically adjusts the inclination of each individual flap, based on the positioning of people

External air inlet: It is possible to connect a duct to be used for the inlet of fresh external air

Secondary duct: A secondary duct can be connected to the cassette to cool/heat an adjacent room

Air speed adjustment: The optimal air speed can be adjusted with the remote control up to a maximum height of 3 m

High installation height: In case of high installation height, it is possible to increase the air flow to have optimal coverage up to a maximum height of 4.6 m (only for 4-way cassette 12.8 - 14.0 kW).

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Samsung
• metri quadri : 50/50
• modello: MINI_CASSETTA_18+18_100_1
• potenza btu: 18000+18000
• superficie riscaldabile mq: 50/50
