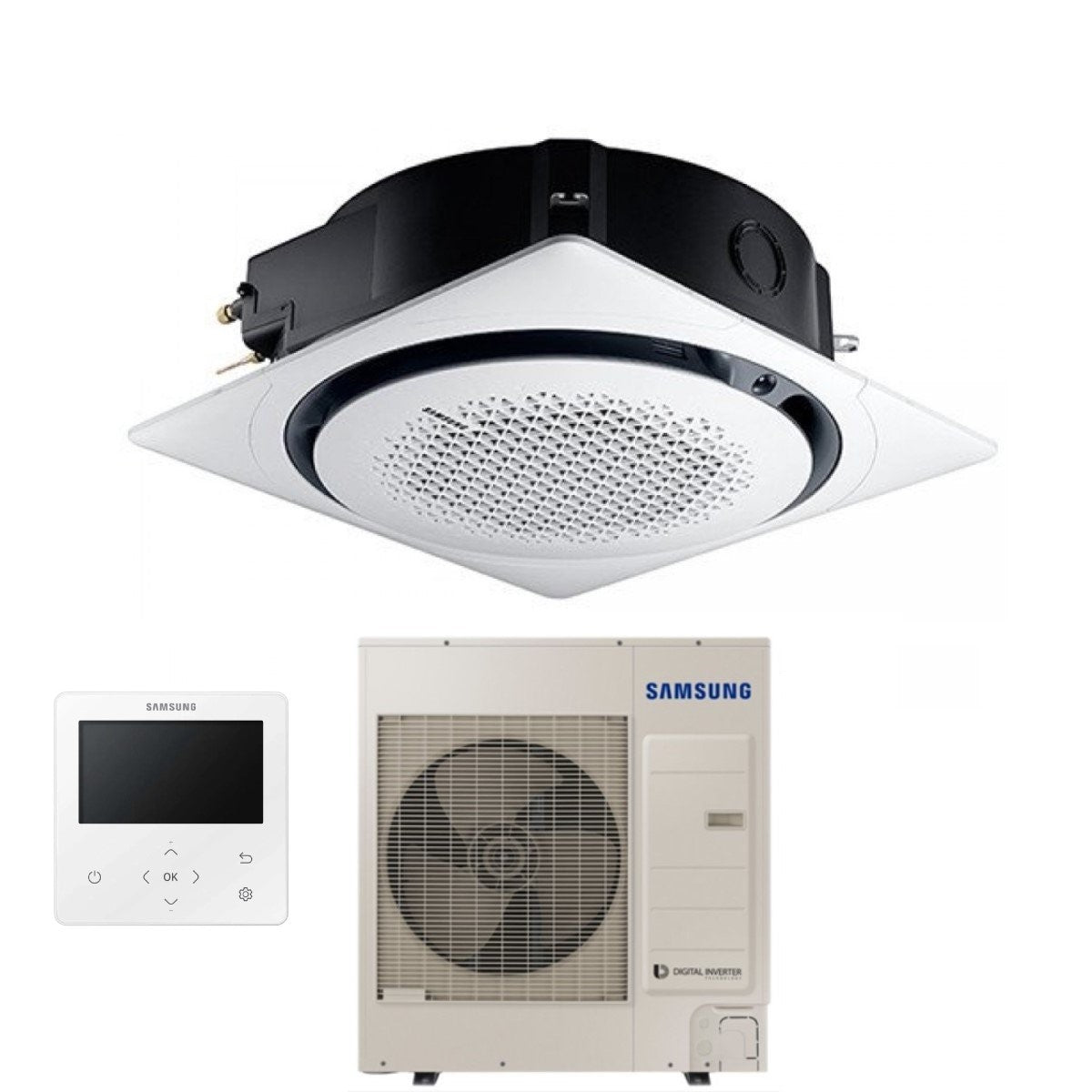

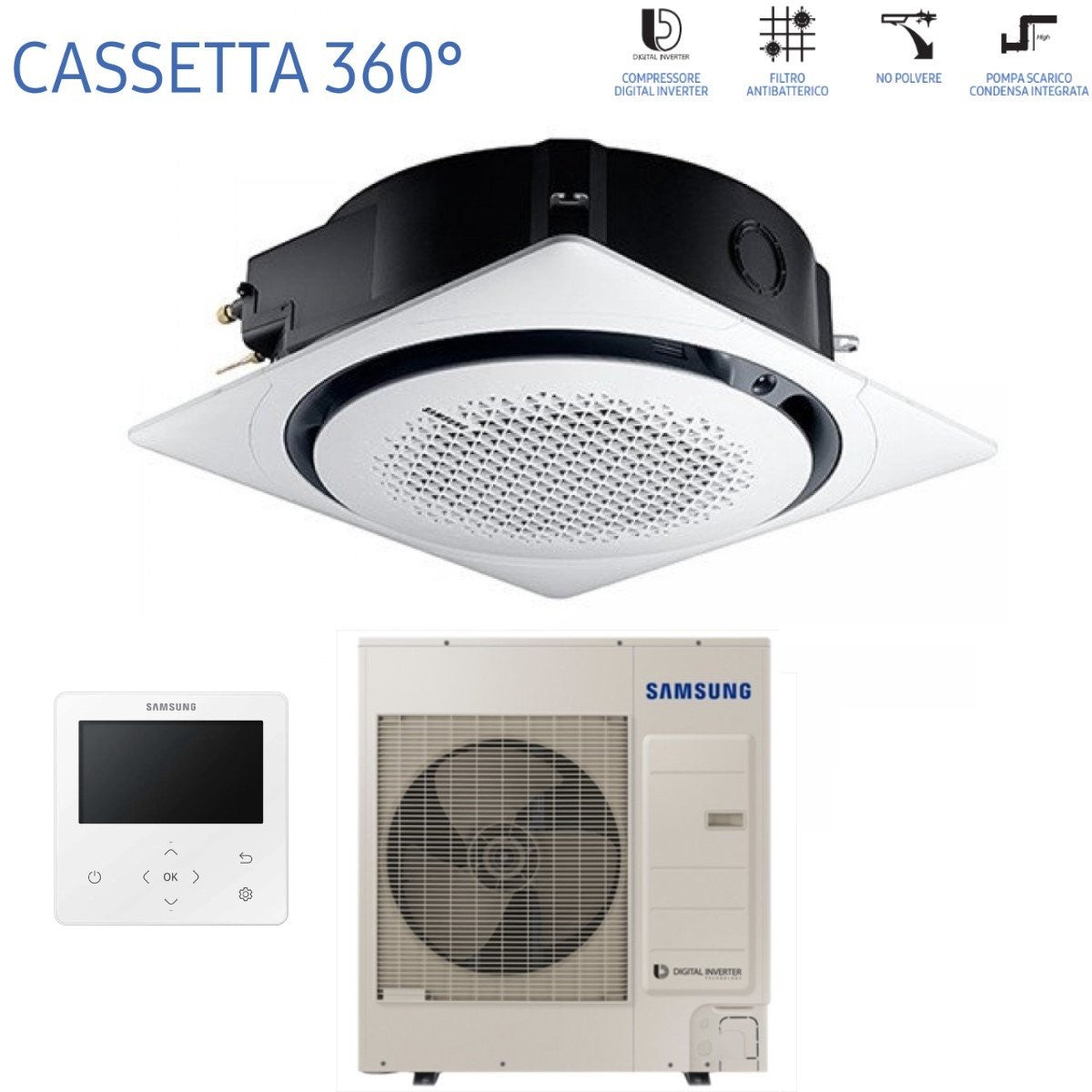

Samsung Inverter Air Conditioning Cassette 360° 30000 Btu AC090MN4PKH/EU Single Phase R-410 Wi-Fi Optional with Wire Control and White Circular Grille

Technical features

• Indoor unit catalog code: AC090MN4PKH/EU
• Outdoor unit catalog code: AC090MXADKH/ EU

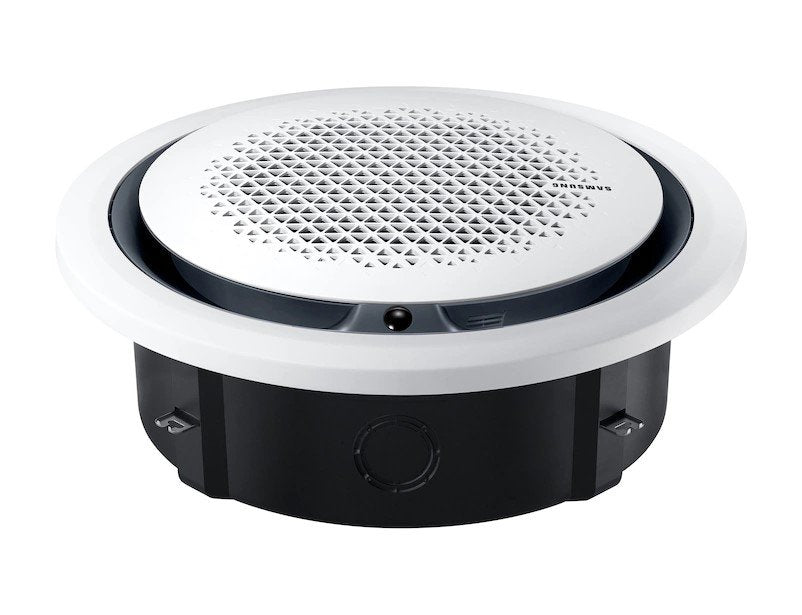

• White circular panel code: PC4NUNMAN
• Advance wired control included: MWR-WG00KN
• Optional Wi-Fi: MIM-H03N

• SEER : 6.8
• SCOP: 4.3
• Cooling energy efficiency class: A++
• Heating energy efficiency class: A+
• Annual energy consumption in cooling: 463 kWh/a
• Annual energy consumption in heating: 1726 kWh/a

Performance

• Cooling capacity: 9.0 kW
• Heating capacity: 10.0 kW
• Cooling absorption: 2.82 kW
• Heating absorption: 2.65 kW
• Indoor unit treated air: 30.1 m³/min
• Indoor unit sound power level: 60 dB(A)
• External unit sound power level: 68 dB(A)

Electrical data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R410A

• Liquid pipe diameter: 9.52 mm (3/8")
• Gas pipe diameter: 15.88 mm (5/8")
• Maximum pipe length: 50 m
• Maximum height difference between internal unit and external unit: 30 m

Dimensions and weight

• Indoor unit dimensions (WxHxD): 947x365x947 mm
• Indoor unit weight: 23.5 kg
• Ring dimensions (WxHxD): 1000x66x1000 mm
• Panel weight: 3.6 kg
• External unit dimensions (WxHxD): 940x998x330 mm
• External unit weight: 72.0 kg

---

NB For this product you can choose between 4 different types of panels: square or circular, white or black, ideal for exposed installation.

---

Samsung Cassette 360°

Innovative, elegant, perfect even for the most sophisticated contexts.
Samsung's 360° Cassette is the new internal unit designed for better air conditioning in terms of performance and comfort

---

Elegant design The circular design that integrates perfectly into any place

Thanks to its versatility, the innovative circular design adapts perfectly to different types of furnishings. The modern and minimalist style ensures an elegant appearance, while the circular shapes stand out for their pleasantness. Suitable for museum areas, restaurants, showrooms and commercial spaces where high architectural standards are required.

---

360° air distribution

Unlike 4-way cassette air conditioners that generate areas with uneven air flow, where the coolness doesn't reach*, the circular vent produces fresh air in all directions so that every corner of the room has the same temperature

---

Goodbye annoying cold, welcome pleasant freshness

The deflector-free design delicately distributes fresh air within the room, pleasantly refreshing the environment without producing the typical cold sensation caused by air conditioners**. Without baffles blocking the flow, the unit produces 25% more air* and spreads it even more effectively.

---

Airflow control

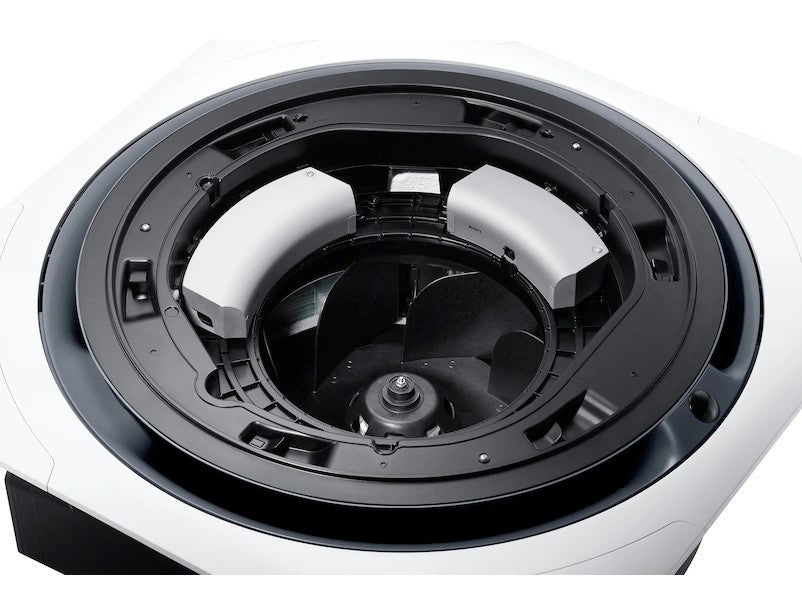

The air delivery is regulated without the use of fins: using 3 booster fans, a depression is created inside a circular cavity in the cassette which diverts the direction of the air outlet. The coanda effect is thus exploited for a "rain" distribution of the air, making the environment particularly comfortable

---

Absence of fins

The presence of fins or diffusers in general constitutes a loss of load for the unit's fan; the configuration of the 360° cassette allows these losses to be reduced to a minimum by making full use of the air flow supplied by the fan.

---

Spread more air in more directions

The air delivery is regulated without the use of fins. The innovative booster fan expels cold air at much lower angles. By creating a low-pressure zone around the vent, it directs cold air parallel to the ceiling and disperses it over a larger area.

---

High comfort

The temperature uniformity is much higher and more stable than conventional models. The cassette can be installed within a height between 2.7 m and 4.6 m (the maximum installation height depends on the model considered).

---

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 120.0 kg
• alimentazione: Single phase
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• costospedizionecad: IT64;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
• gas: R-410
• marca: Samsung
• modello: AC090MN4PKH Monofase
• potenza btu: 30000
