Samsung
Garanzia Italiana 24 mesi
SKU: AC120RN4PKG/EU

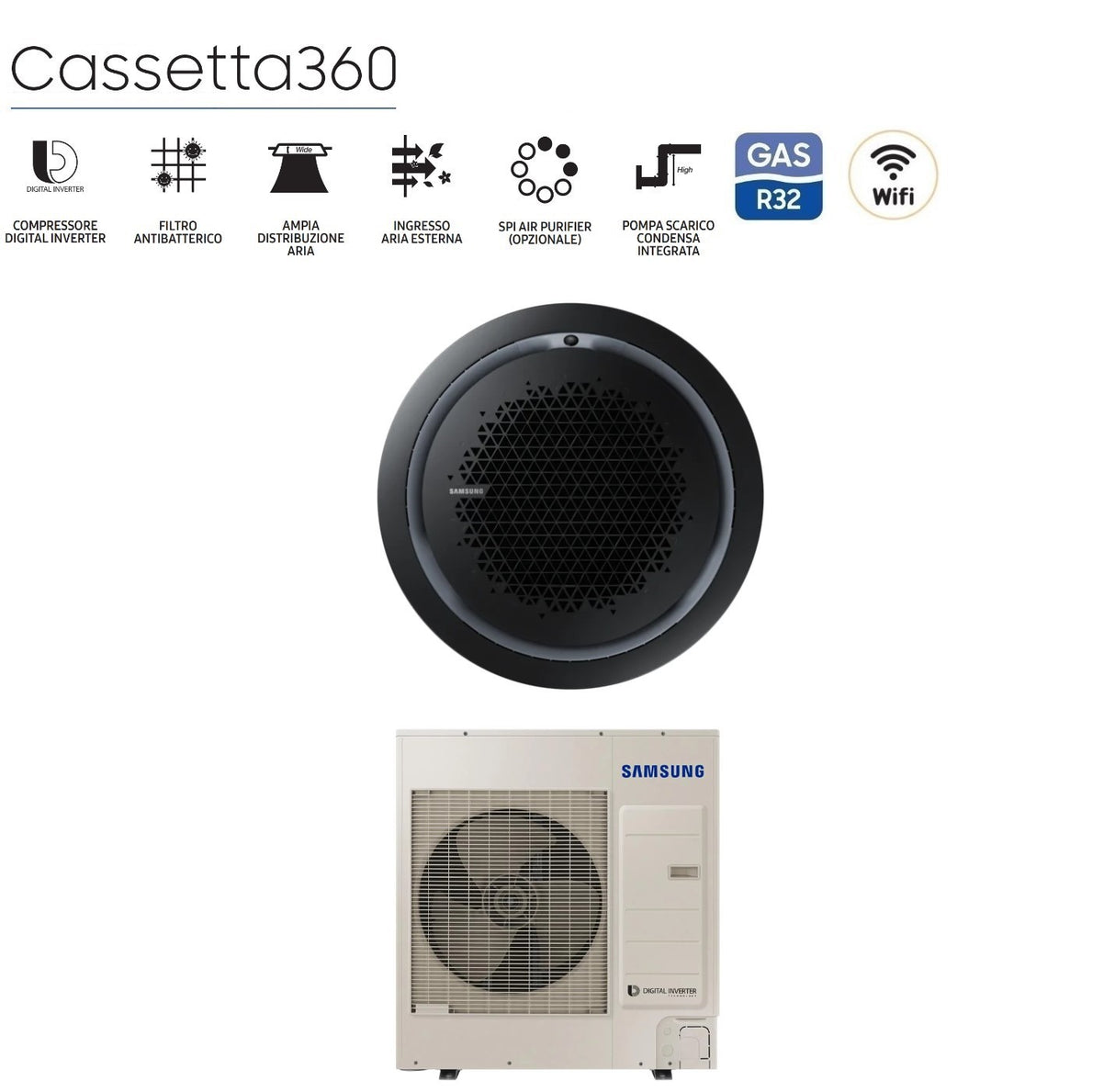

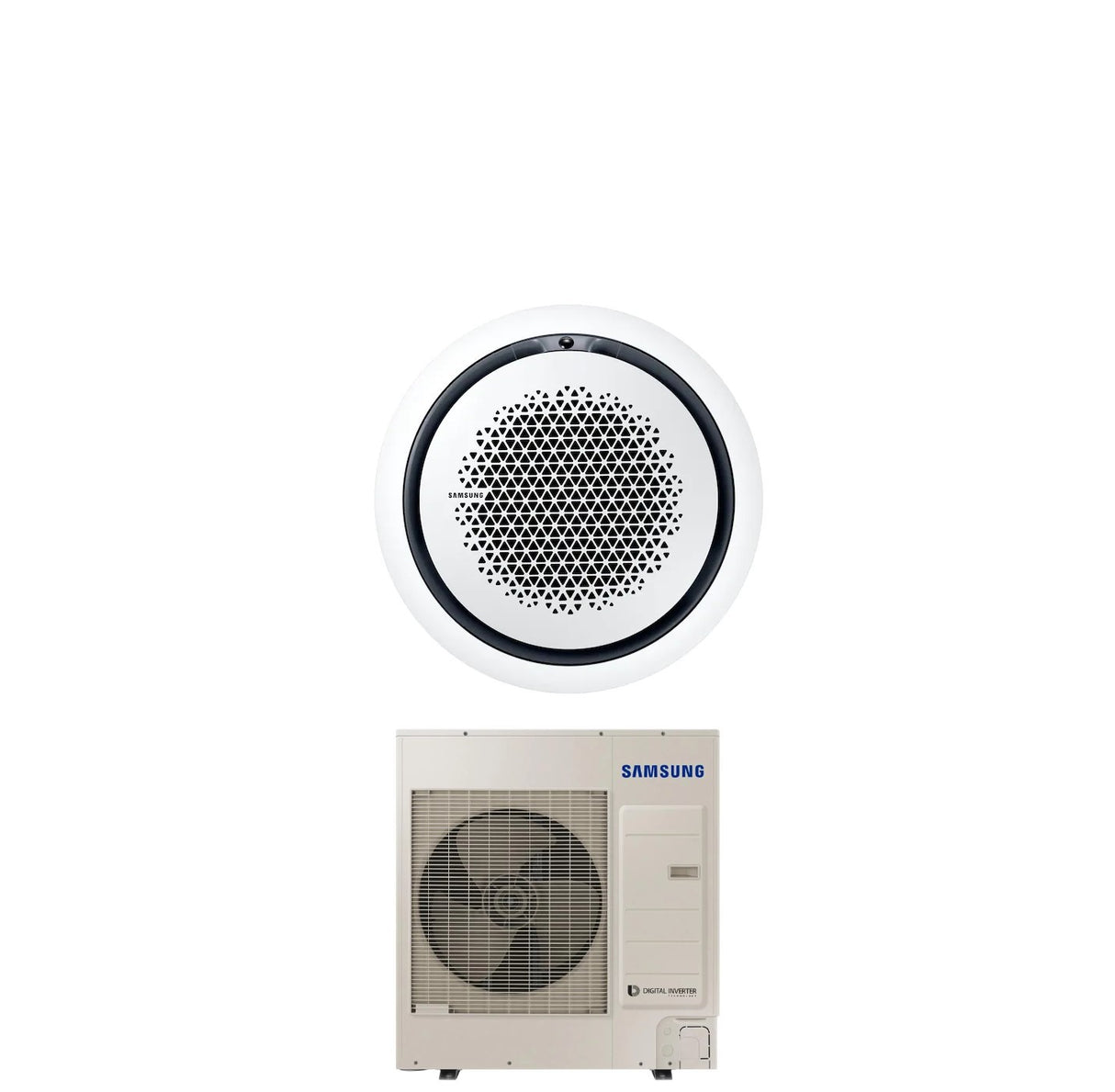

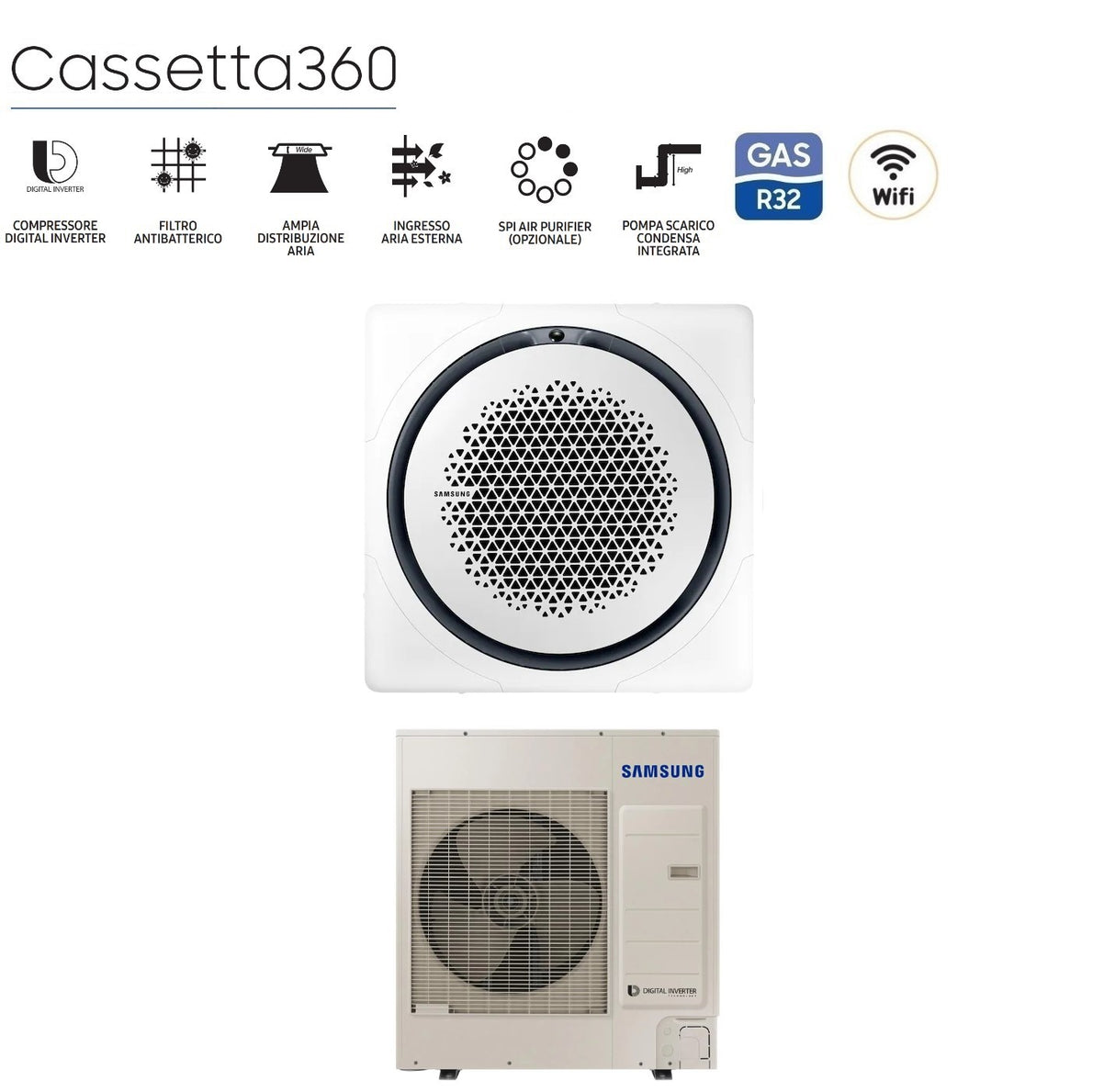

Samsung Inverter Air Conditioning Cassette 360° 42000 Btu AC120RN4PKG/EU Single Phase R-32 Wi-Fi Optional Various Panels Available

€2.986,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

  • Indoor unit catalog code: AC120RN4PKG/EU
  • EAN: 8801643769604
  • Outdoor unit catalog code: AC120RXADKG/EU
  • EAN: 8801643769635
  • Power: 42000 Btu
  • Optional Wi-Fi: MIM-H04EN

Optional controls that must be combined for correct operation of the unit

Energy efficiency

  • SEER : 6.0
  • SCOP : 4.0
  • Cooling energy efficiency class: A+
  • Heating energy efficiency class: A+
  • Annual energy consumption in cooling: 515 kWh/a
  • Annual energy consumption in heating: 1726 kWh/a
Performance
  • Cooling capacity: 12.00 kW
  • Heating Capacity: 13.20 kW
  • Cooling absorption: 4.45 kW
  • Heating absorption: 4.05 kW
  • Indoor unit treated air: 32.5 m 3 /min
  • Indoor unit sound power level: 61 dB(A)
  • External unit sound power level: 70 dB(A)

Electrical data

  • Power (V,Hz, Ø): 220~240/50/1
  • Refrigerant gas: R-32
  • Operating range
  • - Cooling: -15° ~ 50° C
  • - Heating: -25° ~ 24° C
Installation data
  • Liquid pipe diameter: 9.52 mm (3/8")
  • Gas pipe diameter: 15.88 mm (5/8")
  • Maximum pipe length: 50 m
  • Maximum height difference between internal unit and external unit: 30 m

Dimensions and weight

  • Indoor unit dimensions (WxHxD): 947x365x947 mm
  • Internal unit weight: 23.5 kg
  • Panel dimensions: 1000x66x1000 mm
  • Panel weight: 3.6 kg
  • External unit dimensions (WxHxD): 940x998x330 mm
  • External unit weight: 81.0 kg

NB For this product you can choose between 4 different types of panels: square or circular, white or black, ideal for exposed installation.

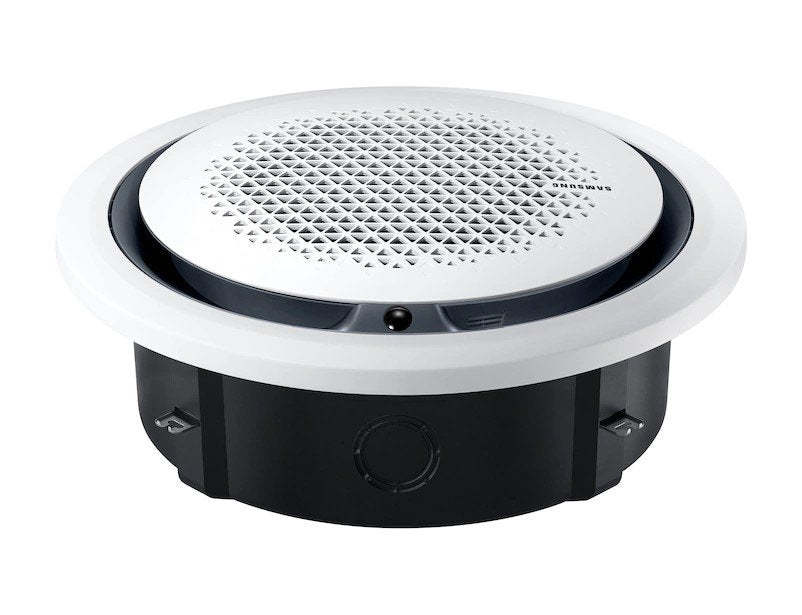

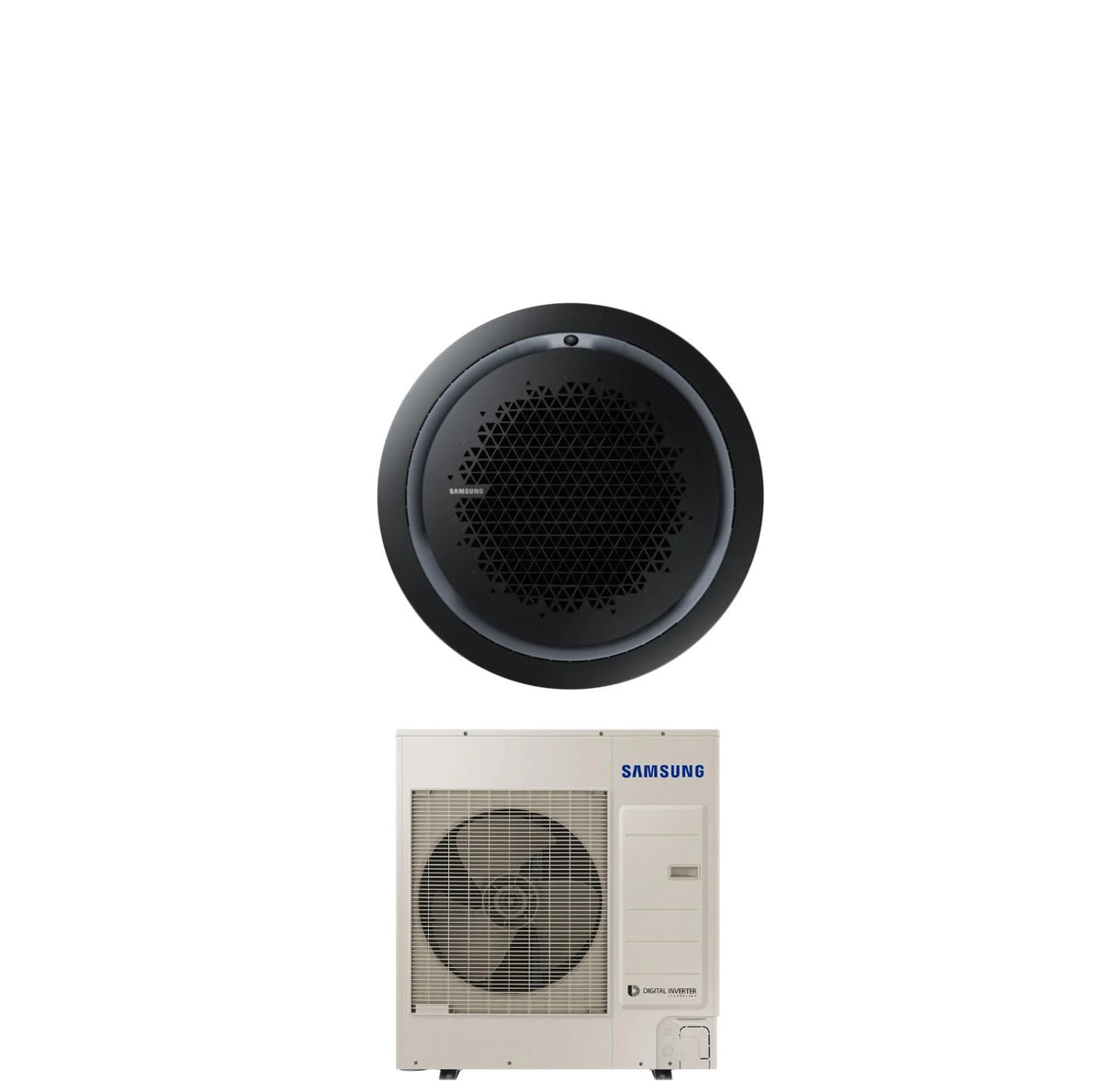

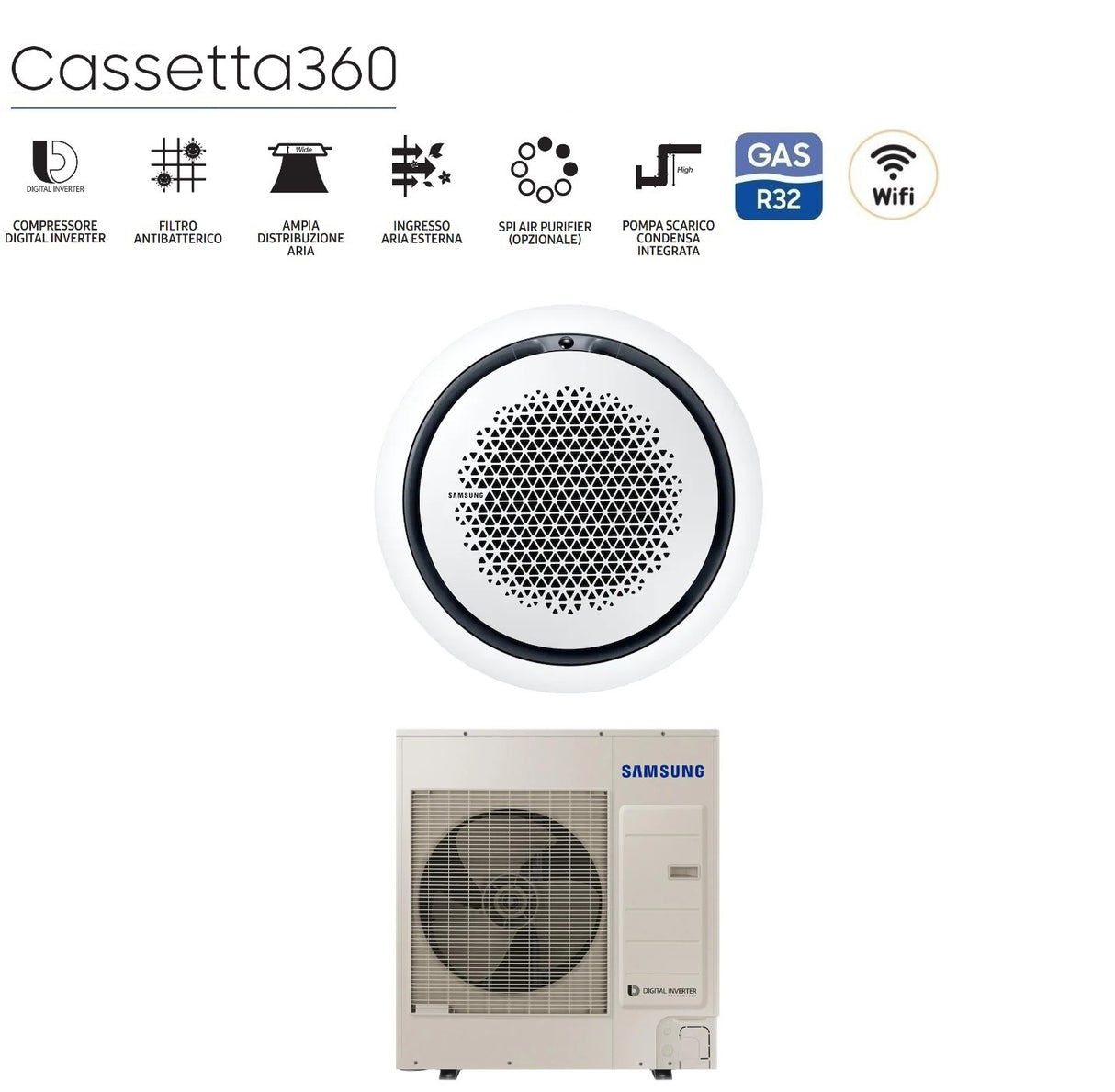

  • PC4NUNMAN white 360° circular grille

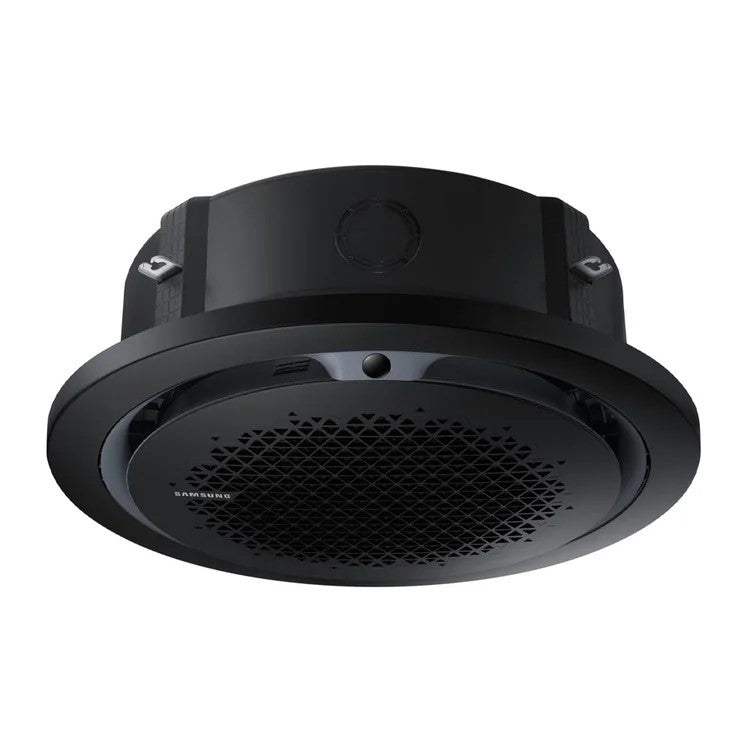

  • PC4NBNMAN black 360° circular grille

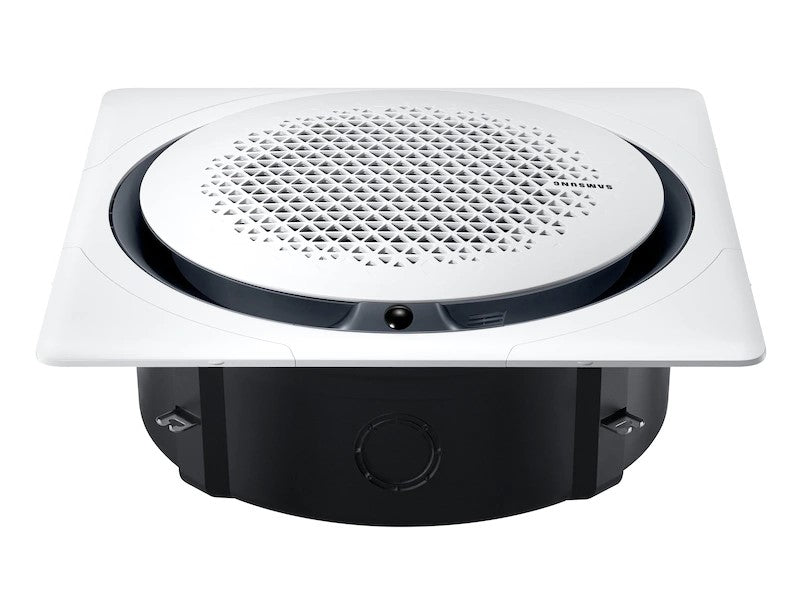

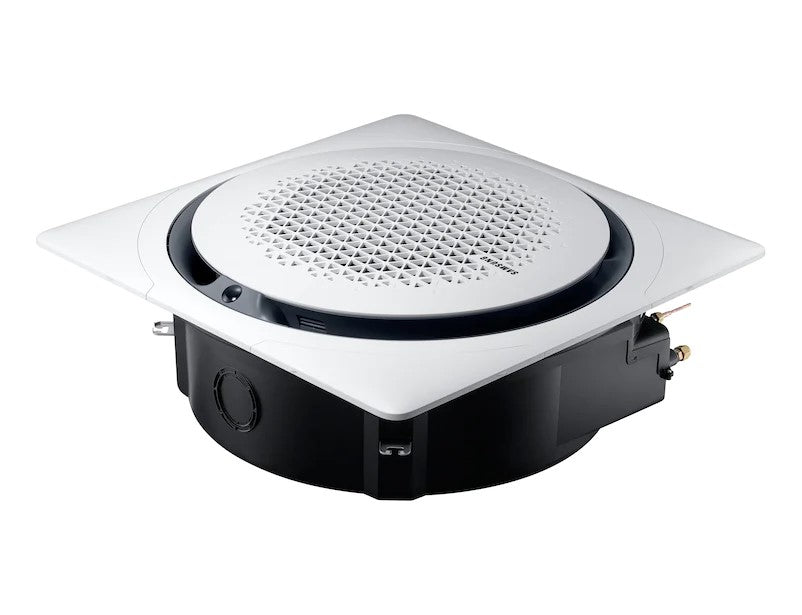

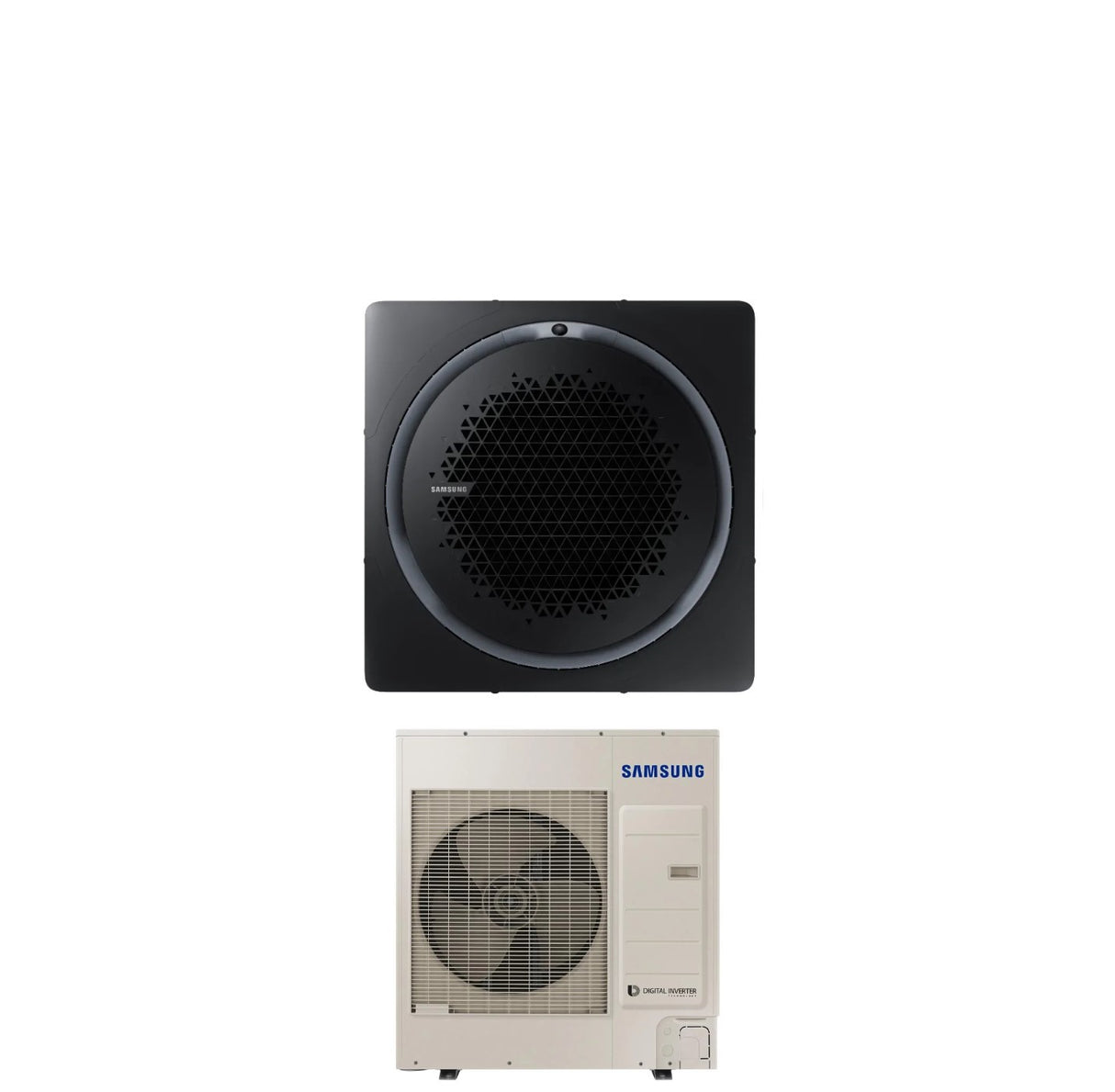

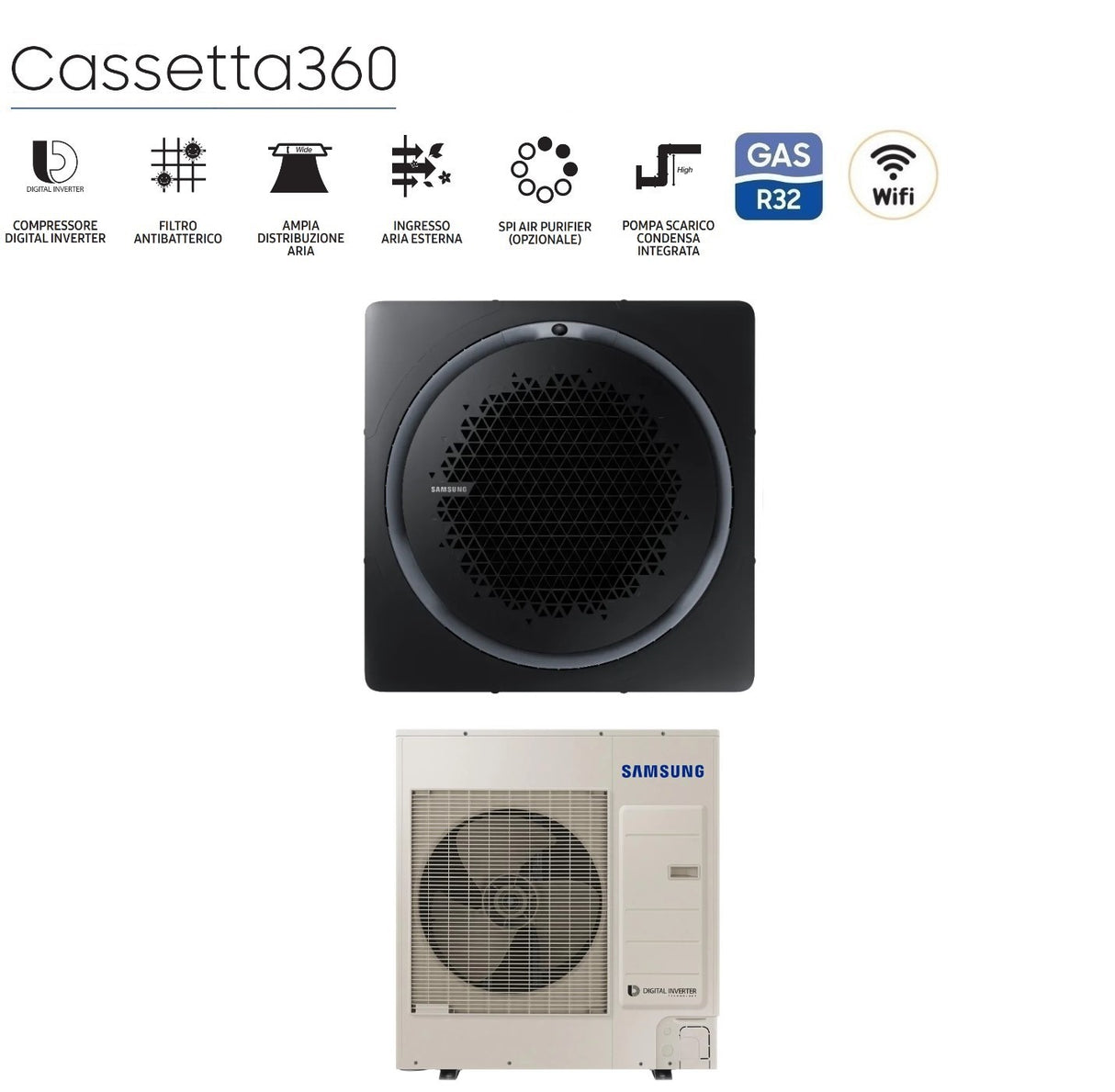

  • PC4NUDMAN white 360° square grille
  • PC4NBDMAN black 360° square grille

Pannelli Circolari

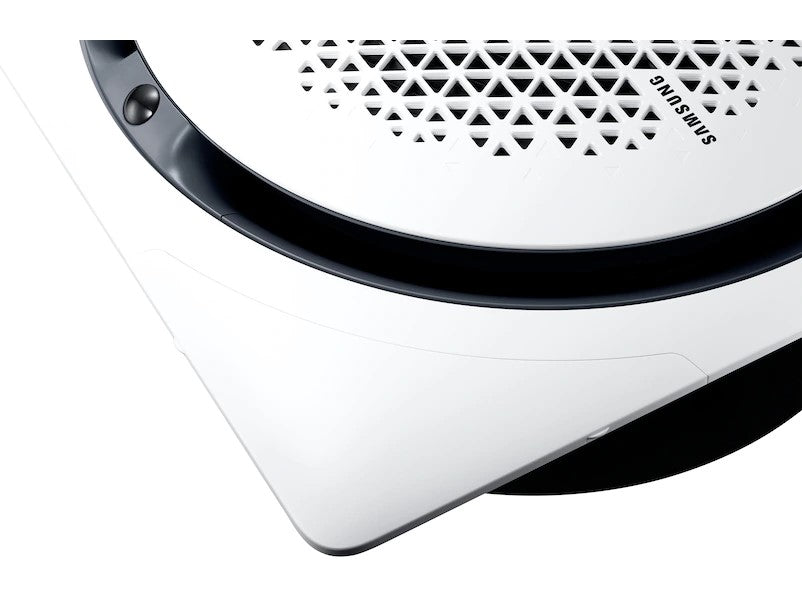

Pannello Quadrato


Samsung 360° Cassette Comfort with Style


Elegant design

Innovative, elegant, perfect even for the most sophisticated contexts. The Samsung Cassette 360 ​​is the internal unit designed for better air conditioning in terms of performance and comfort. Optimal air distribution thanks to the 360° flow.

Comfort con Stile


Elegant and innovative The circular design that integrates perfectly into any place

Elegante e innovativa.jpg

Thanks to its versatility, the innovative circular design adapts perfectly to different types of furnishings. The modern and minimalist style ensures an elegant appearance, while the circular shapes stand out for their pleasantness. Suitable for museum areas, restaurants, showrooms and commercial spaces where high architectural standards are required.

Thanks to its circular, elegant and innovative design, the Cassetta 360 guarantees uniform cooling of the entire room. The integrated LED display, also circular, is equipped with intuitive and clearly visible icons to set and manage the air flow


Better airflow control

The presence of fins or diffusers in general constitutes a loss of air load for the unit's fan; the configuration of the 360° cassette allows these losses to be reduced to a minimum by making full use of the air flow supplied by the fan.

Better Control.jpg


Uniform air circulation and cooling at every point

Unlike 4-way cassette air conditioners that generate areas with uneven air flow, where the coolness does not reach, the circular vent produces fresh air in all directions so that the same temperature is present in every corner of the room

Circolazione Aria


Goodbye annoying cold, welcome pleasant freshness

The deflector-free design delicately distributes fresh air within the room, pleasantly refreshing the environment without producing the typical cold sensation caused by air conditioners . With no baffles blocking the flow, the unit produces 25% more air* and spreads it even more effectively

Fresco Gradevole


The circular design that integrates perfectly into any place

Thanks to its versatility, the innovative circular design adapts perfectly to different types of furnishings. The modern and minimalist style ensures an elegant appearance, while the circular shapes stand out for their pleasantness

Design Circolare


Multiple ways of air diffusion

The innovative booster fan allows the air to be expelled at a much smaller angle: creating a low pressure area around the vent so that the fresh air comes out parallel to the ceiling, spreading over a larger surface area

Diffusione Aria


Simpler and more intuitive management

Manage the unit's performance in an absolutely intuitive way and observe the direction of the air. The wireless remote control's* button and jog shuttle wheel offer a fun way to adjust the airflow, while the circular LED screen lets you see the direction of the airflow

Gestione Semplice

Plus product

  • 360° air delivery without distribution fins (Coanda Effect)

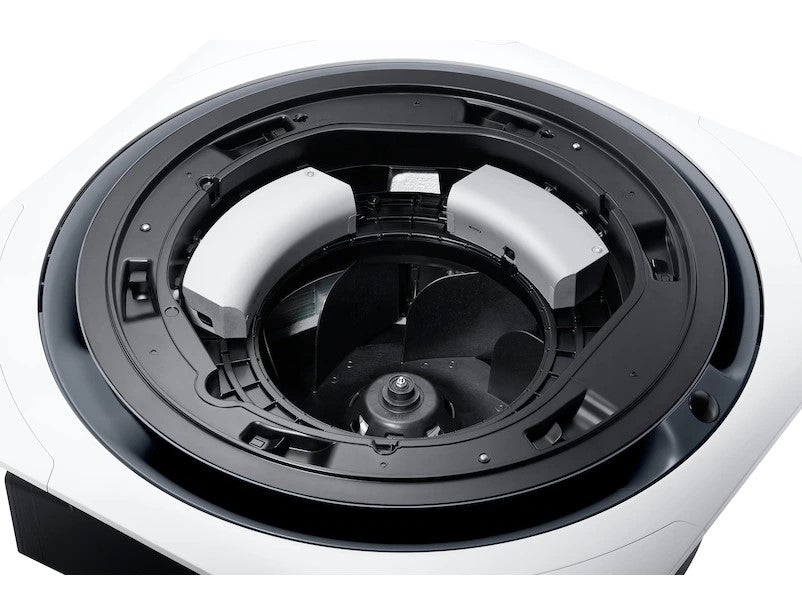

  • Fan with inverter motor
  • No load loss
  • Preparation for external air inlet
  • Built-in condensate drain pump (750 mmH 2 O)
  • Antibacterial filter included
  • Communication with "NASA" protocol

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 120.0 kg
  • classe energetica raffreddamento: A+
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Samsung
  • metri quadri : 130 - 160 m2
  • modello: AC120RN4PKG/EU
  • potenza btu: 42000
