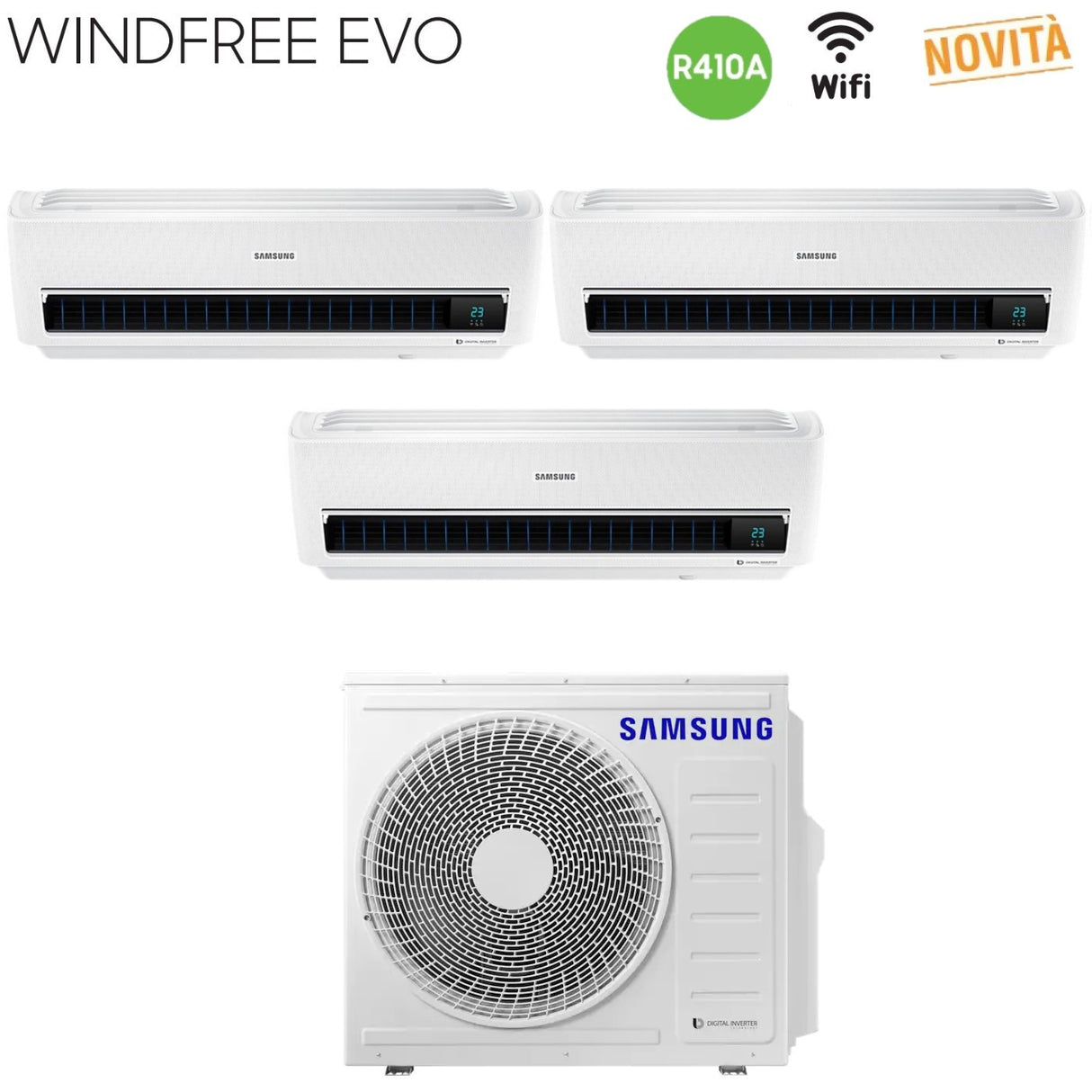

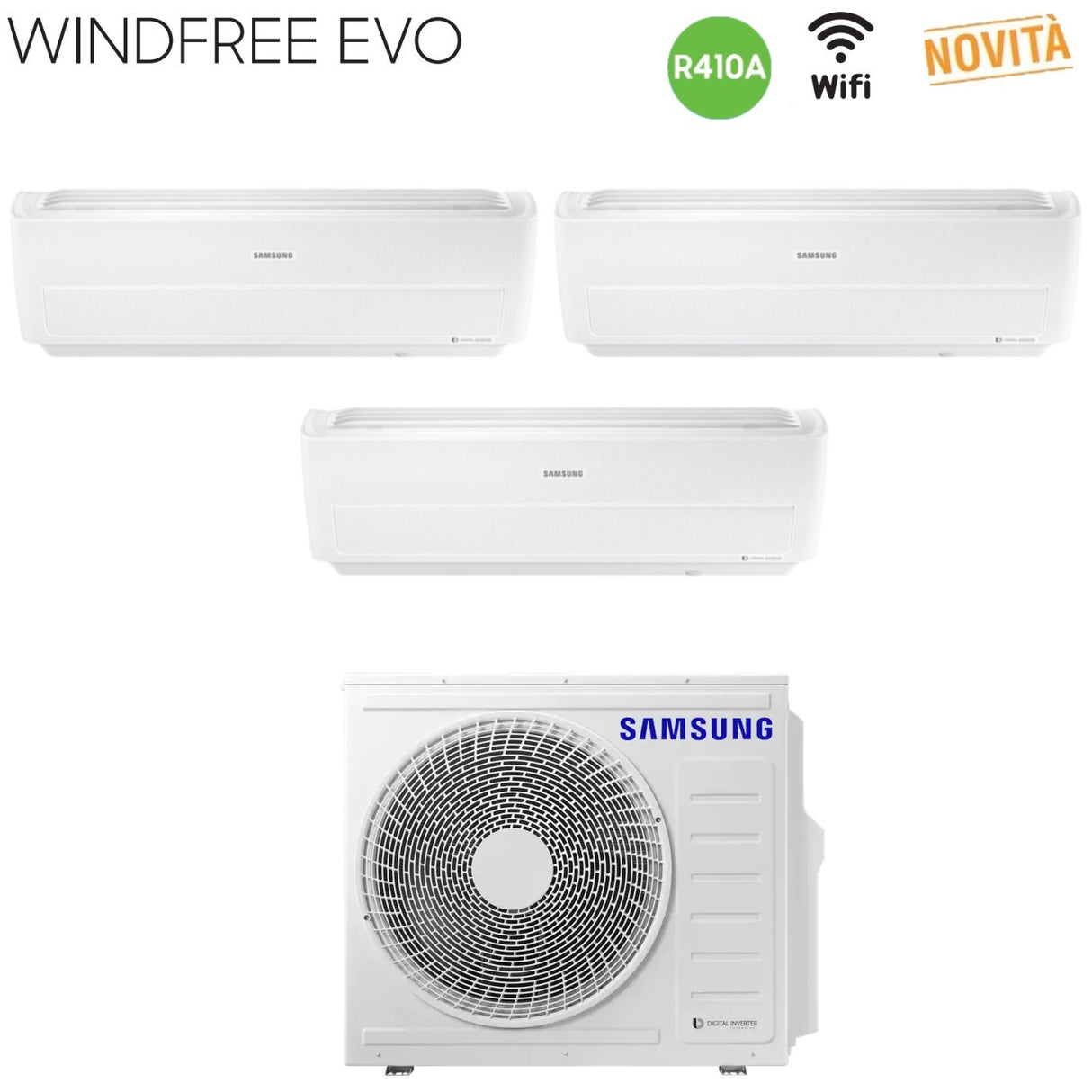

Samsung Trial Split Inverter Air Conditioner WINDFREE EVO 7+9+12 series with AJ068MCJ3EH R-410 Integrated Wi-Fi 7000+9000+12000 - New 2019

Technical features

1) Model

• Windfree EVO series
• Indoor unit Product Code: 1 x AR07RXPXBWKNEU
• Power 7000 btu
• UI dimensions (HxWxD) mm 828x267x265

2) Model

• Windfree EVO series
• Indoor unit Product Code: 1 x AR09RXPXBWKNEU
• Power 9000 btu
• UI dimensions (HxWxD) mm 828x267x265

3) Model

• Windfree EVO series
• Indoor unit Product Code: 1 x AR12RXPXBWKNEU
• Power 12000 btu
• UI dimensions (HxWxD) mm 828x267x265

OUTDOOR UNIT

Model:

• Catalog code: AJ068MCJ3EH/EU
• Gas: R-410a
• Max combinable internal units: 3
• Nominal Capacity (Cooling/Heating) kW: 6.8/8.0
• Max External Unit Sound Pressure (dB(A)): 48/49
• Sound power (Max) dB(A): 64
• Cooling/Heating operating range (°C): -5°~46°/-15°~24°

Electrical data:

• Power (V/Hz/Φ): 220~240/50/1

Dimensions:

• External Unit WxHxD (mm): 880x793x310; 56 kg
• Liquid/Gas connection pipes Ømm (inch) 3x6.35 (1/4”) - 2x9.52 (3/8”) + 2x12.70 (1/2”)
• Pipe length (max per unit): 20 m
• Piping length (min per unit): 3 m
• Max internal-external unit height difference: 15 m
• Max internal-internal unit height difference: 7.5 m

WINDFREE EVO

Refreshes quickly without direct air jets

The new WindFree air distribution system is the only one that transforms the powerful and direct air flow, often the cause of muscle aches and colds, into an enveloping coolness.

Goodbye annoying jets of air, just the pleasure of the climate you desire

PHASE 1 THEY REACH THE TEMPERATURE FAST THANKS TO TRIANGLE DESIGN

By starting the 2 Step Cooling mode, simply select the temperature and the air conditioner will automatically set the maximum power, using the large central distribution vent to quickly reach the goal.

PHASE 2 MAINTAIN THE TEMPERATURE WITH THE COMFORT OF WINDFREE

Once the set temperature has been reached, the air conditioner reduces power, closes the central distribution vent and uses the small holes on the front of the chassis to spread the fresh air evenly and maintain the desired temperature without causing unpleasant chills.

21000 Microholes

On the front of the air conditioner there are 21,000 micro-holes from which fresh air comes out uniformly.

The freshness you desire without any hassle

WindFree is ideal for maintaining the desired temperature while avoiding the classic inconveniences linked to the use of air conditioning.

Dehumidification function

The dehumidification function allows you to eliminate humidity from rooms, creating a pleasant atmosphere.

Smart control

The practical functionality of the Samsung Smart Home App allows you to activate the air conditioner even when you are not at home to create the ideal climate to best enjoy moments of relaxation.

Significant savings

Wind Free air conditioners, thanks to their characteristics, allow you to reduce energy consumption by 70%, consequently reducing costs.

Digital Inverter

Depending on needs, the compressor independently regulates its power, reducing energy waste.

Triangle Design

Thanks to the innovative triangular structure, the cooling of the air is 38% faster, guaranteeing maximum comfort even faster. Thanks to the larger intake and delivery vents and the more powerful air flow, guaranteed by a larger fan with a special shape, the air conditioner allows you to quickly cool the room.

NOVELTY

• The WindFree system, thanks to 21,000 micro-holes located on the front surface of the air conditioner, allows for a more uniform and delicate diffusion of cool air without direct air jets.
• The exclusive Smart Control technology allows you to manage, via an app that can be installed on a smartphone or PC, the main functions of the air conditioner even when you are away from home.
• The noise level of just 19 db(A) is made possible by the use of advanced technologies and an internal unit designed to reduce any type of vibration or noise to a minimum.

PURIFICATION

• SPi AIR PURIFIER The innovative technology produces active hydrogen which, together with oxygen ions, neutralizes harmful particles that cause allergies and respiratory problems, guaranteeing always pure and healthy air.
• The Easy Filter of Samsung air conditioners is located on the outside, on the top. So it's easier to take out, clean and put back without having to open any covers or pull hard to detach it.

SAVINGS

• The Digital Inverter compressor modulates power based on actual needs, significantly reducing energy waste compared to traditional compressors.
• The new and exclusive 8-Pole Inverter ensures more effective and efficient operation with less vibrations and noise, cooling rooms more quickly and also reducing consumption.
• The innovative Twin Rotary BLDC compressor, equipped with two rotors, guarantees better balance, vibration reduction, greater silence, high yields and energy savings.
• The practical Personal Use mode is ideal for air conditioning a single area, with significant energy and economic savings.

DESIGN

• The triangular design allows for a larger fan, a wider intake grille and a larger delivery surface. The environment is cooled more quickly and uniformly.
• The elegant and bright digital display, visible only when the air conditioner is on, reveals the temperature of the room in which the internal unit is installed.

COMFORT

• The air conditioner works at maximum power to quickly reach the desired temperature. Then direct the fins upwards to keep them as comfortable as possible.
• Auto Change Over automatically selects the operating mode (cooling or heating) required to maintain the set temperature.
• Just press the appropriate button and the special fins distribute the air flow evenly and quickly in the desired direction.
• The function regulates the room temperature by reproducing the body temperature curve during the night hours, thus ensuring a more comfortable rest.
• The dehumidification function allows you to eliminate humidity from rooms, creating a pleasant atmosphere.
• The function, which starts automatically once the air conditioner is turned off, eliminates humidity in the internal unit, preventing the proliferation of mould, bacteria and bad smells.

• peso: 75.0 kg
• marca: Samsung
• modello: Evo 7+9+12 R410
