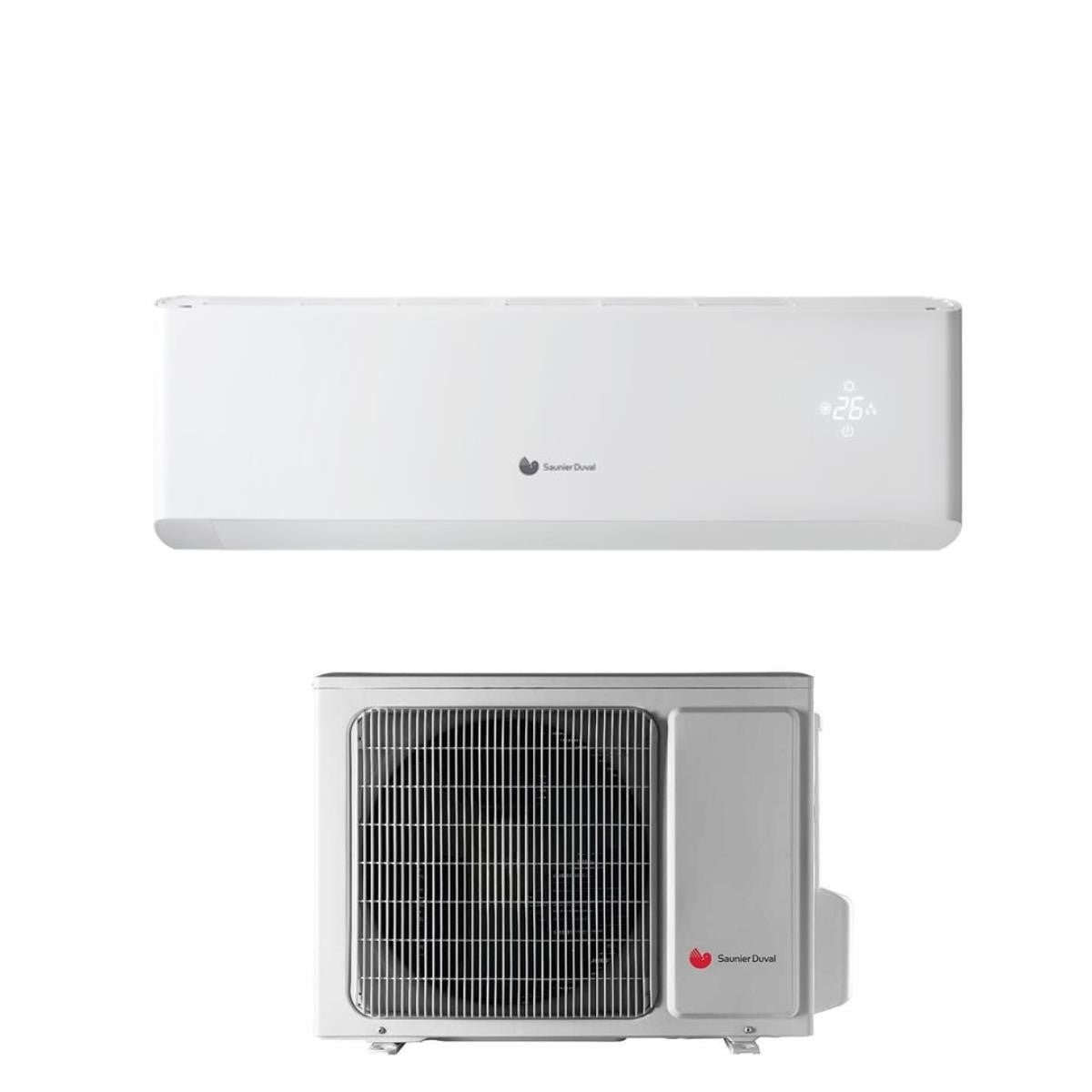

Hermann Saunier Duval Inverter Air Conditioner TOP COMFORT series VivAir 12000 BTU SDH20-035 R-32 Class A+++

Technical features

Model:

• Monosplit code: SDH 20-035 NW
• Indoor unit catalog code: SDH 20-035 NWI
• Outdoor unit catalog code: SDH 20-035 NWO
• Type: DC Inverter R-32
• Power (BTU): 12000

Energy efficiency:

• SEER (W/W): 8.5
• SCOP (W/W): 4.4
• Seasonal Energy Efficiency Class (Cooling): A+++
• Seasonal Energy Efficiency Class (Heating): A+

Performance:

• Cooling power: 3.5 kW
• Heating power: 3.81 kW
• Air flow (Turbo/H/M/L): m3/h 660/590/490/390
• Sound pressure IU* (Turbo/H/M/L): dB(A) 43/39/35/25
• Sound pressure EU*: dB(A) 53
• Limit Temp.:
• - cooling (min-max): °C -15 ? 48
• - heating (min-max): °C -15 ? 24

Electrical data:

• Power (V/Hz/Φ): 230/50/1
• Cooling electrical consumption: 0.95 kW
• Heating electrical consumption: 0.98 kW

Dimensions:

• Internal Unit (HxLxD): 290x865x210 mm; 11kg
• External Unit (HxLxD): 596x848x320 mm; 33.5kg

General characteristics

VivAir Top Comfort SDH 20 is the new range of air conditioners that use the R32 refrigerant gas which offers many advantages such as greater energy efficiency , a lower impact on the climate (Global Warming Potential - GWP= 675) and a lower quantity of charge required compared to air conditioners that use R410 A gas.

Thanks to the use of the new R32 gas, the new Hermann Saunier Duval air conditioners are already in line with achieving the objectives established by the new regulation on fluorinated gases issued by the EU in 2015, which prohibits the use of refrigerants with a GWP greater than 750 in single-split air conditioners containing a refrigerant charge below 3 kg.

VivAir Top Comfort SDH 20 is available in 4 monosplit models with cooling powers from 2.7 kW to 7 kW. Thanks to the new R32 refrigerant gas, 3D inverter technology and the electronic expansion valve it is possible to reach an energy class in cooling up to A+++ (SEER up to 8.5) and in heating up to A++ (SCOP up to 4.6) .

VivAir Top Comfort SDH 20 offers various functions to improve the comfort of your home: I Feel function to offer the desired temperature where the remote control is located, Turbo function to reach the desired temperature in the shortest possible time, regulation of the flow direction of air vertically and horizontally, Quiet function to minimize noise.

VivAir Top Comfort SDH 20 is also characterized by the use of an active ionizer device that purifies the air in the room by creating negative ions that neutralize positively charged particles, thus keeping the environment fresh, free of odors, bacteria and mold spores . The X-Fan function also removes humidity from the internal exchanger, keeping it dry and preventing the formation of rust and bacteria.

All available functions can be easily set from the supplied remote control, which is easy to use and features a large display to indicate the current operating status.

Advantages

Efficiency : already in line with the energy standards required for 2014, the new VivAIRs have an energy label classified with a class of up to A+++.

Silence : air extraction is significantly improved thanks to the new shaped fan of the external unit. The result is high efficiency with lower noise emission.

Purified air and maximum comfort

Modern design with integrated display and ergonomic remote control with large intuitive display

Functions

• Monosplit DC Inverter
• New R32 gas for maximum efficiency and environmental protection
• Vertical - Horizontal Swing function to choose the angle of the air distribution
• I Feel function for maximum comfort (room temperature sensor on the remote control)
• Wide operating range (-15 °C +48 °C)
• Visual control of the set temperature with backlit LCD display
• Sleep function (optimizes night-time operation)
• Auto Clean X Fan (indoor unit battery always dry)

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: HERMANN SAUNIER DUVAL
• metri quadri : 25-40 m2
• modello: SDH20-035
• potenza btu: 12000
• superficie riscaldabile mq: 35
