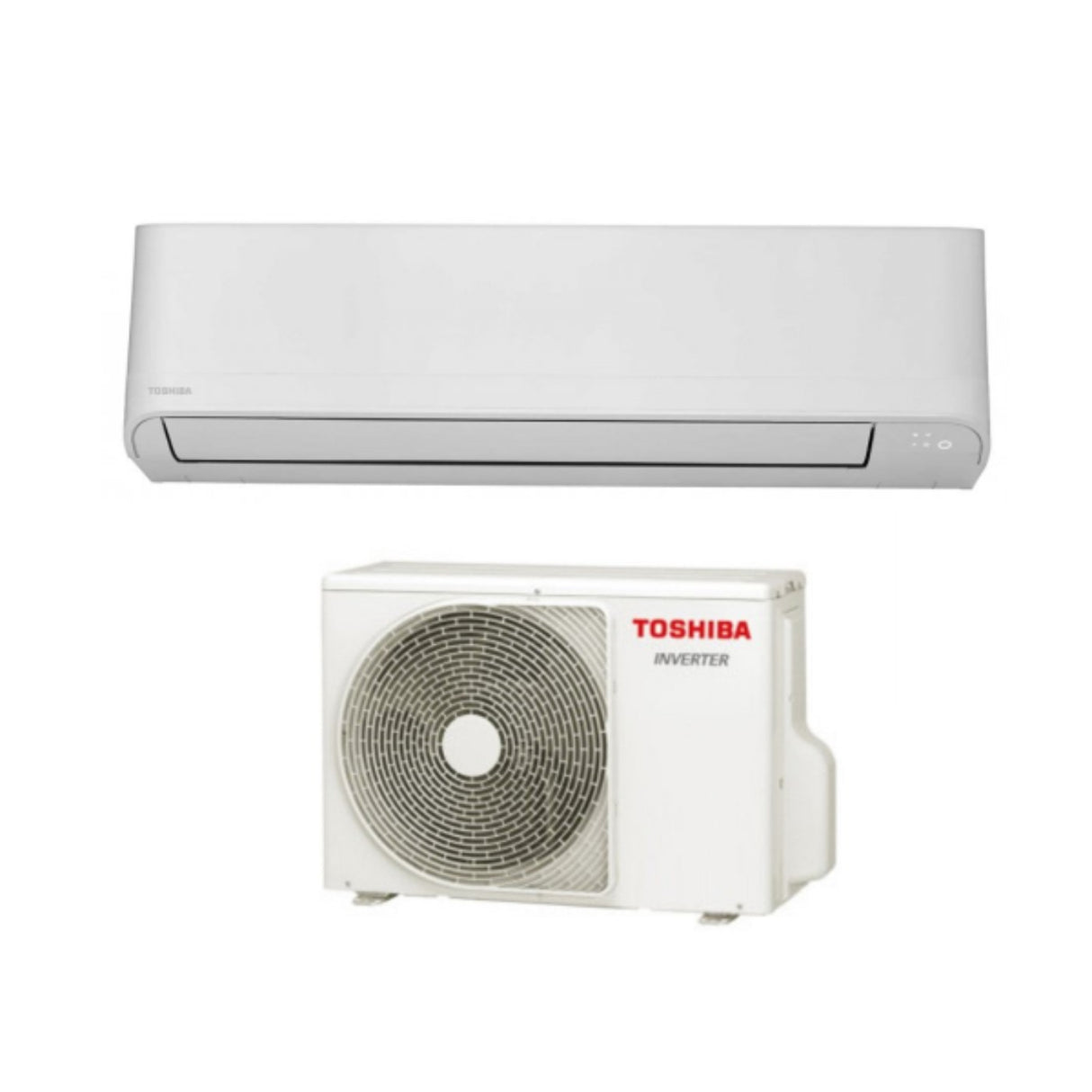

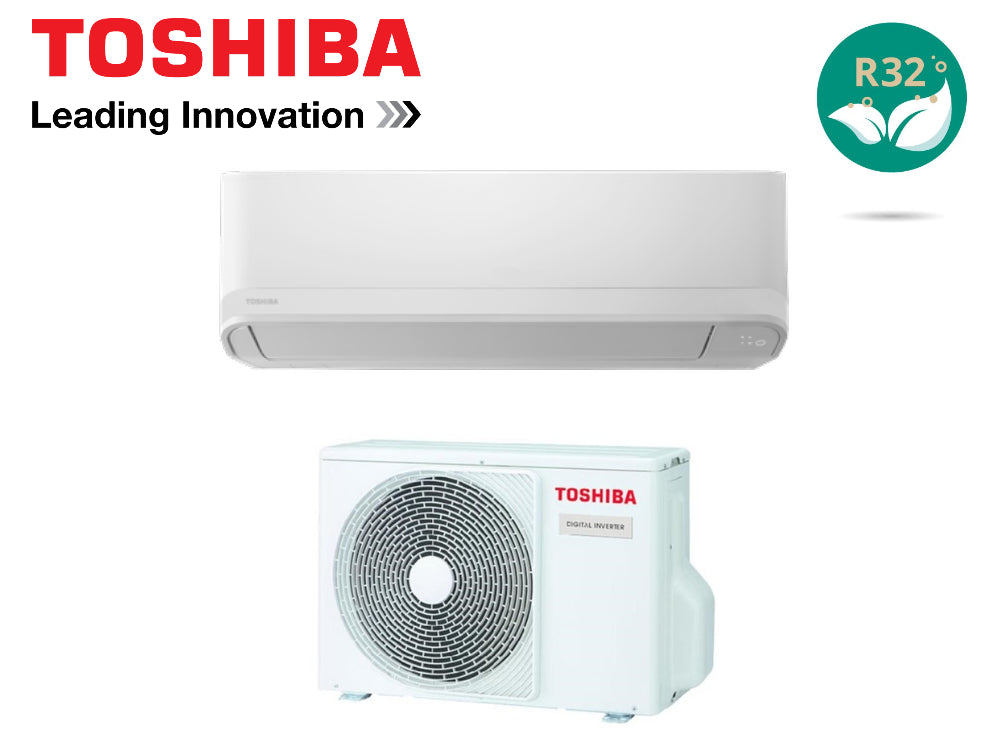

Toshiba Inverter Air Conditioner SEIYA series 16000 Btu RAS-B16J2KVG-E R-32 Wi-Fi Optional - News 2019

Technical features

Model :

• Indoor Unit Code: RAS-B16J2KVG-E
• Outdoor Unit Code: RAS-16J2AVG-E
• Wi-Fi Optional

Performance

• Nominal Capacity: 4.20 kW
• Min - Max capacity: 1.20 / 4.70 kW
• Absorbed Power (Min - Nominal - Max): 0.32/ 1.40 / 1.80 kW
• SEER: 6.10W
• Energy Efficiency Class: A++
• SCOP: 4.00 W
• Energy Efficiency Class: A+
• Indoor Unit sound pressure level: 22/25/43
• Indoor Unit Sound Power Level: 58/58
• External Unit sound pressure level: 49/41
• External Unit sound power level: 64/66
• Refrigerant gas: R-32
• Cooling operation range: -15 ~ 46
• Heating operation range: -15 ~ 24
• Pipe length (Min - Max): 2-20
• Maximum height difference: 12.00 m
• Power ( V-ph-Hz): 220-240/1/50

Dimensions and weight :

• Internal Unit (HxWxD): 293 x 798 x 230 mm
• Weight: 10.00 kg
• External Unit (HxWxD): 550 x 780 x 290 mm
• Weight: 30.00 kg

General characteristics

Natur32 wall systems for residential applications

Seiya is the solution designed by Toshiba for all those looking for good performance and modern design, with low environmental impact.

The range is made up of 7 sizes, from 1.5 kW to 6.5 kW, designed to cool and heat any type of environment, from the smallest ones (size 5) to the largest ones (size 24). It is able to guarantee maximum comfort all year round, thanks to the wide operating range: from -15°C in heating up to +46°C in cooling.

Seiya's external unit has been designed to minimize noise caused by vibration, thanks to the inverter control board and the addition of two bearings.

The battery is equipped with a special protective coating, Magic Coil, to prevent dust from settling; this, thanks to the Self-Cleaning function, ensures long-lasting performance and high air quality in the environment, as well as limiting the spread of bad odors.

Seiya's functions are designed to allow the user to achieve ideal comfort and to achieve energy savings:

• Hi Power function: to speed up the cooling and heating of the room
• ECO function: to automatically adjust the room temperature setting, so as to save energy
• FAN function: to set the fan speed, choosing between AUTO or 5 different speed levels
• Quiet function: to increase the silence of the internal unit
• Silent function for outdoor unit: to reduce the sound power level of the outdoor unit
• On Demand Defrost function: to defrost the outdoor unit in extreme climatic conditions

Seiya indoor units, from 1.5 kW to 4.2 kW, are available both for combinations in monosplit systems and in multisplit systems.

Even when you are away from home, you can remotely control your air conditioner, thanks to the Toshiba Home AC Control app, available on Google Play and AppStore. Thanks to this app, it will be like having the Seiya remote control on your smartphone and tablet.

Comfort within reach of smartphones and tablets. Managing your air conditioner from outside your home has never been easier.

Toshiba Home AC Control is the app designed for those who own Toshiba residential systems.

Thanks to its user-friendly graphics, simple and intuitive to use, controlling and managing your air conditioning even when you are away from home has never been easier.

The app allows you to manage not only the basic functions, such as on/off and temperature setting, but also to take advantage of all those functions that make your Toshiba air conditioner the best ally for comfort.

Using your smartphone and tablet, it will be like having the air conditioning remote control always with you.

Each air conditioner can control up to five family members, while a single user can control up to 5 systems.

Another great advantage of the Toshiba app is being able to organize the air conditioning systems into 3 groups/zones, grouping them, for example, into the "day" area, the "sleeping" area and the "children's" area. In this way, it is possible to manage multiple air conditioners as if they were one.

General functions:

• On / Off air conditioning
• Operating mode (Auto, Heating, Cooling, Dehumidification, Fan Only)
• Temperature setting
• Fan speed and airflow
• Deflector setting
• Weekly programming (single system or group or all air conditioners)
• Automatic app update
• App available in 5 languages
• Wireless adapter installation manual
• Child lock / parental control
• Timer
• "Basic" air conditioner functions:
• Quiet mode
• Air flow modulation
• Deflector position settings

Special functions:

• Group settings
• Group control (on/off, temperature setting, operating mode, weekly group programming...)
• Detection of the internal and external temperature of the environment
• Error reporting
• "Special" functions, specific according to the Toshiba air conditioner model:
• ECO function
• Power Select function
• Hi Power function
• Anti-freeze function / 8°C
• Quiet mode (outdoor unit)
• Fireplace function
• Pure function (plasma purifier)
• Floor function (available on Console system)

Main features

• Range consisting of 7 sizes - from 1.5 kW to 6.5 kW
• High performance with SEER up to 6.30 (size 18) and SCOP up to 4.00 (all sizes)
• Energy class A++/A+ in cooling and heating for all sizes
• DC Rotary Compressors
• B-Code indoor units for monosplit and multisplit systems (sizes 05, 07, 10, 13 and 16)
• Silent: up to 19 dB(A)
• Modern design with LED indicators
• Magic Coil and Self-Cleaning Function
• Thermal Account and tax deduction of 65% and 50%
• Wi-Fi remote control via App (optional - accessory sold separately)

• peso: 50.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A++
• gas: R-32
• marca: Toshiba
• metri quadri : 40-50 m2
• modello: RAS-B16J2KVG
• potenza btu: 15000
