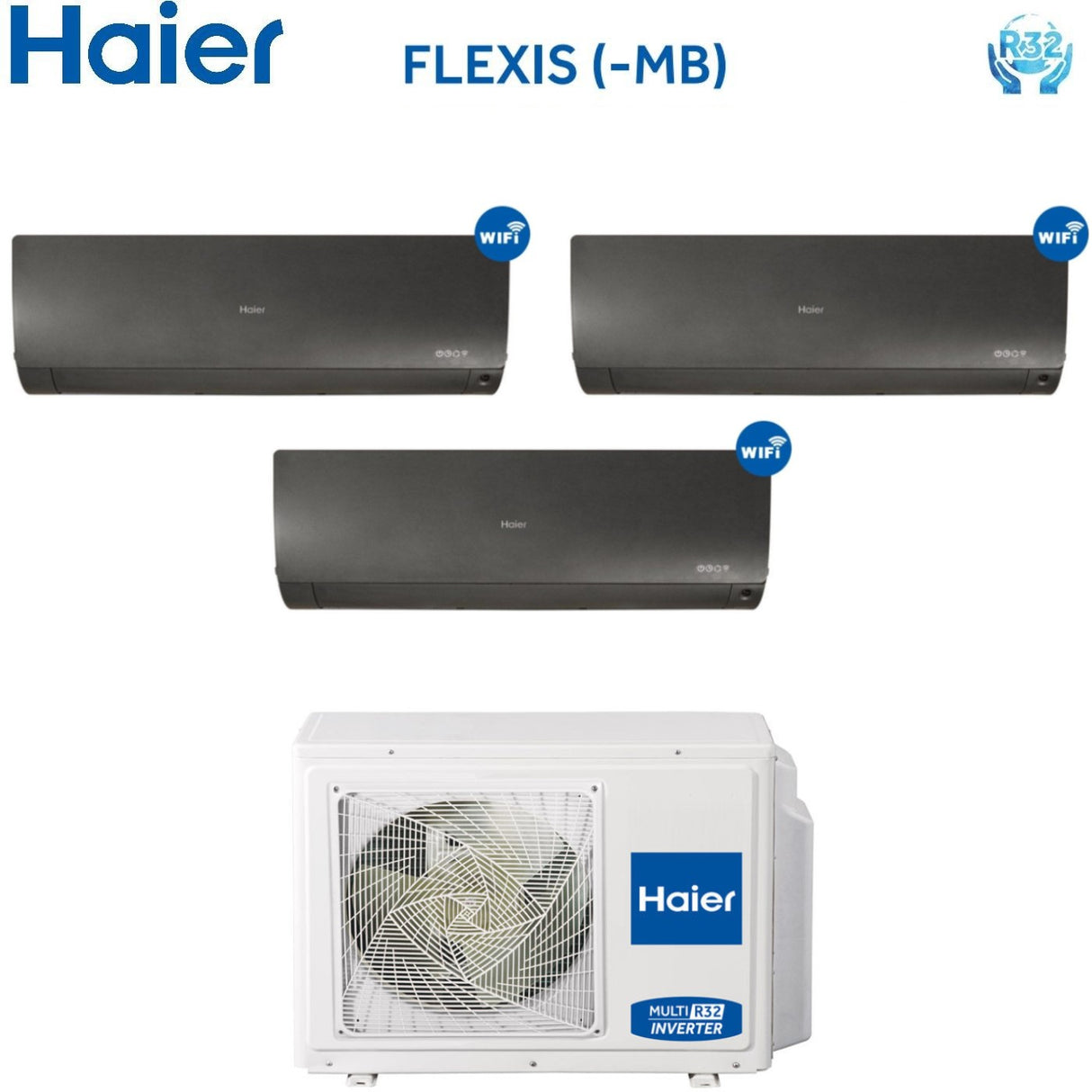

HAIER Trial Split Inverter Air Conditioning FLEXIS Black / Black series 9000+9000+12000 btu with 3U70S2SR2FA R-32 Wi-Fi 9+9+12 - NEW

Technical features

Internal Unit

External unit

Model:

• Catalog code: 3U70S2SR2FA
• Max internal units: 3

Energy efficiency

• COOL energy class. SEER 7.5 (A++)
• HEATING energy class. SCOP 4.2 (A+)
• Annual energy consumption RAFF kWh/a 332
• Annual RISC energy consumption kWh/a 2012

Performance

• Nom COOL output power (min~max) kW 7.0 (2.4~7.6)
• Nom RISC power output (min~max) kW 7.6 (2.9-8.5)
• Power absorbed COOL. nom kW 1.75
• Power absorbed HEATING. nom kW 1.80
• Sound power dB(A) 66
• Sound pressure dB(A) 53
• Volume of air treated 3000 m3h
• Power supply 230-1-50 V-Ph-Hz

Hydraulic data

• R32 refrigerant
• Liquid/gas pipe Ø mm 3x6.35 / 3x9.52
• Total length of pipes max 60 m
• Max single EU-UI line piping length 25 m
• Max height difference UI - UE m 15
• Max height difference IU - IU m 7.5
• Functional limits:
  - COOL. min~max °C -10÷46°C
  - HEATING min~max °C -15÷24°C

Dimensions

• Dimensions WxDxH mm 890x340x700; 54 kg

FLEXIS

The new Haier FLEXIS indoor unit is available in Matt White and Matt Black , i.e. matt white and matt anthracite grey. It supports R32 gas which currently represents the best in terms of efficiency and reduced environmental impact on the greenhouse effect, it is easy to use thanks to a complete and intuitive remote control, and a refined and pleasant aesthetic which thanks to the matt color is very modern and integrates best into home environments.

The performance is top from all points of view and the use of direct current fans combined with design optimization can reduce noise by up to 16d B(A ) , practically imperceptible to the human ear.

Haier FLEXIS is equipped with a double motion sensor with an angle of 120° and a reading up to 8m. distance, which ensures a comfortable air flow by detecting the presence of people in the environment according to your needs. In fact, the “follow” or “avoid” functions can be set.
The air deflectors are also adjustable by remote control both for the classic movement on the horizontal and vertical axis to direct the flow to the right or left as desired.

To the delight of the installer, Haier FLEXIS has been designed with criteria that facilitate assembly by reducing installation times and simplifying the steps to be taken for the hydraulic and electrical connections and was created as a high energy efficiency inverter heat pump and with all the characteristics necessary to take advantage of the tax breaks provided by the legislature for 2019.

Eco Sensor

Double motion sensor

Double motion sensor capable of covering an area of ​​120° (2 horizontal directions). Maximum detection distance 8m.

Silence

The silence level of the indoor unit is 19 dB(A)

The use of DC Inverter fans and design optimization decrease the noise level of the indoor units. With the Quiet setting you reach the level of only 19dB(A).

Easy installation

1. Easy installation of the mounting template Thanks to detailed instructions, the mounting template can be installed quickly and easily.

2. Easy clip Easier to install thanks to the additional support clip, which increases the working space.

3. Quick and easy repair of the electronic board and motor Allows removal and maintenance of the electronic board and motor without the need to dismantle the unit and evaporator.

4. More space for piping reduces installation time by increasing operating space for easy access to piping and electrical connection areas.

6. Removable bottom panel Allows the installer to connect pipes and cables with more working space

Wifi

Allows you to set the air conditioning remotely even during your absence

• Easy installations
• Eco Sensor
• 16 dB(A)
• Wi-Fi as standard
• Energy class in cooling: A+++
• Heat pump energy class: A++

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 75.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: HAIER
• modello: 9+9+12Flexis+3U70S2SR2FA BLACK
• potenza btu: 9000+9000+12000
• superficie riscaldabile mq: 25/25/35
