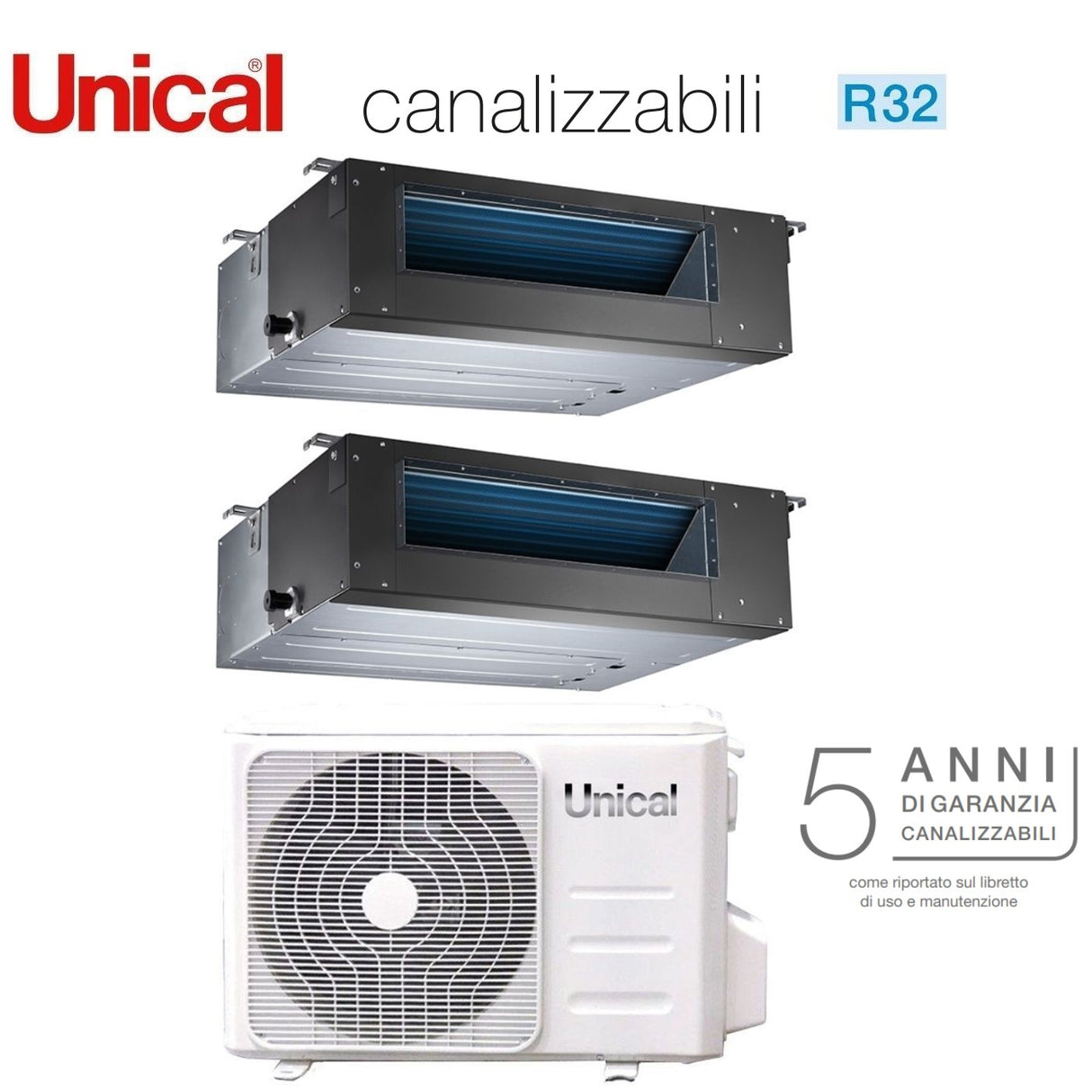

Unical Dual Split Inverter Ductable Air Conditioner 18+18 with KMX4 36HE R-32 18000+18000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Technical features

Indoor units:

Model:

External Unit:

Model:

• Indoor unit catalog code: KMX4 36HE (36190 Btu/h)
• Max number of internal units that can be connected: 4

Energy efficiency:

• SEER (W/W): 6.15
• SCOP (W/W): 4.0
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A+
• Annual cooling/heating consumption: 565/3226 kWh/a

Performance

• Nominal cooling power output: 10.60 kW
• Power absorbed in nominal cooling: 3.28 kW
• Nominal heating power output: 11.10 kW
• Power absorbed in nominal heating: 2.82 kW

Characteristics:

• Power (V/Hz/Φ): 230/50/1
• Refrigerant gas: R32
• Liquid/Gas pipe connections: 1/4”/ 3x3/8” + 1x1/2" cm
• Sound pressure: 63 dB(A)

Dimensions:

• External Unit Dimensions (LxHxD): 946 x 810 x 410 mm
• External Unit Weight: 69 Kg

MULTI Unical combinations

Example: System composed of 1 external unit and 4 internal units

---

Optimal comfort in every environment

Unical's MULTI systems allow you to reduce the overall dimensions of outdoor installation without having to give up the optimal comfort of the internal rooms to be air-conditioned. In fact, a wide range of external units can manage from 2 to 5 internal units of different types and power. If the sum of the power of the internal units exceeds that of the external unit, the system will automatically divide the total power between the various internal units. There are therefore many possible combinations with the MULTI range.

The outdoor units are available in five models with different powers: this allows for great system flexibility to satisfy every residential and commercial need. It is possible to install the internal unit with the power that best suits the size and shape of each room to be air conditioned.

Comfort in the environment is guaranteed by:

• DC Inverter technology: continuous progressive modulation allows the rotary compressor to adapt the power absorbed according to the number of internal units on request and according to the set temperature, obtaining an electricity saving of 20% compared to traditional systems.

• Heat pump even with low external temperatures , thanks to the variable speed external unit fan.

• Constant temperature in the room , thanks to the modulation of the compressor power which avoids annoying temperature oscillations classic of on/off systems.

• Thermo- assisted modulating expansion valves : they regulate the pressure of the refrigerant to always have the maximum yield from the refrigeration circuit depending on the working conditions of the entire system.

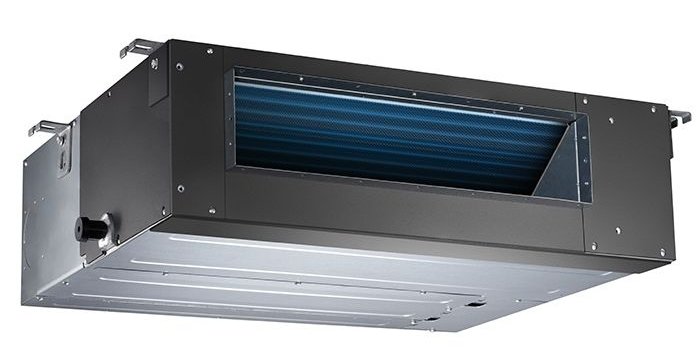

Ducted air conditioners

All equipped with wired control, they are intended for built-in installations in false ceilings. The internal unit is made of steel, adequately insulated to avoid heat loss and condensation and at the same time ensure adequate acoustic insulation. The fans of the internal units, adjustable to 4 speeds, provide a high prevalence. For the optimization and diversification of the air fl ows to be distributed, special "plenums" can be applied. Furthermore, the Internal Unit is supplied as standard with a pump to facilitate the disposal of condensation, facilitating installation in the false ceiling.

• peso: 55.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Unical
• metri quadri : 50/50
• modello: KMCN 18+18
• potenza btu: 18000+18000
• superficie riscaldabile mq: 50/50
