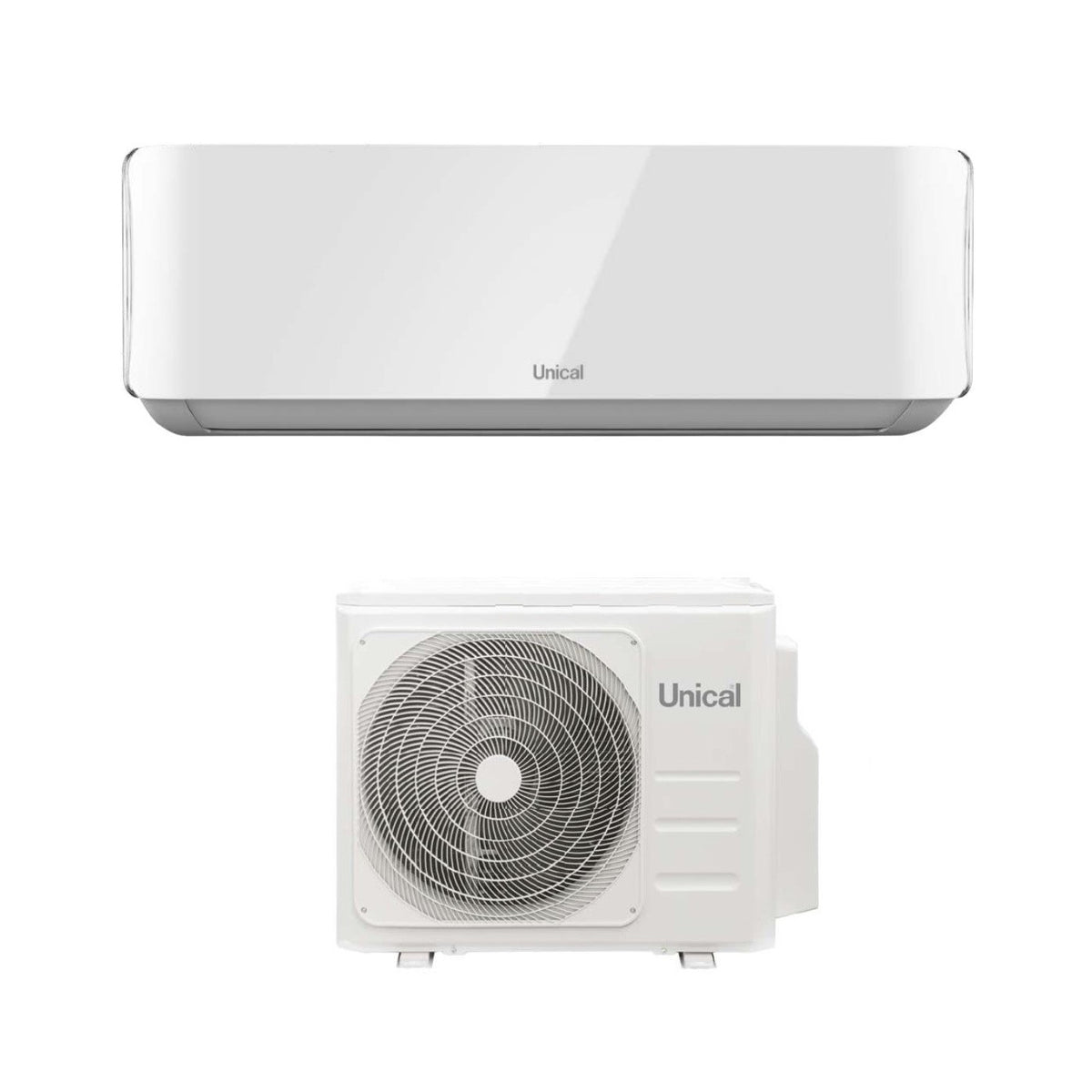

Unical Inverter Mono Split Air Conditioner AIR CRISTAL series 13000 Btu KMUN 13H R-32 Wi-Fi Optional

Technical features

Model:

• Indoor unit code: KMUN 13HI
• Outdoor unit code: KMUN 13HE
• Refrigerant: R32
• Technology: Inverter

Energy efficiency:

• Cooling Efficiency SEER: 7.0
• SCOP performance coefficient: 4.1
• Energy Efficiency Class (cooling): A++
• Energy Efficiency Class (heating): A+
• Annual energy consumption in cooling/heating: 175/922 KWh/A

Characteristics:

• Power (V/Hz/Φ): 230/50/1
• Refrigerant Pipes Liquid / Gas Line: mm(inch) 6.35/9.52(1/4"/3/8")

Dimensions and weight:

• Internal Unit (WxDxH): 802x297x189 mm; 8.2kg
• External Unit (WxDxH): 770x555x300 mm; 26.6 kg

air CRISTAL R32

Design and technology: a winning combination in the range of Unical airCRISTAL air conditioners, which use the new ecological gas R32.

Technological charm

The exclusive design of the internal unit given by the harmonious and rounded lines of the front body is enriched with an elegant transparent PMMA profile and an essential and discreet retractable "soft display". In this way airCRISTAL can be installed in harmony with any environment and furnishings, from the classic to the most modern.

The automatic oscillation of the horizontal and vertical deflectors creates the "3D effect " which guarantees better air distribution and optimal comfort in the room.

With " Full Inverter " technology, thanks to the controlled modulation of the compressor and fans, the following are obtained:

• Better seasonal performance and reduction in electricity costs
• Constant desired temperature in the room
• Reduction of defrost cycles, which causes greater consumption

Create comfort at a distance

Interacting with airCRISTAL even remotely: from today it is possible with your smartphone, a Wi-Fi connection and a simple optional key connected to the USB port of the climate control board.

With a simple and intuitive App, it is possible to set the operating modes of airCRISTAL, program switching on and off also via a daily and/or weekly timer, check operating consumption and the good operating status of the air conditioner. In this way airCRISTAL will always ensure maximum comfort in the environment in which it is installed, making it ready to provide a caress of well-being.

“Follow me” function

This is the exclusive airCRISTAL function that allows you to quickly reach the desired temperature by detecting the temperature in the room near the remote control. This guarantees 360° comfort throughout the entire environment

Series Features:

• Energy saving class A++
• Elegant PMMA profile
• “Soft” display
• Remote management via wifi (optional)
• DC “Inverter” system with continuous progressive modulation for greater seasonal energy savings and better comfort in the environment
• “Follow me” comfort function
• 6-speed fan with automatic selection
• Highly silent Twisted Torsion fan
• 3D effect: motorized movement of the deflectors for better air distribution
• “1 W (Watt)” function to eliminate energy waste in stand-by
• Electronic preventative protection system for various parts which is activated at every start-up
• Easy-to-use infrared remote control with liquid crystal display
• “Check” function to facilitate maintenance operations
• Emergency power button
• Autorestart
• Self-diagnosis
• Anti-mold “self cleaning” function, with automatic drying of the internal battery
• R32 gas refrigerant

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe efficienza energetica: A++
• gas: R-32
• marca: Unical
• modello: Air Cristal 13
• potenza btu: 13000
