Unical Trial Split Inverter Floor Air Conditioner 12+12+12 with KMX4 28HE R-32 12000+12000+12000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Technical features

Indoor units:

Model:

• Indoor unit catalog code: (x3) KMPS 12HI
• Nominal cooling capacity: 3.52 kW (12000 btu/h)
• Nominal thermal power: 4.41 kW (14000 btu/h)
• Air flow: 512 m ³ /h
• Sound pressure: 43 dB(A)
• Indoor unit dimensions (LxHxD): 700 x 600 x 210 mm
• Internal Unit Weight: 15 kg

External Unit:

Model:

• Indoor unit catalog code: KMX4 28HE (28030 Btu/h)
• Max number of internal units that can be connected: 4

Energy efficiency:

• SEER (W/W): 7.0
• SCOP (W/W): 4.0
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A+
• Annual cooling/heating consumption: 420/2275kWh/a

Performance

• Nominal cooling power output: 8.21kW
• Power absorbed in nominal cooling: 2.54kW
• Nominal heating power output: 8.90 kW
• Power absorbed in nominal heating: 2.22 kW

Characteristics:

• Power (V/Hz/Φ): 230/50/1
• Refrigerant gas: R32
• Liquid/Gas pipe connections: 1/4”/ 3x3/8” + 1x1/2" cm
• Sound pressure: 60 dB(A)

Dimensions:

• External Unit Dimensions (LxHxD): 946 x 810 x 410 mm
• External Unit Weight: 62 Kg

MULTI Unical combinations

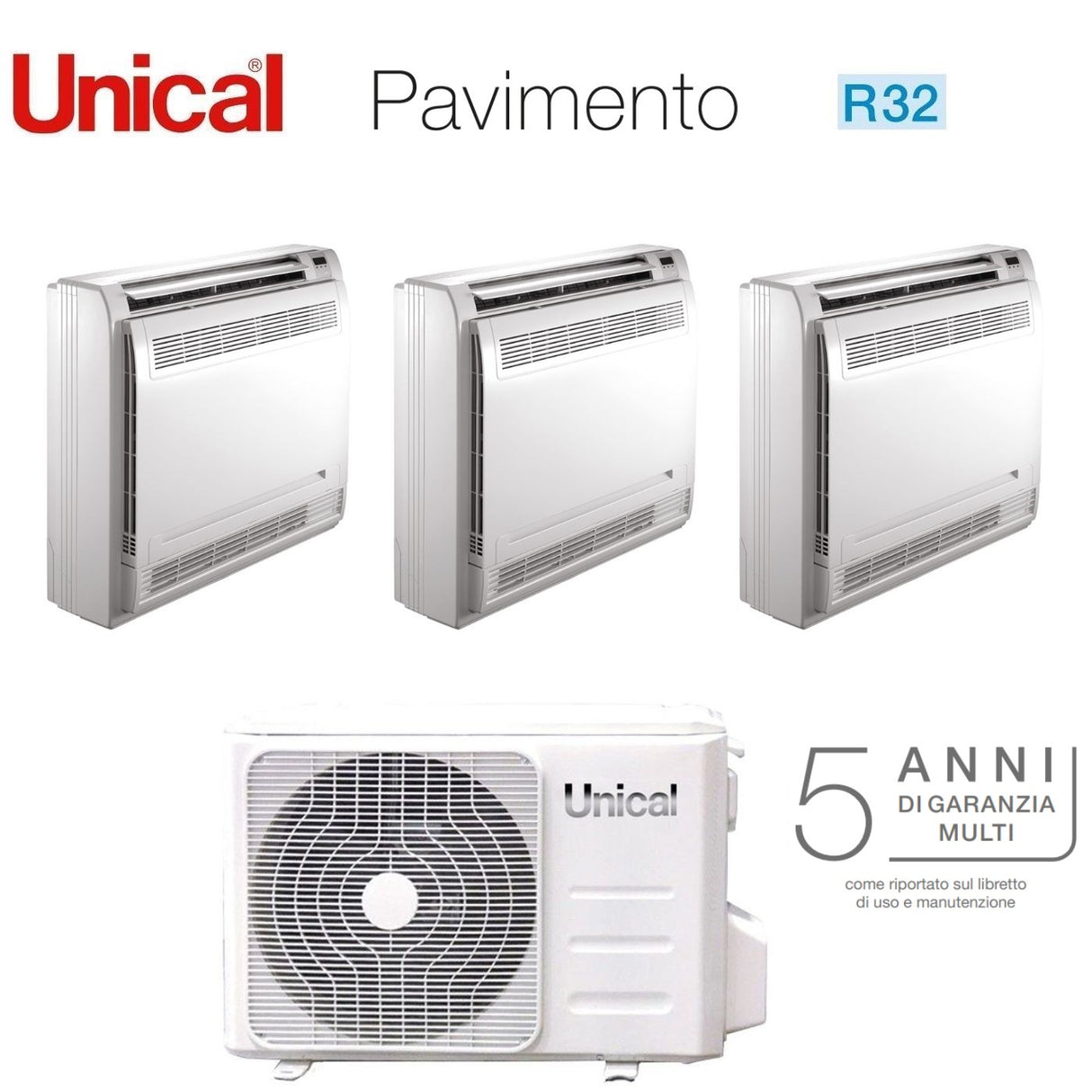

Example: System composed of 1 external unit and 4 internal units

---

Optimal comfort in every environment

Unical's MULTI systems allow you to reduce the overall dimensions of outdoor installation without having to give up the optimal comfort of the internal rooms to be air-conditioned. In fact, a wide range of external units can manage from 2 to 5 internal units of different types and power. If the sum of the power of the internal units exceeds that of the external unit, the system will automatically divide the total power between the various internal units. There are therefore many possible combinations with the MULTI range.

The outdoor units are available in five models with different powers: this allows for great system flexibility to satisfy every residential and commercial need. It is possible to install the internal unit with the power that best suits the size and shape of each room to be air conditioned.

Comfort in the environment is guaranteed by:

• DC Inverter technology: continuous progressive modulation allows the rotary compressor to adjust the power absorbed according to the number of internal units on request and according to the set temperature, obtaining an electricity saving of 20% compared to traditional systems.

• Heat pump even with low external temperatures , thanks to the variable speed external unit fan.

• Constant temperature in the room , thanks to the modulation of the compressor power which avoids annoying temperature oscillations classic of on/off systems.

• Thermo- assisted modulating expansion valves : they regulate the pressure of the refrigerant to always have the maximum yield from the refrigeration circuit depending on the working conditions of the entire system.

---

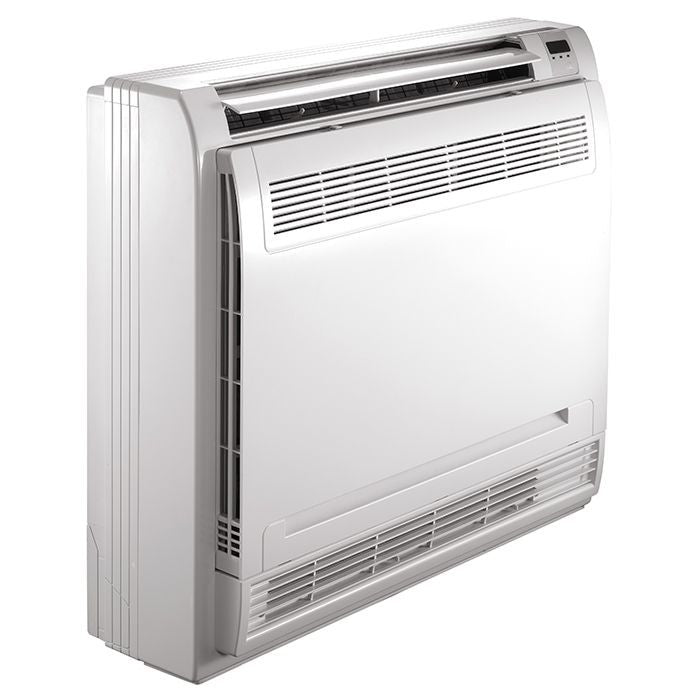

Unical KMPS

allows significant energy savings thanks to inverter technology. Watchdog function which, in the event of microprocessor malfunctions due to voltage fluctuations, automatically restores regular operation. For environments between 80 and 100 square meters.

Particular care has been taken in the design of these machines with rounded and modern lines which have been designed for installation in elegant environments,
indifferently on the floor or ceiling. They are suitable for medium/large sized, residential or commercial environments. The indoor unit is equipped with a large fin that allows the orientation of the main throw and an oscillating motorized deflector that allows a second positioning of the air flow using the remote control. The outdoor unit is equipped with "rotary" inverter compressors for the 18H, 24H models and "scroll" type compressors for the 36H, 48H and 60H. The electronic command and control board, which is equipped with an Intronics microprocessor, is integrated with an important additional function called "Watchdog" which, in the event of a malfunction of the microprocessor due to voltage fluctuations, automatically restores regular operation, thus avoiding dangerous current overloads to the microprocessor.

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 80.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Unical
• modello: KMPS 12+12+12
• potenza btu: 12000+12000+12000
• superficie riscaldabile mq: 35/35/35
