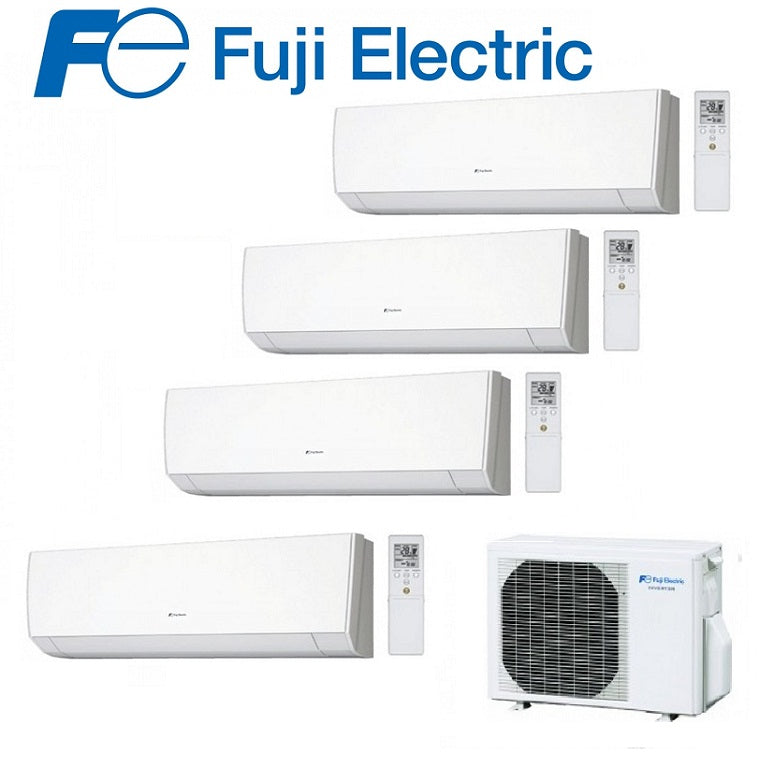

AIR CONDITIONER FUJI ELECTRIC INVERTER WALL-MOUNTED SPLIT PANELS LM series 9+9+12+12 with ROG30L 9000+9000+12000+12000

Overview

AIR CONDITIONER FUJI INVERTER WALL-MOUNTED SPLIT PANELS LM 9000+9000+12000+12000 series with ROG30Lÿ

ÿ

Technical specifications

ÿ

INTERNAL UNIT

1) Model

Product Code: 2x RSG 09 LMC

Power:ÿ230/1/50

Sound pressure (Cooling-Heating)ÿH/M/L/Q: 37/33/29/21ÿdB(A)

Sound power (Cooling-Heating): 52

Air flow:ÿ600/520/430/310

Dimensions: 268x840x203ÿ; 8.5 kg

2) Model

Product Code: 2X RSG 12 LMC

Power:ÿ230/1/50

Sound pressure (Cooling-Heating)ÿH/M/L/Q: 42/38/33/25ÿdB(A)

Sound power (Cooling-Heating): 56/57

Air flow:ÿ600/520/430/310

Dimensions: 268x840x203ÿ; 8.5 kg

OUTDOOR UNIT

Model:ÿROG30L

Nominal capacity (Cool-Heat): 8.0 - 9.6 Kw

EER-COP: 3.60 / 4.00 KW

ÿ

Performance:

Sound pressure (Cool-Heat): 50-51 dB(A)

Sound Power (Cool-Heat): 68-70 dB(A)

Electrical Data:

Power V/ ÇÓ?/Hz:ÿ230/1/50

Dimensions:

Liquid-Gas pipe connections: 9.52 / 12.7

DislevellmaxsimU.IU.E: 10 m

External Unit Dimensions: 830x900x330; 68 kg

ÿ

Main features

MULTISPLIT INVERTER TECHNOLOGY

Well-being in all rooms; by distributing different internal units in the various areas of the home, the desired temperature is reached evenly. Fuji Electric Multisplit Inverter systems can combine from 2 to 8 internal units with a single external unit which, in addition to offering great versatility of placement, prevents the external aesthetics of the home from being modified.

ÿ

Energy savings: The use of the DC compressor and fan increases the efficiency of the air conditioners and guarantees lower electricity consumption

ÿ

Stylish indoor units: Fuji Electric has a wide range of elegantly designed indoor units ranging from 2 to 7 kW. The ultra-thin Slim ducted units of just 198 mm in height have the condensate lifting pump as standard and the Self-directing Group Kit (AutLouver) as accessories.

ÿ

The best performance on the marketÿThis range equipped with the latest Inverter technology allows you to achieve high energy efficiency values: great comfort and energy savings.ÿ

ÿ

Maximum flexibility. The internal units can operate individually or simultaneously. Combinations of 2 high-power internal units can also be created with the 3x1 and 4x1 external units.ÿ

ÿ

Easy installationÿThanks to the possibility of reaching considerable lengths for the pipes, the outdoor units can be installed almost anywhere.ÿ

ÿ

INTERNAL UNITÿ

ÿ

Elegant and compact internal units (models LU, LM and LF) equipped with bacterial filters and catechin filters guarantee greater energy efficiency: all 2x1 combinations are in class A and have very low noise levels.

ÿ

ÿ

LM series INVERTER WALL SPLIT

Cutting-edge design and compact dimensions: The internal units have compact dimensions, just 203 mm deep, and allow for greater energy savings and easy maintenance thanks to the removable and washable front.

ÿ

"Low Noise" function for the external unit It is activated from the remote control and allows you to further reduce the sound level of the external unit.

ÿ

Maximum comfort at home: Low energy consumption, optimal performance and cleanliness are what characterize the Fuji Electric Split Inverter range. These features allow you to make the most of domestic environments

ÿ

Elegant compacted designÿWith its elegant compacted design the Slide becomes a decorative furnishing object, as well as guaranteeing a high level of comfort with the greatest energy savings

ÿ

Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

ÿ

ÿ

• peso: 100.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• costospedizionecad: IT54;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
• gas: R-32
• marca: Fuji Electric
• modello: CLIMAT_2220
• potenza btu: 9000+9000+12000+12000
• superficie riscaldabile mq: 25/25/35/35
