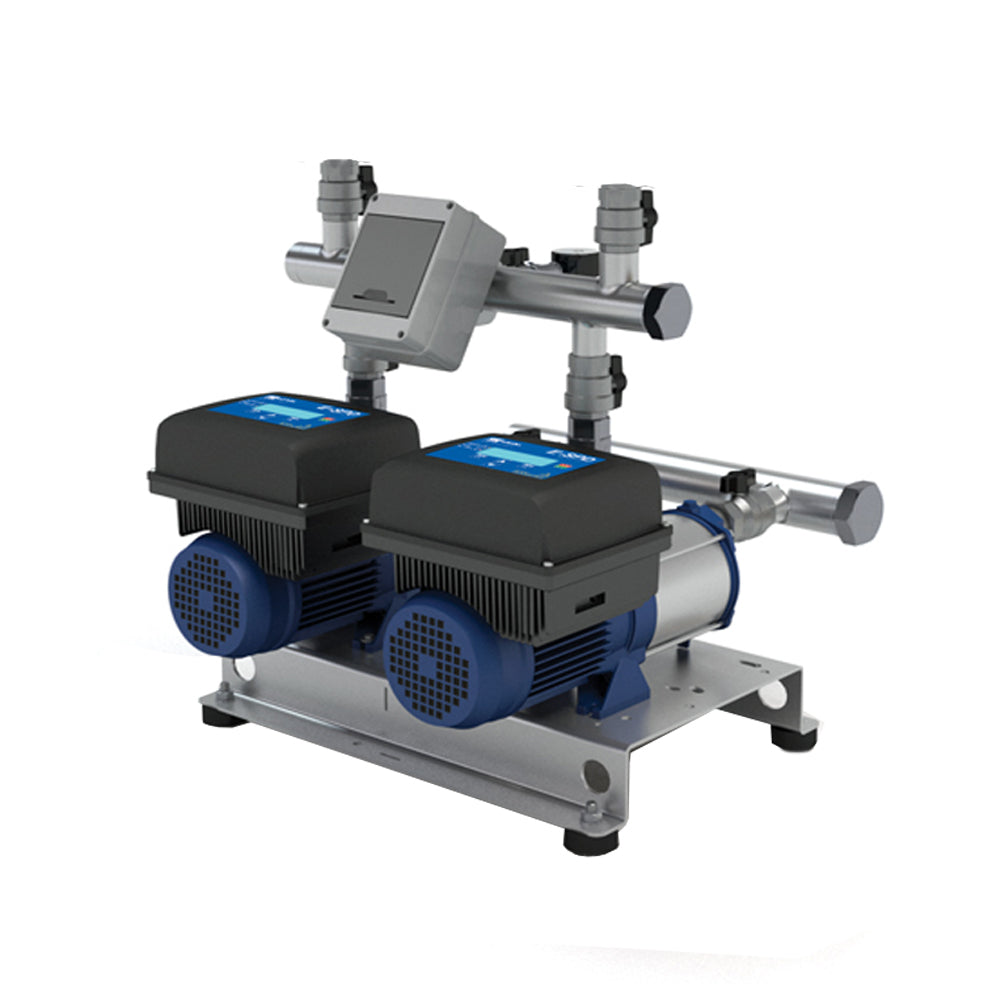

Ebara pressurization group with 2 horizontal multi-stage cast iron pumps and 304 stainless steel manifolds 2GPE COMPACT A12/1 ESPM 2001051102 WITHOUT VESSEL AND WITH SILENT LIQUID MOUNTING ARRANGEMENT

Ebara pressurization group with 2 horizontal multi-stage cast iron pumps and 304 stainless steel manifolds 2GPE COMPACT A12/1 ESPM 2001051102 WITHOUT VESSEL AND WITH SILENT LIQUID MOUNTING ARRANGEMENT

---

General characteristics

• Brand: Ebara


• Product model supplied: 2GPE COMPACT A12/1 ESPM


• Product code supplied: 2001051102

---

Description

TYPICAL APPLICATIONS
The base of the unit is made of galvanized steel and so are the collectors. The
delivery manifold is designed to accommodate 2 possible tanks
vertical type membrane; 2 pressure switches are mounted on it, the
electrical panel and a pressure gauge. Each electric pump has in
suction a disconnect valve and a non-return valve, with
possibility of connection to an air supply and is equipped with
another disconnecting valve on delivery.

---

TECHNICAL FEATURES
The HERTZ TWIN control panel is an automatic control system
and protection for two centrifugal electric pumps equipped with three-phase motors
induction. The power supply to the panel can be three-phase or
single phase. HERTZ TWIN control panels include a
pump control software and allow speed regulation
of the engine by means of an electronic frequency variator (Inverter)
which powers the pump motor. As the rotation speed varies
the performance of the pump varies in terms of flow rate and head
allowing optimal use in all conditions while saving energy.

---

ADVANTAGES
• Energy saving as the controller modulates the pump a
depending on the hydraulic energy demand of the system with respect to
a direct network connection
• Better and faster adjustment
• Reduction of water hammer thanks to a start and stop
gradual
• Better comfort in heating, air conditioning and systems
pressurization
• Reduced starting current
• Exchange at every restart of the powered pump
• Speed ​​modulation on both pumps for one
optimal adjustment
Typical applications of the GPE series pressurisation units with i
paintings are:
• Water supply for distribution networks, condominiums,
schools, hotels, hospitals, etc.
• Water supply for industry in general
• Irrigation of gardens, parks and sports fields

Inverter-controlled groups with two horizontal multistage pumps.

---

PUMP FEATURES
FIELD OF USE
• Maximum operating pressure: 10 bar
• Maximum liquid temperature: 40°C

---

MATERIALS
• Cast iron pump body and support
• External jacket in AISI 304
• Impeller and diffuser in technopolymer
• Shaft in AISI 416

---

TECHNICAL DATA
• Self-ventilated 2-pole asynchronous motor
• Insulation class F
• IP44 protection rating
• Single-phase voltage 230V ± 10% 50Hz,
three-phase voltage 230/400V ± 10% 50Hz
• Permanently inserted capacitor and protection
thermoamperometric sensor with automatic reset for the
single-phase motor
• Protection by the user for the three-phase version

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 5.0 kg
• marca: Ebara
• modello: 2001051102
