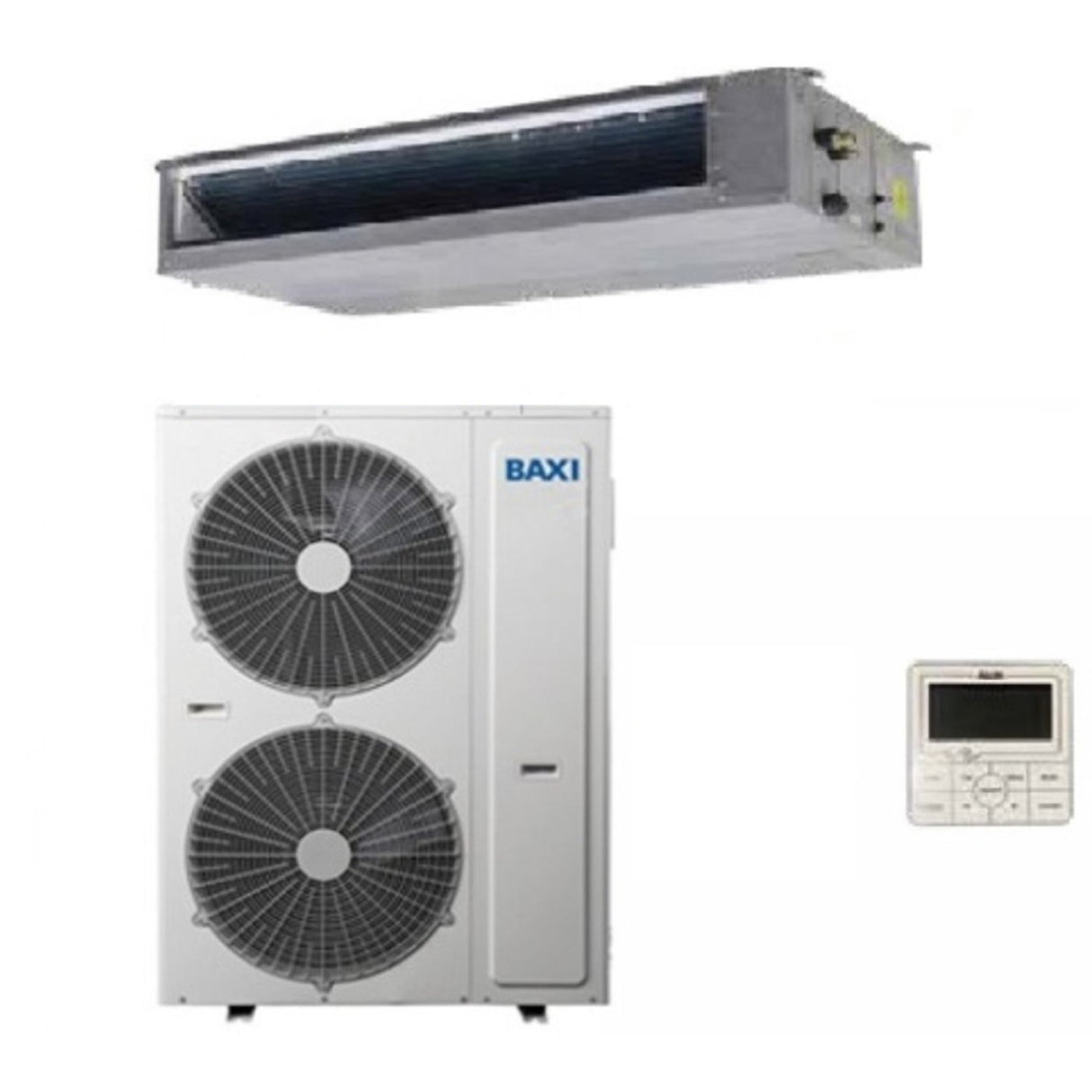

BAXI Air Conditioner Inverter Luna Clima Ducted Ducted R-32 48000 btu RZGND140 Wi-Fi optional

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

BAXI Air Conditioner Inverter Luna Clima Ducted Ducted R-32 48000 btu RZGND140 Wi-Fi optional

---

Model:

• Indoor unit catalog code: RZGND140
• Outdoor unit catalog code: RZGT140
• Technology: ErP INVERTER
• Power: 48000 btu/h

Characteristics:

• THREE-PHASE power supply
• Refrigerant gas: R-32
• Refrigerant Pipes Liquid / Gas Line: mm(inch) 3/8" -3/4"

Dimensions and weight:

• Internal Unit hxwxd: 245x1400x700
• External Unit hxwxd: 1325x940x370

General characteristics

Luna Clima Light Commercial

Baxi confirms its experience in the world of air conditioning by introducing the new Light-Commercial range which uses the new ecological R32 gas . Mono and Multi Split models with cassette, ducted and floor/ceiling type internal units.

The new Luna Clima Light-Commercial R32 range perfectly combines a sophisticated design with high performance (in heating, cooling and dehumidification) and very low operating noise to guarantee maximum environmental comfort.

The new Luna Clima Light-Commercial range has also been developed entirely in line with the requirements of the European ErP Directive to encourage an informed user choice towards a product that allows significant energy savings with maximum respect for the environment.

Silence

The Luna Clima Light Commercial range offers extremely quiet machines (one of the lowest on the market) to guarantee quality comfort in the environment in which we stay and work.

Integrated condensate drain pump

In the Mono and Multi Split cassette and ducted models, the condensate drain pump is integrated AS STANDARD. The pump can evacuate the accumulated condensate by transporting it up to a maximum of 1200 mm higher than the height of the condensate collection tray

Easy and intuitive comfort management

The remote control with liquid crystal display supplied AS STANDARD with the Mono and Multi Split cassette and floor/ceiling indoor units is complete with a double keyboard with quick menu on the surface.

the wired wall remote control supplied STANDARD with the Mono and Multi Split ducted indoor units allows switching on/off and setting the temperature from the quick menu on the surface

Functions:

• iFavor recall of stored parameters with one button
• Sleep automatic adaptation of operation during the night period. Greater silence, lower consumption
• iFeel adjustment of operation based on the occupied room temperature
• Auto clea n keeps the internal unit clean, avoiding the formation of fungi and mould
• Timer programming of the operating period
• Dry dedicated dehumidification function independent of cooling
• Turbo thanks to the inverter the power supplied in heating/cooling. is instantly maximized for immediate comfort
• Auto Swing automatic airflow orientation
• Auto restart operation automatically resumes in the event of a power failure
• Anti discomfort avoids cold air currents during winter operation
• Stand-by 0.5 W for optimizing consumption
• Energy efficiency class A++ in cooling, class A+ in heating
• Antibacterial filters collect and stop air impurities including viruses and bacteria
• Integrated condensate drain pump for Mono and Multi Split cassette and ducted models

All the aforementioned functions can then be conveniently set remotely via the Air Connect App . The Air Connect App and the wi-fi module allow you to remotely control Baxi Luna Clima air conditioners. Air Connect is the application that allows you to have full control of the temperature and comfort of your home or work environment at any time and from wherever you are. After installing the wi-fi module (check the reference manual for installing the wi-fi module) and downloading the App, you can communicate with your Baxi air conditioner directly from your Smartphone and Tablet devices (iOs and Android). With a simple touch you can: turn the air conditioner on/off, set operating modes, fan speed, vertical and horizontal oscillation of the flaps (where provided), active functions, timer, etc.

Ducted monosplit

• New slim dimensions of the indoor unit with reduced height to facilitate installation in the false ceiling
• Maximum head available 160Pa
• Complete range with powers from 5 to 16 kW (from 18,000 to 60,000 Btu/h)
• High energy efficiency class A++ in cooling and class A+ in heating for all models
• R32 refrigerant gas , with lower environmental impact and greater performance
• High silence, up to 20 dB(A) for the internal unit
• Extended operating limits (operation from -15°C to +52°C)
• Total control of the air conditioning thanks to the new touch screen flush-mounted control supplied AS STANDARD
• Optional WiFi module for total remote control via the Air Connect App
• Auto restart after any voltage drops
• Integrated condensate drain pump AS STANDARD
• Optional infrared remote control



Integrated condensate drain pump AS STANDARD

The pump can evacuate the accumulated condensate by transporting it up to a maximum of 1200 mm higher than the height of the condensate collection tray.


Air intake flexibility

The Mono Split ducted models allow air intake from both the rear and the bottom of the internal unit. At the time of purchase, the lower suction of the internal unit is prevented by a closing plate. However, this sheet metal can be easily dismantled and fixed on the rear intake grille to allow air intake from the lower side of the duct.

• peso: 130.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: BAXI
• metri quadri : 160 - 180 m2
• modello: RZGND140
• potenza btu: 48000
• superficie riscaldabile mq: 140
