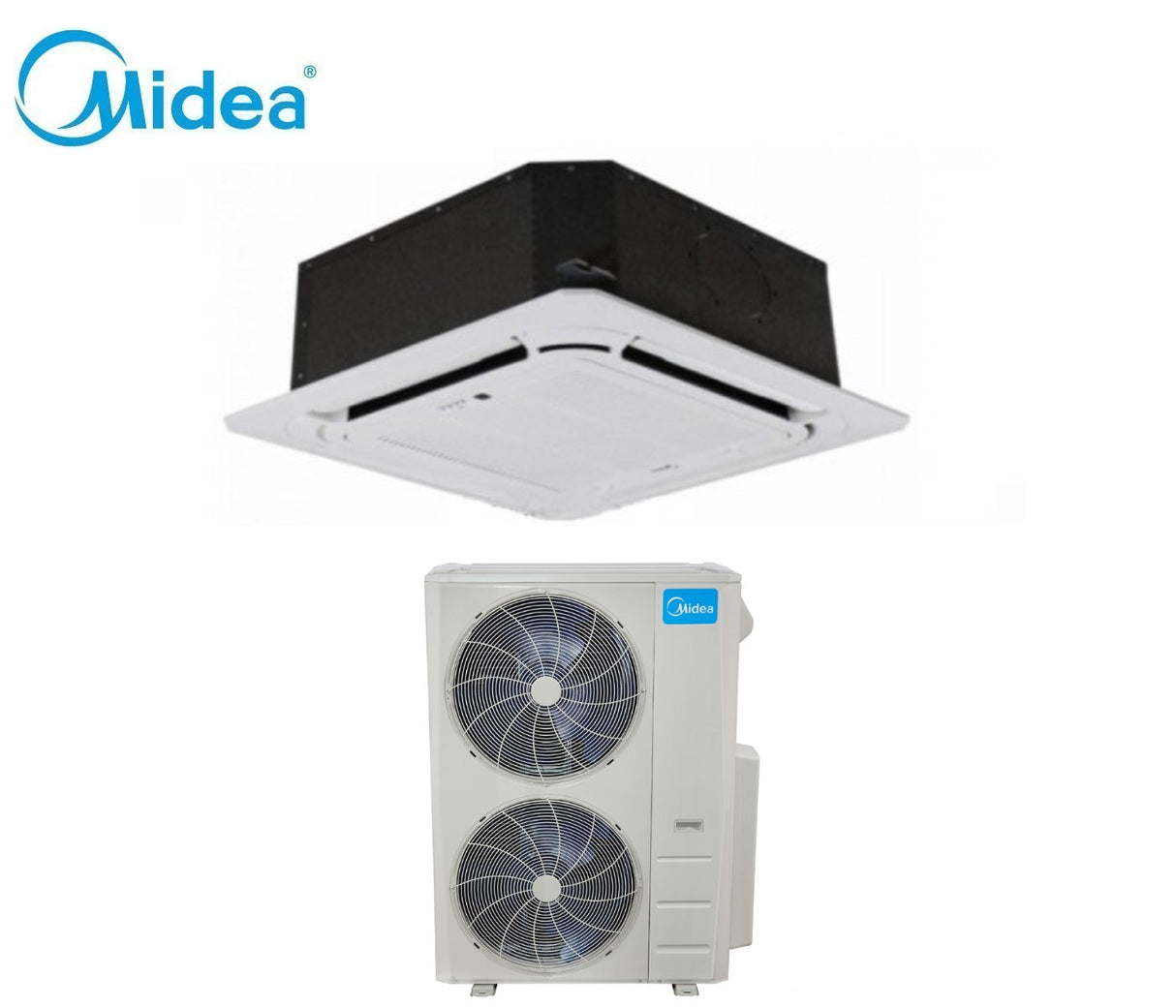

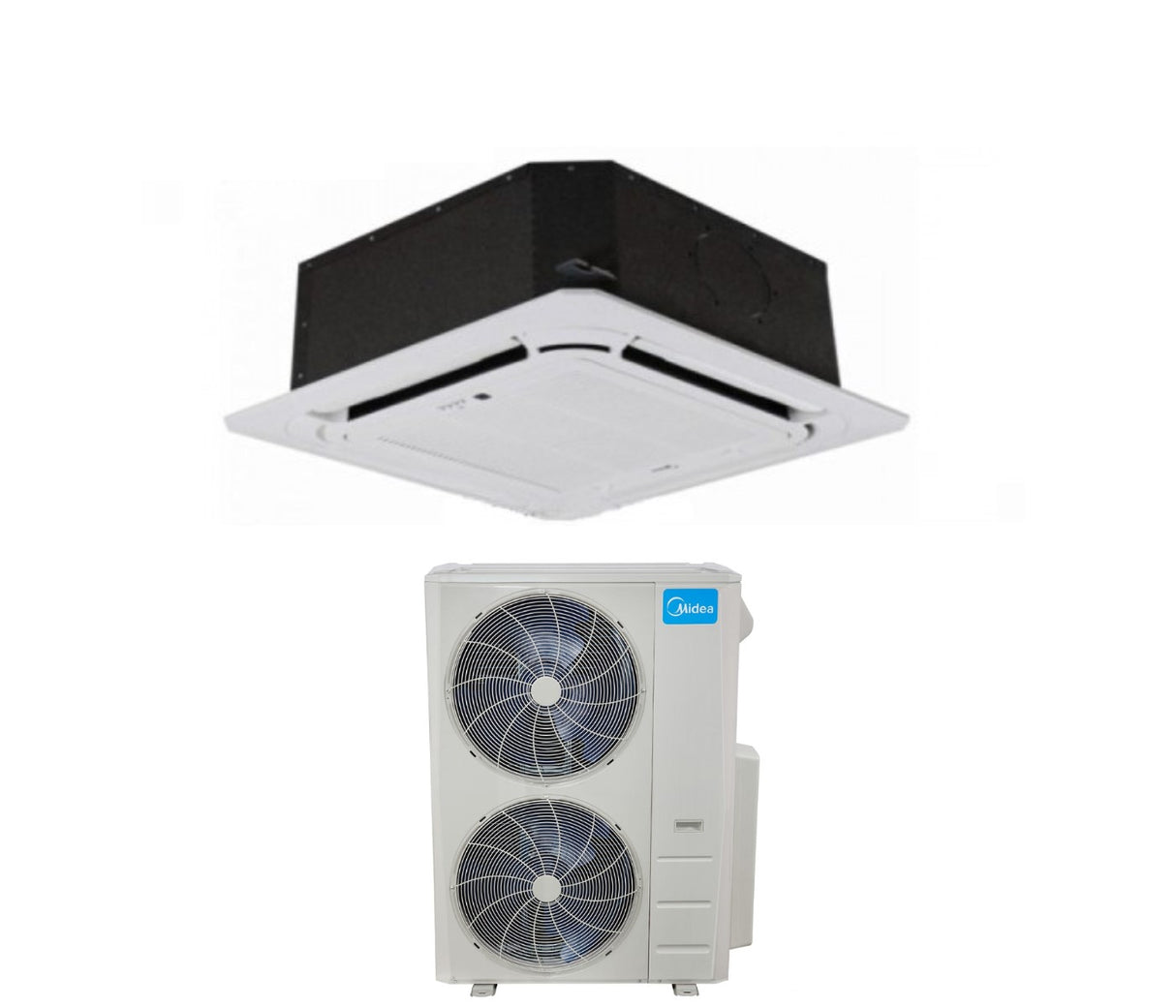

Midea Inverter 4-Way Slim Cassette Air Conditioner 60000 Btu MCDE-160 + MOUE-160T Three-Phase R-410 with Grille Included
Midea Inverter 4-Way Slim Cassette Air Conditioner 60000 Btu MCDE-160 + MOUE-160T Three-Phase R-410 with Grille Included is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features
- Indoor unit catalog code: MCDE-160; EAN: 8003912216943
- Panel Code: T-MBQ-02E1; EAN: 8003912218053
- Outdoor unit catalog code: MOUE-160T; EAN: 8003912217223
- Power: 60000 Btu
- Cooling Capacity: 15.82 kW
- Heating Capacity: 18.17 kW
- Indoor Unit Treated Air: 24.2 ~ 31.2 m 3 /h
- Internal Unit Sound Power Level: 68 dB(A)
- Indoor Unit sound pressure level: 49 ~ 56 dB(A)
Electrical Data
- Power supply (V,Hz, Ø): 230/50/1
- Refrigerant gas: R-410
- Operating range
- - Cooling: -15° ~ 50° C
- - Heating: -15° ~ 24° C
- Liquid pipe diameter: 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum pipe length: 65 m
- Maximum difference in height of internal / external unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (WxDxH): 840x840x287 mm
- Internal Unit Weight: 28 Kg
- External Unit Dimensions (WxDxH): 952x410x1333 mm
- External Unit Weight: 95.1 Kg
Midea 4 Way Slim Cassette
Condensate lifting pump
The Midea 4-way cassette internal units are equipped with a condensate liquid lifting pump which allows discharge at a height of 600 mm above the tray
Remote On/Off Control and Alarm Signal
With a dedicated terminal block, a switch can be easily connected to control the unit from an external device. The card can emit an alarm signal which can be combined with an external signaling device
360° Air Diffusion
The 4-way cassette internal units are equipped with pre-cuts for the ducting of the delivery outlets and one
intake for fresh air intake, directly connected to the machine's intake duct
“Twin” combination
The 90 x 90 cm 4-way cassette internal units can be installed in "Twin" mode: a single commercial external unit can connect to two internal units, broadening the scope of possible installations. Available in combinations: 18k+18k, 24k+24k, 30k+30k
Reliability
- Air conditioning of technical rooms
- Refrigerant leak alarm
Health and Comfort
- Air intake
- Auto Swing
- Anti-Frost Mode
Practicality
- I-Remote
- ON/OFF contact
- Condensate drain pump
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 120.0 kg
- alimentazione: Three-phase
- costospedizionecad: IT64;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
- marca: Midea
- metri quadri : 180 - 200 m2
- modello: MCDE-160 + MOUE-160T_1
- potenza btu: 60000
