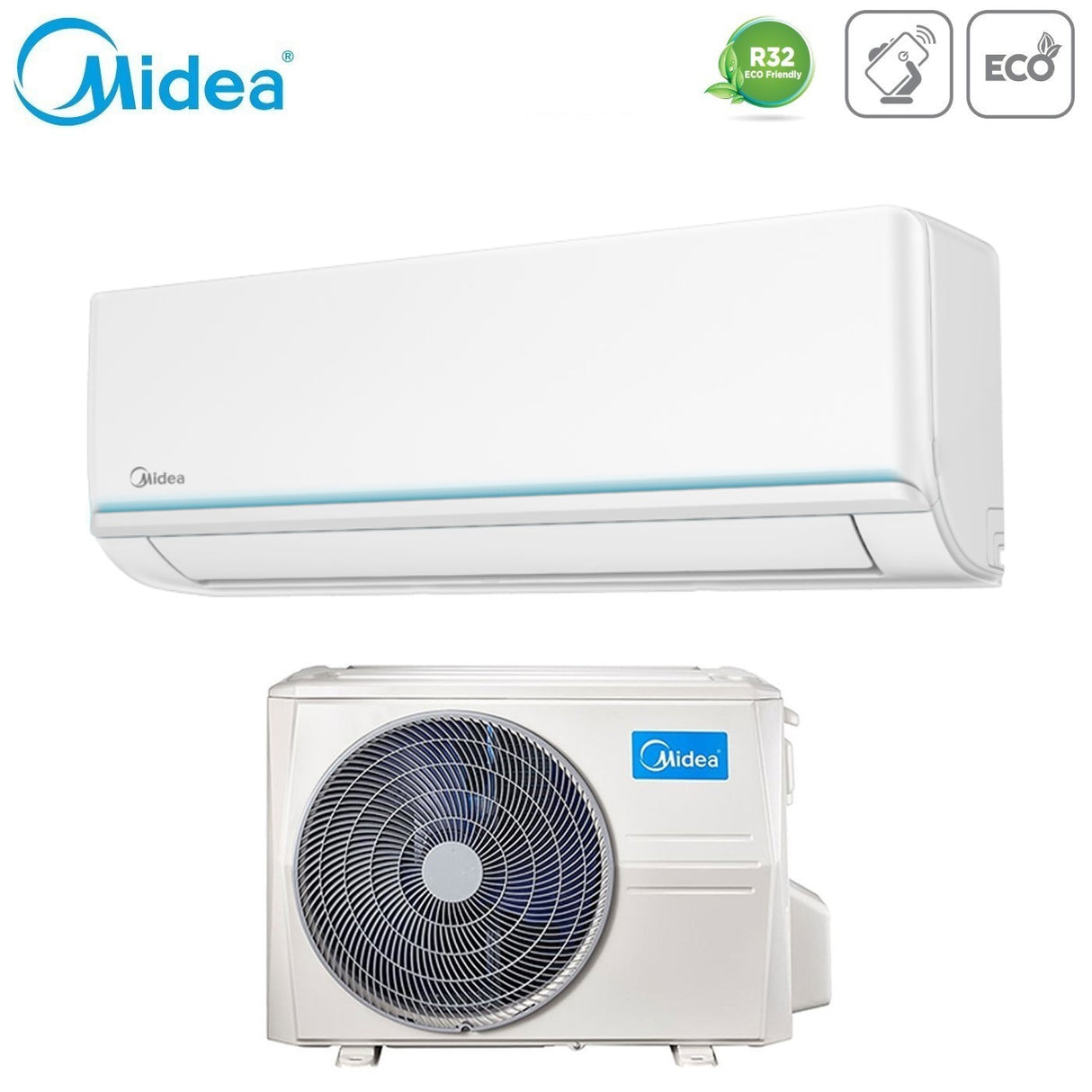

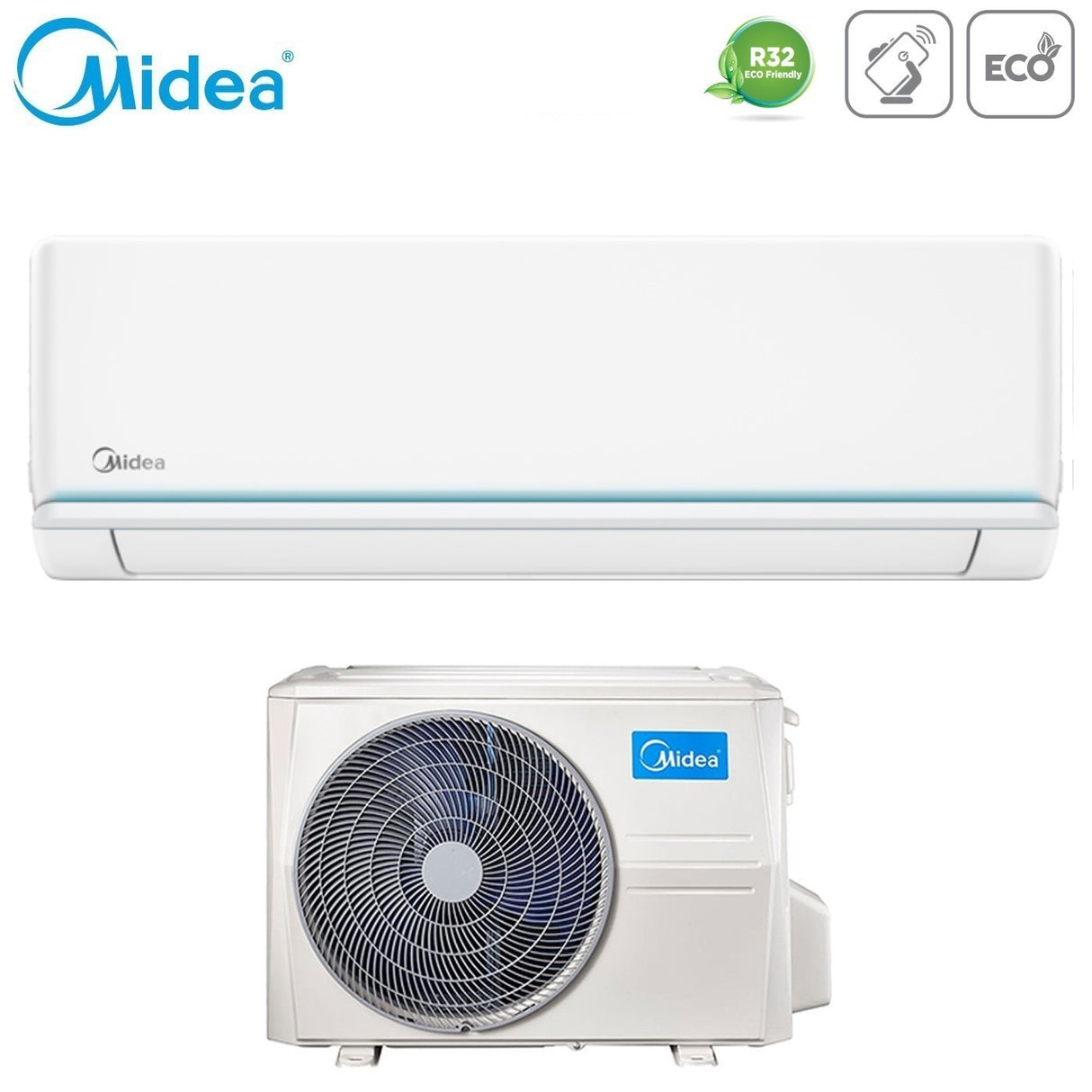

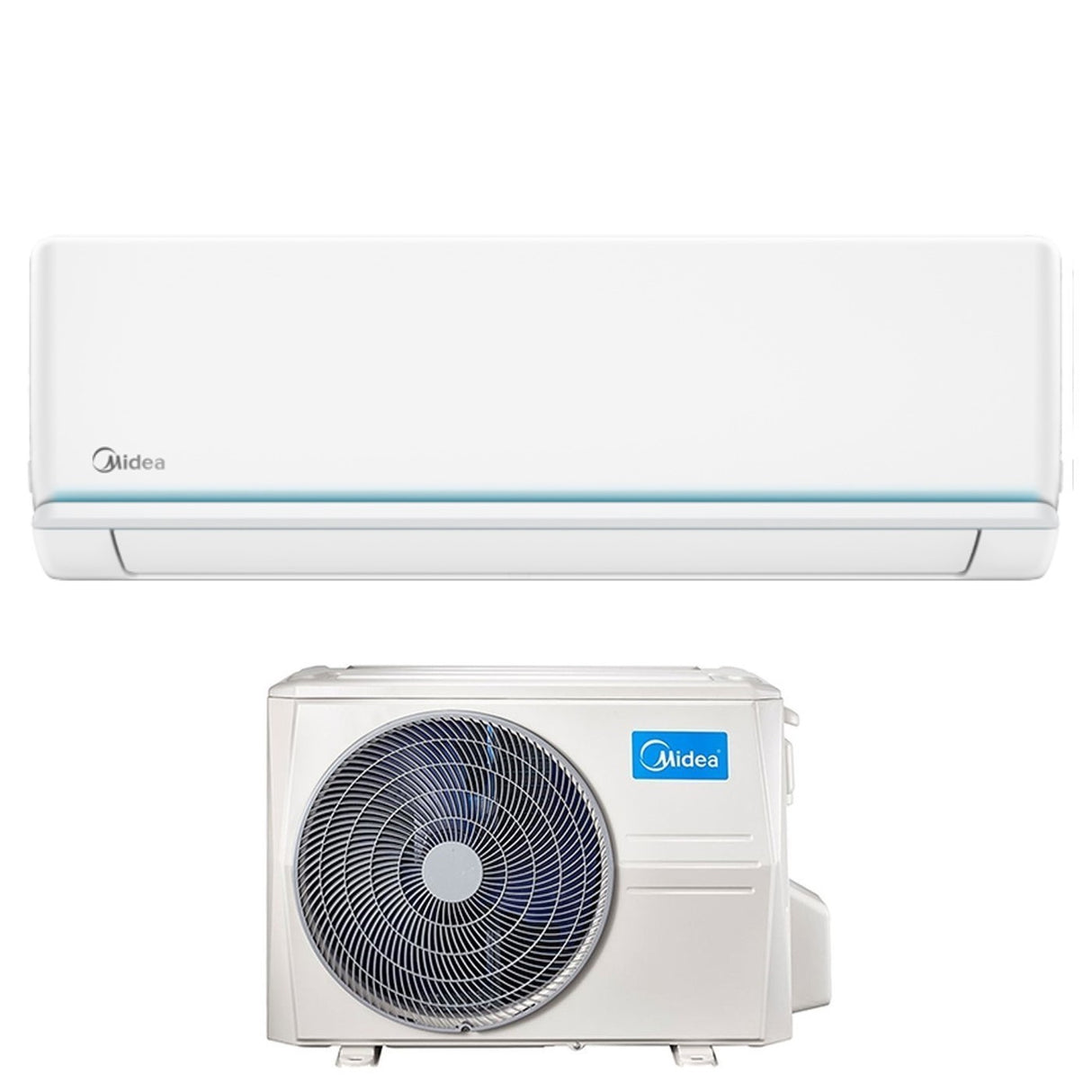

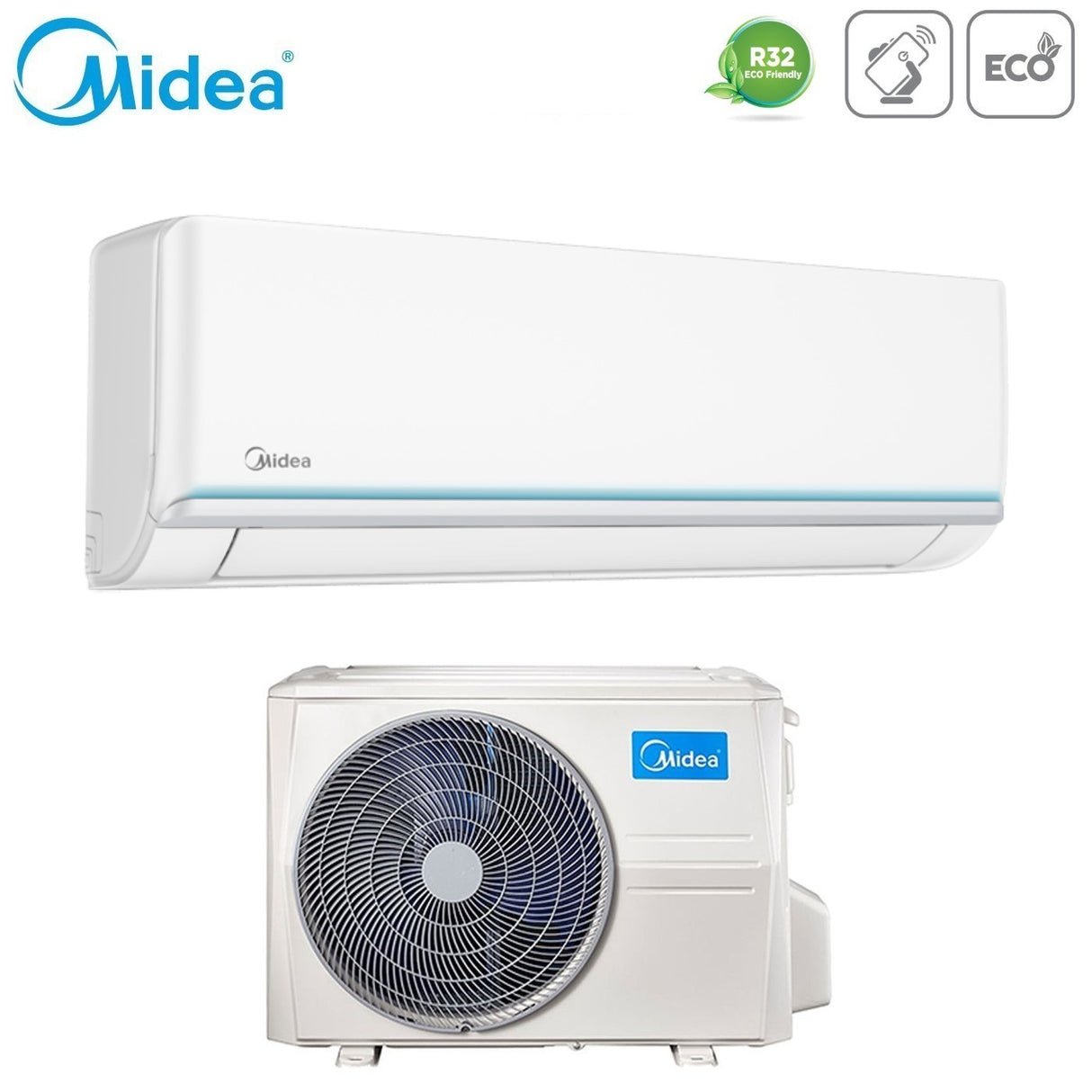

Midea Inverter Air Conditioner EVOLUTION + MISSION PRO series 18000 Btu MSAGXCU-18HRFN8+MOB02-18HFN8 R-32 Wi-Fi Optional Class A++/A+

• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 12.70 mm (1/2")
• Maximum pipe length: 30 m
• Maximum internal unit / external unit height difference: 20 m

Dimensions and weight

• Indoor unit dimensions (WxDxH): 969x320x241 mm
• Internal unit weight: 11.2 kg
• External unit dimensions (WxDxH): 800x333x555 mm
• External unit weight: 36.9 kg

The evolution of technology. With the Midea Evolution Series air conditioner you can maintain control of your home consumption thanks to the iECO and GearShift functions, discover true comfort by setting the air conditioner in Follow Me, Breeze Away and Super Cool modes and enjoy your home safely thanks to the sterilization function of the air for deep cleaning and rapid disinfection. Furthermore, thanks to a special anti-corrosion treatment, the heat exchanger of the outdoor unit will be resistant to salt and external atmospheric pollutants.

Self-diagnosis

In the event of a failure, a fault code system allows users to be notified of defects in a simple and clear manner to quickly activate the assistance service

1W Stand By

The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, reducing electricity consumption in the Stand-By phase

Fan linear regulation

The rotation speed of the internal fan, beyond the usual predefined levels of activity, can be adjusted within the values ​​1-100%.

Condensation control

The units can operate in cooling mode even at low external temperatures to air-condition technical rooms

Diamond Design outdoor unit

Innovative diamond cut shape with no sharp edges and no visible screws. The air exhaust grille contains a newly designed fan to reduce noise to a minimum.

Eco function

This function allows you to limit the rotation frequency of the compressor to reduce the capacity delivered and significantly increase the specific efficiency of the product during use in cooling mode

Refrigerant leak alarm

If the temperatures of the refrigeration circuit are irregular due to refrigerant leaks, a specific fault code (EL-0C) allows you to identify this condition

GEAR function

The SMART units are equipped with the GEAR function which allows you to limit the maximum rotation speed of the compressor and the consequent capacity delivered, significantly improving the specific efficiency of the product

Control your climate with your voice

The Right series air conditioner is compatible with Amazon Echo, Google Home, Apple HomeKit.

Controlling the comfort in your home has never been easier. Thanks to the integration with the latest generation technologies Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you will be able to "ask" your air conditioner for the best for you, with Midea.

Midea Smart Kit Optional

The internal units of the Evolution series can be equipped with the CE-SK105 accessory to be managed by a dedicated APP via Wlan connection

Mono and Multi internal units

The internal units are multipurpose so that they can be connected in both Monosplit and Multisplit configurations. You can therefore decide to install a Monosplit and add further units in the future.

Follow Me function

The room temperature can be detected by a special sensor located in the infrared control, in order to obtain a more precise detection

Emergency function

In the event of a failure of one of the product's sensors, operation can continue in Emergency mode until the faulty part is replaced

Deflector orientation memory

At each restart, the vertical air deflector automatically positions itself in the last used angle
