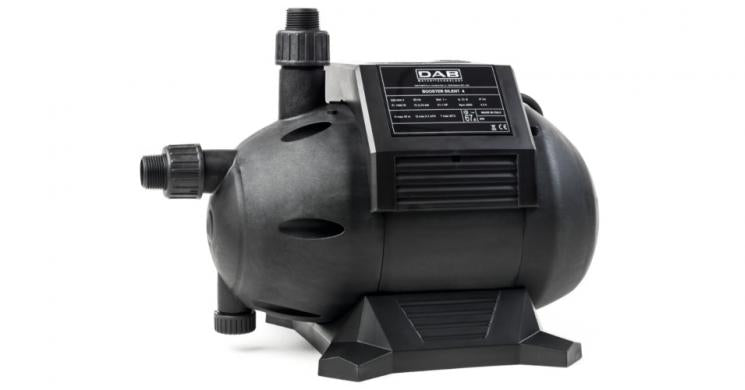

AUTOMATIC MULTIPELLER SELF-PRIMING PUMP ON / OFF DAB BOOSTER SILENT 4 M HP 1 SINGLE PHASE 99330712

Technical features

Model: BOOSTER SILENT 4 M

• Operating range: Flow rate up to 80 l/min head up to 46 m
• Liquid temperature range: from 0°C to +35°C for domestic use, from 0°C to +40°C for other uses.
• Pumped liquid: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallised and chemically neutral
• Maximum suction depth: 8 metres
• Maximum ambient temperature: +40°C
• Degree of protection: IPX4
• Insulation class: F
• Installation: fixed or portable in horizontal position.

DAB PUMPS

There is a name in the electric pump sector that has been synonymous with high technology and reliability throughout the world for over 30 years. This name is DAB, a company that has been designing and building electric pumps since 1975 with a very specific aim: to respond to the increasingly demanding market demands not only with products that stand at the highest levels of quality, but also with an efficient service. and versatile.

35 years of experience and innovation

Founded in 1975 in Veneto, DAB PUMPS SpA is today an international point of reference in the water handling sector. Its core business concerns the design, production and sale of hydraulic electric pumps capable of satisfying any need for any type of domestic and professional application.

A network as big as the world

During its 35 years of constant growth, DAB PUMPS has also developed a sales network and technical assistance centers that provide widespread coverage of the national and international market. In addition to its 5 production plants located throughout Italy, the company structure is made up of 9 foreign branches and numerous distributors throughout the world.

The most reliable products

With over 2 million pieces produced every year, DAB PUMPS electric pumps have become synonymous with high technology and reliability.
DAB has a vast range of water pumps, suitable for every need, made with cutting-edge materials that make them increasingly resistant to internal and external stress, capable of guaranteeing high performance, quality and resistance in the long term, limiting the environmental impact. DAB pumps are the result of continuous research and technology, elements that seek to offer flexible and easy-to-use solutions in every field of application. The specific attention that the company places on the materials and the approval procedures to which each line is subjected before production release allows DAB PUMPS to simultaneously ensure the highest degree of resistance and maximum performance of its products.

General characteristics

The 0.75 HP Dab Booster Silent pump is a silent single-phase electric pump with only 67 dB. The real revolution at Dab is the silent electric booster pump.

APPLICATIONS

Automatic, multi-impeller (3-4-5) and self-priming pressurization system up to 8 meters with integrated electronics, for water supply
domestic, gardening and small irrigation systems.

CONSTRUCTION FEATURES

Fairings in sound-absorbing composite material and hydraulic components in technopolymer. Carbon/ceramic mechanical seal. Continuous duty asynchronous single-phase motor cooled by the pumped liquid. Built-in thermoamperometric protection and permanently inserted capacitor. The system is equipped with an integrated electronic board, pressure switch and flow switch for automatic start and stop when the utilities are opened and closed. The electronic device prevents the pump from running dry. Equipped with status and alarm LEDs. Provides automatic or manual restart when error conditions are restored. The system is equipped with a non-return valve on intake, power cable with 2 meter plug and 2 liter tank.

• peso: 11.0 kg
• marca: DAB
• modello: Booster Silent 4
