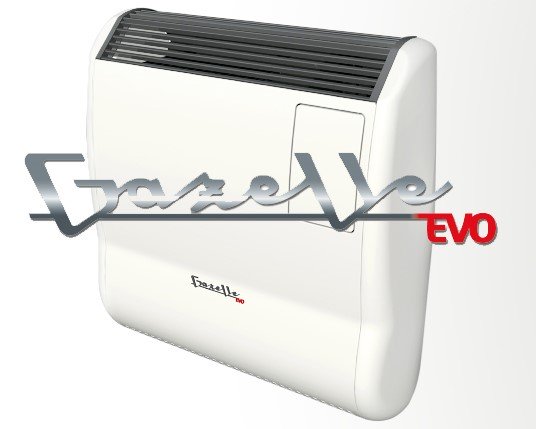

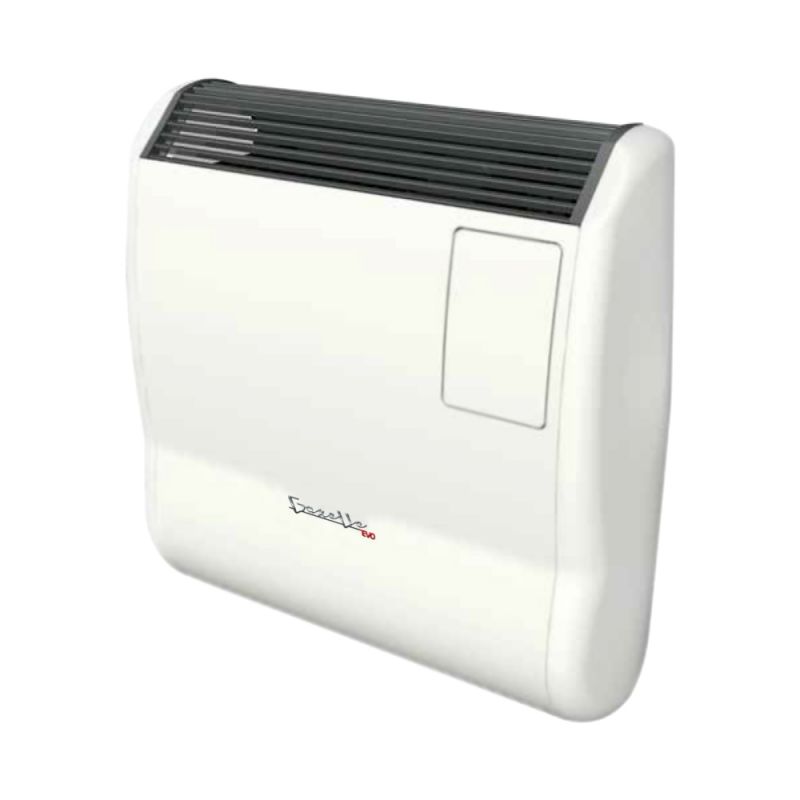

Gas Radiator Convective Stove Fondital GAZELLE EVO 3000 LPG 2.72 kW free smoke kit

Technical features

Model: Gazelle Evo 3000

• Type: Gas radiator
• Rated power: 2.72 kW
• Minimum power: 1.9 kW
• Maximum power absorbed: 24 W
• Useful efficiency at nominal thermal power: 93.7%
• Useful efficiency at minimum thermal power: 94.5%
• Nominal heat input: 2900 W
• Reduced heat output: 2000 W
• Nominal heat power: 2720 W
• Reduced heat power: 1890 W
• NOx emission class: 5
• Energy class: A
• Power supply: LPG
• Power supply voltage/frequency: 230 - 50 V/Hz
• Combustion chamber: Forced draft
• Electrical protection rating: 20 IP
• External diameter of straight exhaust pipes (C13): 2 x 55/2 mm
• External diameter of split pipes (C53): 35 or 60 mm
• Gas connection diameter: G 1/2 M inches
• White color
• Dimension WxHxD: 547 x 550 x 195
• Weight: 20 kg

NB* With 2 x 55/2 we refer to n2 pipes (one for air intake and one for fume exhaust) each with the same shape as a semicircle with a diameter of 55 mm

General characteristics

NEW GAZELLE EVO

The Strength of EVO solution

The single gas convective stove with a heat output of less than 5 kW is not considered a heating system, therefore one might think that there are no legislative obligations to carry out annual periodic maintenance.

In reality, even when the gas convective stove is not considered a heating system, only the obligation to check its energy efficiency ceases to apply but all the requirements reported in the supplier's instruction booklet remain valid, which always prescribes annual maintenance by qualified personnel. .

Maintenance allows the machine to work in the best conditions of efficiency and safety, thus allowing fuel savings, better environmental well-being and prolonging the life of the machine. Extraordinary maintenance must also be added to periodic maintenance in the event of breakage or wear of the device.

According to the provisions of Ministerial Decree n.37 of 22 January 2008, the installation and maintenance of the devices must be carried out only by expert professionals who must issue the declaration of conformity of the product itself.

By professionally qualified personnel we mean those with specific technical expertise in the sector of heating system components for civil use, or qualified according to current legislation.

To guarantee maximum efficiency and safety of the appliance, it is therefore recommended to have the inspection certificate completed by an authorized Technical Assistance Center (CAT). With reference to installation it is good to consider some guidelines:

• The appliance must be installed on walls directly communicating with the outside, alternatively alternative installations must always be set up in compliance with current regulations.

• The correct distance from other surrounding elements must be respected as shown below:

Gas convective heaters , such as Gazelle Evo, are an excellent solution in terms of efficiency and safety for heating domestic and industrial environments but, like any other product, they must be used and maintained with care and precision.

By relying on one of our experts you will therefore be able to benefit from all the advantages of our products in the safety of your home.

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
