Garanzia Italiana 24 mesi
SKU: Style 9+12+12 R32

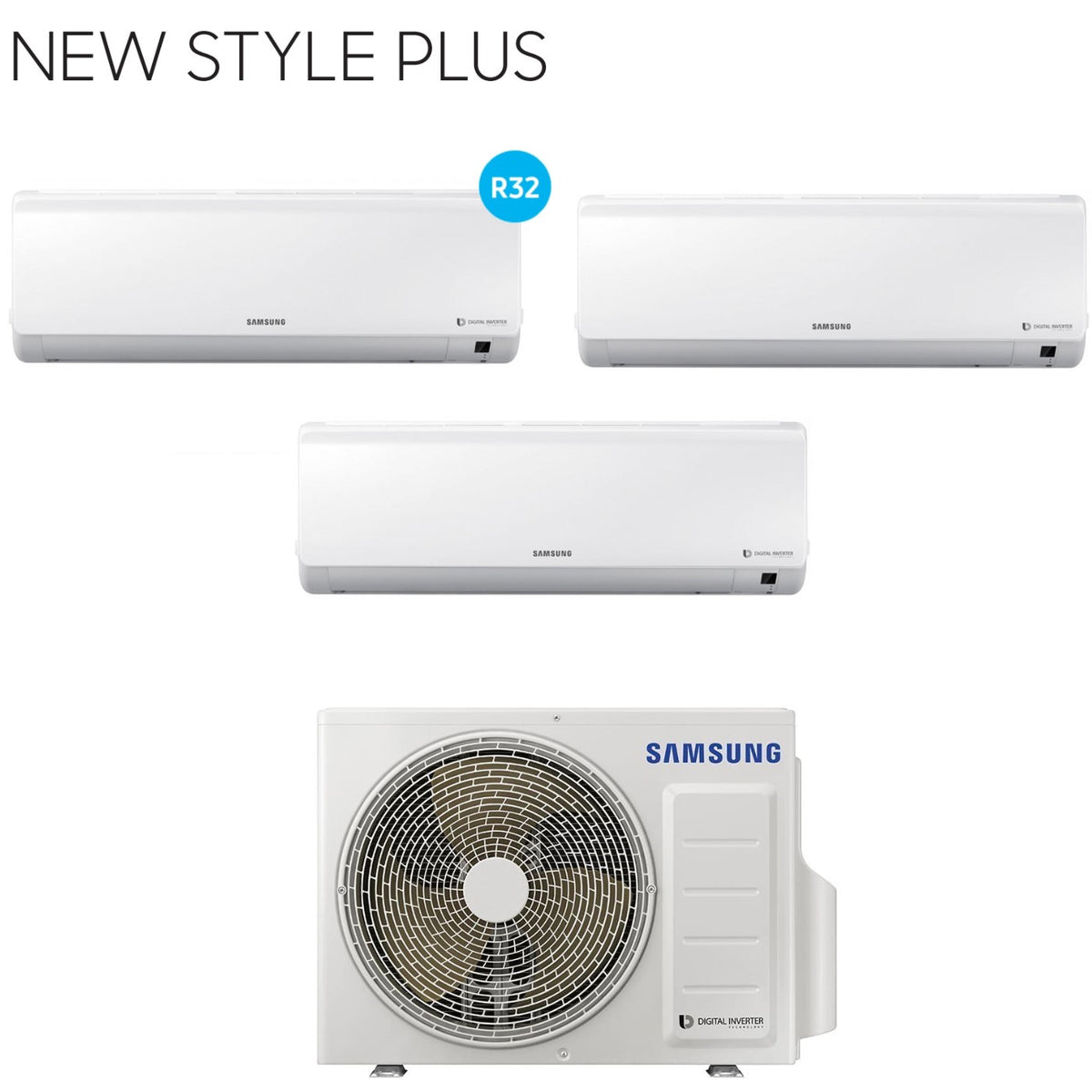

Samsung Trial Split Inverter Air Conditioner NEW STYLE PLUS series 9+12+12 with AJ068RCJ R-32 9000+12000+12000 - New

€1.887,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.


Technical features

Internal Units


  • Series: New Style Plus
  • Power: 9000 btu
  • Internal Unit WxHxD (mm): 820x285x227


  • Series: New Style Plus
  • Model: 2x AR12NXFHBWKNET
  • Power: 12000 btu
  • Internal Unit WxHxD (mm): 820x285x227

External Unit


  • Catalog code: AJ068RCJ3EG/EU
  • Gases: R-32
  • Max combinable internal units: 3
  • Power (V/Hz/Φ): 220~240/50/1

Energy efficiency

  • SEER: 7.75
  • SCOP: 4.32
  • Cooling/Heating energy efficiency class: A++/A+


  • Nominal Capacity (Cooling/Heating) kW: 6.8/8.0
  • Max External Unit Sound Pressure (dB(A)): 48/50
  • Sound power (Max) dB(A): 64
  • Cooling/Heating operating range (°C): -10°~46°/-15°~24°


  • External Unit WxHxD (mm): 880x798x310; 57.5 kg
  • Liquid/Gas connection pipes Ømm (inch) 3x6.35 (1/4”) - 9.52 (3/8”) + 2x12.70 (1/2”)
  • Pipe length (max per unit): 50 m
  • Max internal-external unit height difference: 15 m
  • Max internal-internal unit height difference: 7.5 m

General characteristics

MULTIsplit Residential Line

Unique technologies that improve lives

Efficiency and Comfort for a perfect climate. Samsung's Multisplit range offers a variety of solutions for all types of environments and needs. Multisplit products maintain optimal performance, guaranteeing one of the best energy efficiency on the market.

Samsung's uniquely quiet and energy-efficient multi-split systems provide air purification perfectly optimized for smaller applications. Lightweight, compact designs and one-button automatic addressing facilitate cost-effective installation.

With its advanced compression technology, Samsung FJM offers balanced performance for high reliability. The FJM system is fully compliant with new EU regulations for even more efficient performance.

New Style Plus

New Style Plus is a reliable air conditioner, with reduced consumption (energy class in cooling A++; energy class in heating A+) thanks to the 8-pole Inverter Motor.

Intelligent operation to save energy

The high efficiency compressor 8-pole Digital Inverter maintains the desired temperature without having to carry out frequent switching on and off operations. This way, it uses less energy* and ensures maximum comfort for extended periods of time.

Rapid Cooling - Fast Cooling

Fast Cooling mode cools much more quickly by setting the compressor and fan speed to maximum for 30 minutes*. The 8-pole Digital Inverter compressor also helps to quickly reach maximum power when activated.

Comfortable cooling

The 2-step cooling mode starts to cool the air quickly using the Fast Cool mode. Then Comfort Cool mode is automatically activated to maintain the desired temperature so you don't have to change any settings.

Good Sleep

The Good Sleep mode creates an ideal climate for a pleasant night's sleep. Through temperature control it ensures maximum comfort, allowing you to fall asleep quickly, sleep deeply and wake up with the right energy. Thanks to a precise temperature control system and automatic humidity regulation, all three vital phases of your sleep are protected from humidity and heat so that when you wake up you feel refreshed and ready to face a new day. Good Sleep not only saves you crucial minutes and hours of potentially lost sleep, but also saves up to 36% in energy consumption compared to normal cooling mode.

Automatic temperature control

The Auto Change Over feature automatically selects the operating mode (cooling or heating) required to maintain the set temperature. This way you can enjoy an environment characterized by constant comfort, without having to repeatedly change the settings.

Always fresh - Auto Clean

You probably already know this, but it's good to remember that an air conditioner can produce mold and spread bacteria. This is because the difference between the indoor and outdoor air temperatures creates humidity inside the unit, and humidity equals bacteria. The solution? When the air conditioner is turned off, the Auto Clean function automatically activates a fan to remove dust and humidity present in the heat exchanger, which thus remains clean and dry and avoids the formation of bacteria and mold.

Main Features Internal Unit

  • Digital Inverter and 8-Pole Compressor The Digital Inverter compressor modulates the power based on actual needs, significantly reducing energy waste compared to traditional compressors. The new and exclusive 8-Pole Inverter ensures more effective and efficient operation with less vibrations and noise, cooling environments more quickly and also reducing consumption.
  • 2 Step Cooling The air conditioner works at maximum power to quickly reach the desired temperature. Then direct the fins upwards to keep them as comfortable as possible.
  • Car Clean The function, which starts automatically once the air conditioner is turned off, eliminates humidity in the internal unit, preventing the proliferation of mould, bacteria and bad smells.

  • 3 Care Filter The new generation filter is equipped with a special anti-bacteria, anti-allergen and anti-virus coating which helps to make the air healthier.

  • Display Digital The elegant and bright digital display, visible only when the air conditioner is on, reveals the temperature of the room in which the internal unit is installed.

  • Auto Clean function The function, which starts automatically once the air conditioner is turned off, eliminates humidity in the internal unit, preventing the proliferation of mould, bacteria and bad smells.

  • Good Sleep function The function regulates the room temperature by reproducing the body temperature curve during the night hours, thus ensuring a more comfortable rest.

  • Single User Mode The practical Personal Use mode is ideal for air conditioning a single area, with significant energy and economic savings.

Outdoor Unit Features

Protection of the fins and structure

The outdoor units are able to withstand even extremely high temperatures thanks to the large condenser and optimized refrigerant flow. It also has a special coating that prevents corrosion of the condenser and the structure.

Compressor protection

It is able to operate even in the harshest environments thanks to Triple Protector Plus technology which protects the compressor from any low voltage damage caused by overvoltage overload.

Control unit protection

It also includes a feature that protects the control system from high voltage discharges caused by fluctuating electrical current, thus avoiding the need to use a separate voltage stabilizer.

BLDC compressor (double rotation)

A key aspect that contributes to the FJM's efficiency is its BLDC (double rotation) compressor which is standard on all external models. Its double eccentric cams and dual balance weights result in low vibration levels, contributing to much quieter overall performance. Attention to the quality of moving parts such as robust bearings as well as premium coupling rollers and housings produce a high degree of stability and durability.

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 75.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Samsung
  • modello: Style 9+12+12 R32
  • potenza btu: 9000+12000+12000
  • superficie riscaldabile mq: 25/35/35
