HERMANN SAUNIER DUVAL
Garanzia Italiana 24 mesi
SKU: Sdh19 9+9+9

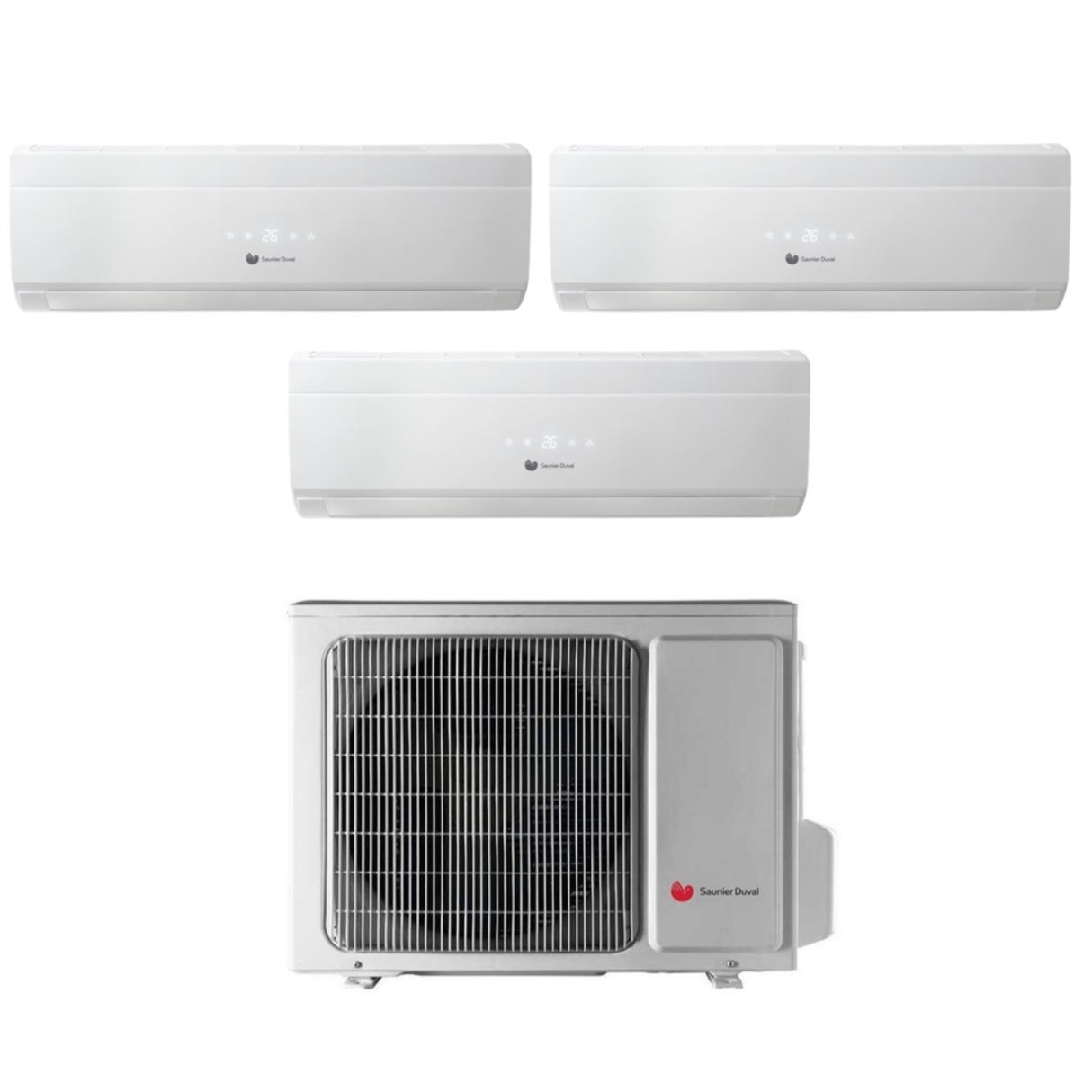

Hermann Saunier Duval Trial Split Inverter Air Conditioner UNI COMFORT 9+9+9 series with SDH19-070MC3NO R-32 9000+9000+9000

Trustpilot
€1.435,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

Model :

  • Indoor Unit Catalog Code: 3 x SDH19-025NWI
  • Power: 9000 btu

Electrical Data:

Cooling down

  • Cooling power: 2.6 kW
  • Maximum power: 3.35 kW

Heating

  • Heating power: 0.5 kW
  • Maximum power: 3.5 kW

Characteristics

  • Maximum Operating Current: 3.15 A
  • Air flow: 330 / 560 m³/h
  • Sound Pressure: 28 / 39 db(A)
  • Sound Power: 38 / 55 db(A)
  • Pipe connection: 1/4 - 3/8

Dimensions and weight :

  • Dimensions: 275 x 790 x 200
  • Weight: 9 kg

External Unit

  • Model: SDH19-070MC3NO
  • Connectable Internal Units: 3
  • Electrical power supply V/Ph/Hz: 230/1/50
  • Refrigerant gas: R-32
  • Sound Power: 68 db(A)
  • Sound Pressure: 58 db(A)
  • Maximum length of the pipe between the internal and external units: 20 m
  • Maximum Total Length of the Hose: 60 m
  • Maximum height difference between Internal and External Unit: 20 m
  • Tube diameter: 1/4 - 3/8

Performance

Cooling down

  • Cooling Power kW: 2.29 / 8.5
  • Cooling Power Btu/h: 7800 / 29000
  • Maximum Current: 11.3 A

Heating

  • Heating power kW: 3.66 / 8.79
  • Heating power Btu/h: 12500 / 30000
  • Maximum Current: 11.3 A
General Features
VivAir Uni Comfort

The new range of air conditioners that improve efficiency, sustainability and design that you will find on our website climaconvenienza.it

VivAir Uni Comfort SDH 19 is the new range of air conditioners that use R32 refrigerant gas which offers greater energy efficiency , a lower impact on the climate (Global Warming Potential - GWP= 675) and a lower quantity of charge required compared to air conditioners that use the R410 A gas.

Thanks to the use of the new R32 gas, the new Hermann Saunier Duval air conditioners are already in line with achieving the objectives established by the new regulation on fluorinated gases issued by the EU in 2015, which prohibits the use of refrigerants with a GWP greater than 750 in single-split air conditioners containing a refrigerant charge below 3 kg.

VivAir Uni Comfort SDH 19 is available in Dual, Trial and Quadri versions with powers from 4.1 kW to 8 kW in cooling, with energy class in cooling A++ (SEER up to 6.3) and in heating A+ (SCOP equal to 4 ,0) on all models.

The new range offers various functions to improve the comfort of your home: " I Feel " function to offer the desired temperature where the remote control is located, " Turbo " function to reach the desired temperature in the shortest possible time, regulation of the flow direction of air vertically and, Sleep function to minimize noise at night.

All available functions can be easily set from the supplied remote control, which is easy to use and features a large display to indicate the current operating status.

The new R32 gas
VivAir is the new range of Hermann Saunier Duval air conditioners that use the ecological R32 refrigerant gas. Thanks to the use of the new gas it is possible to obtain many advantages such as greater energy efficiency, a lower impact on the climate and a lower amount of charging required compared to air conditioners that use R410A gas. R32 gas is a safe gas, tested and already widely used for domestic applications in many foreign countries for several years.
What impact does it have on the climate?
To express the influence that a specific refrigerant would have if released into the atmosphere, the acronym GWP (Global Warming Potential) is used. The higher the GWP value, the greater the negative effect of that refrigerant on the climate and global warming. The new R32 refrigerant has a GWP of approximately 675, which corresponds to approximately one third of that of R410A gas (GWP=2088).
Ready for the new EU standards
The new VivAir range is already in line with achieving the objectives established by the new directive No. 517/2014 on fluorinated gases issued by the European Union, which prohibits the use of refrigerants with a GWP greater than 750 starting from 2025 in single-split air conditioners containing a refrigerant charge of less than 3 kg.

Multi-split air conditioning with ecological R32 gas

  • New R32 refrigerant gas
  • Dedicated MultiSplit indoor units: wall, cassette and floor/ceiling
  • Energy efficiency class in cooling up to A++
  • “I Feel” function with remote temperature sensor on the remote control
  • Sleep function to minimize noise at night.
  • High performance with a reduced environmental impact
  • Friendly to the environment, because it has a low GWP index
  • Less refrigerant than units with R410A
  • Greater energy efficiency than R410A
  • Safe and reliable
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica
  • peso: 75.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: HERMANN SAUNIER DUVAL
  • modello: Sdh19 9+9+9
  • potenza btu: 9000+9000+9000
  • superficie riscaldabile mq: 25/25/25
