SKU: ACQUAFUN 11 GPL

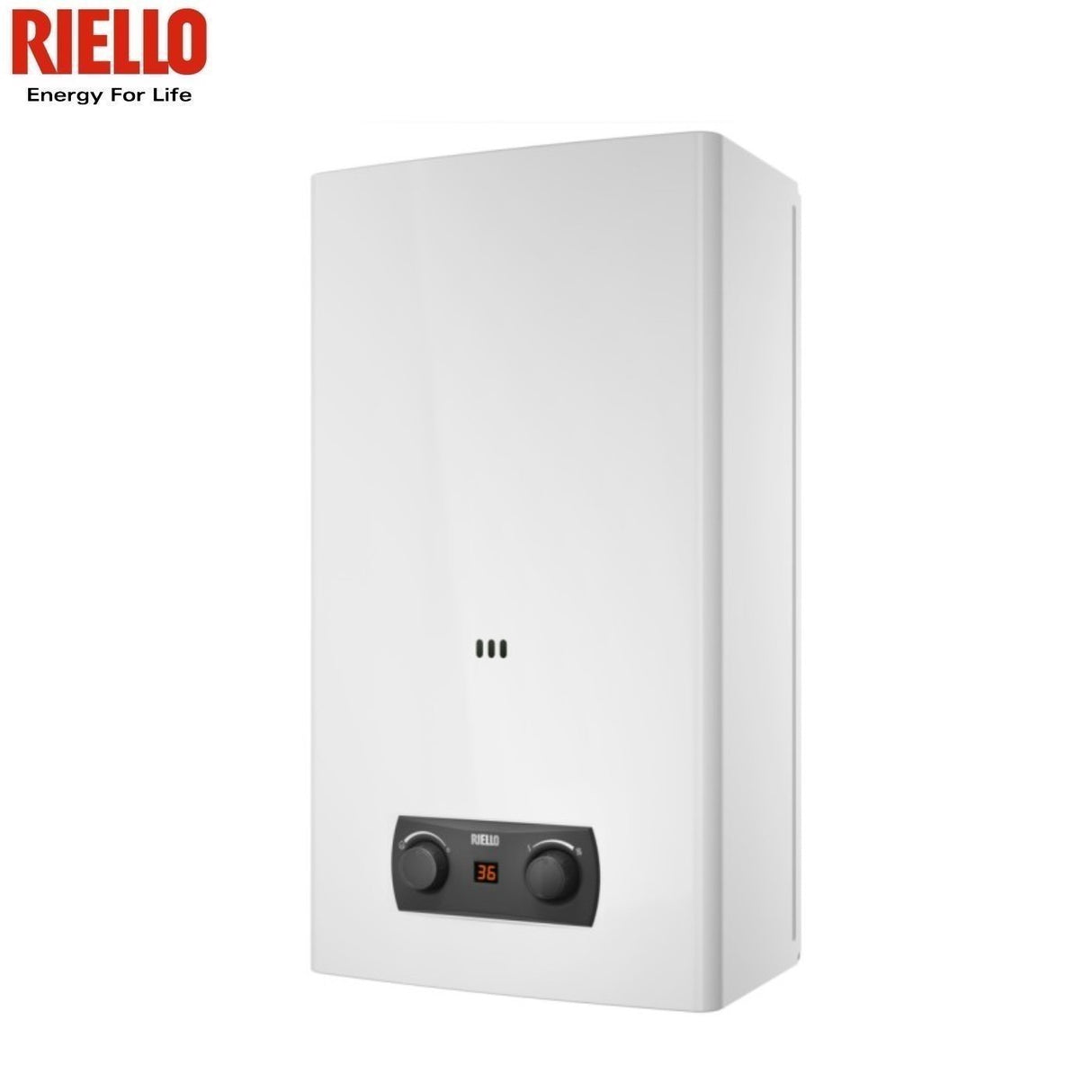

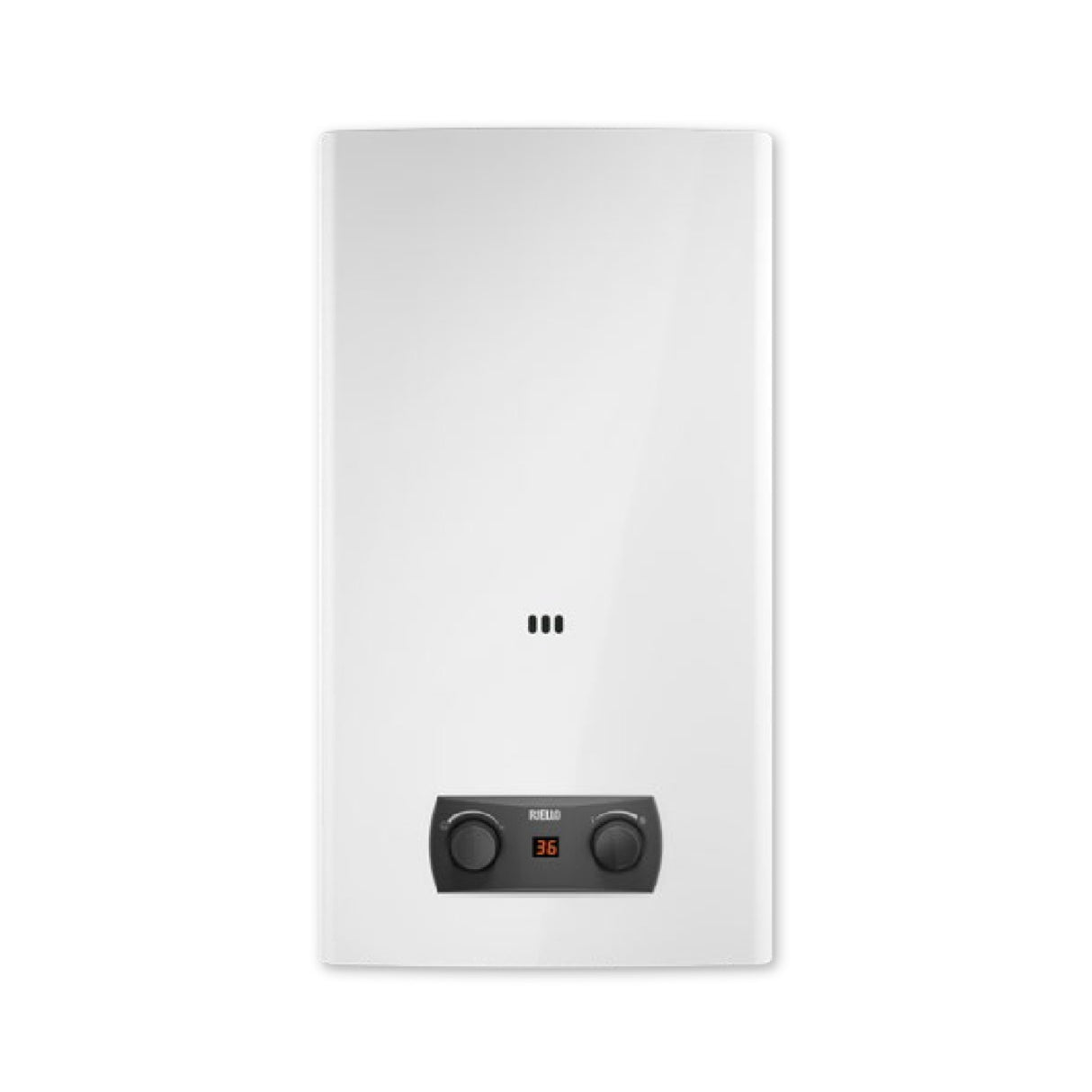

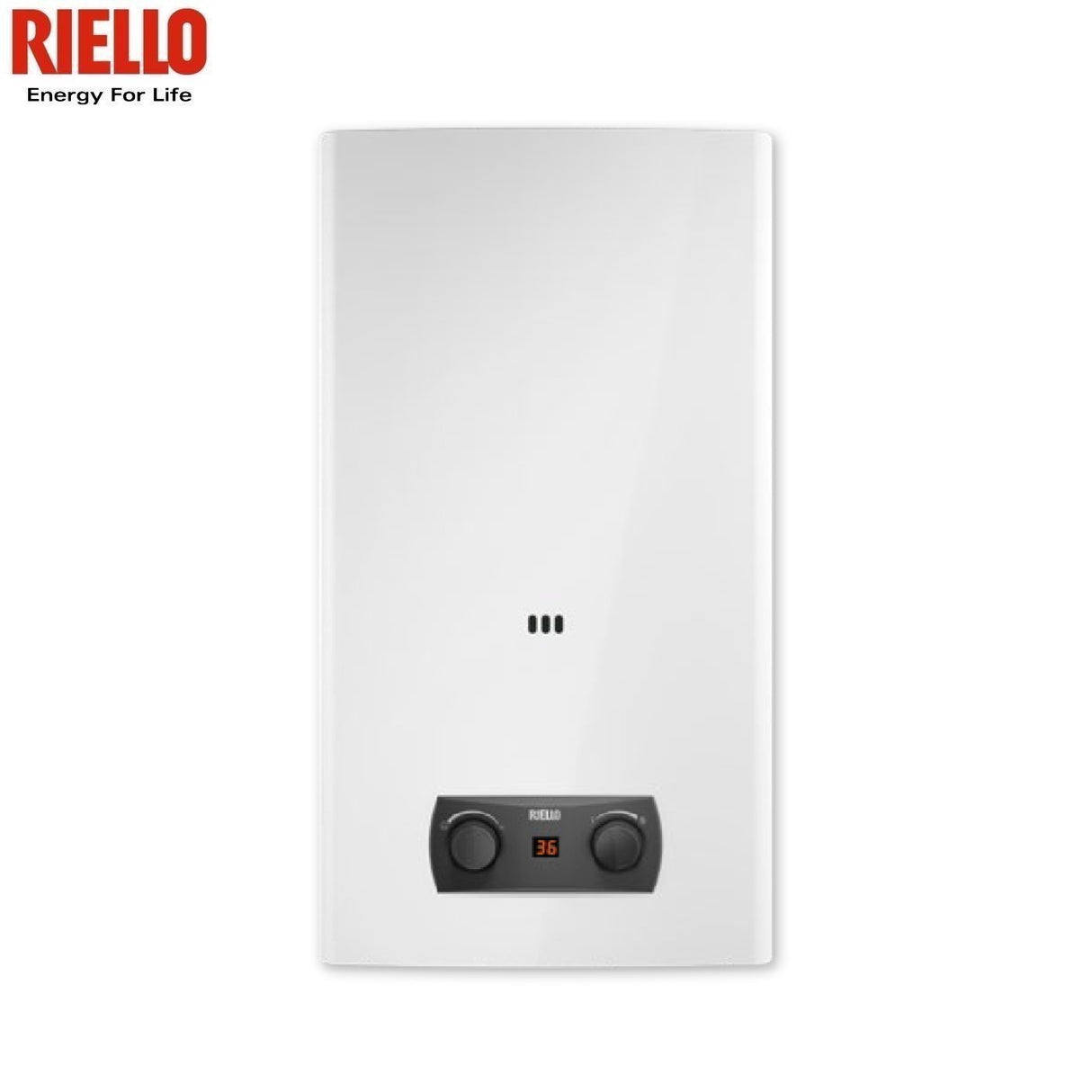

Open Chamber Gas Water Heater Riello Acquafun2 11 LN LPG Low NOx With Low Emissions 20149831

€210,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

I costi di spedizione variano a seconda del peso dell'ordine.

Consulta le tabelle con i pesi per l'Italia e per le Isole Minori e Zone Disagiate.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

  • Model: AcquaFun2 LN 11
  • Product code: 20149831
  • Gas: LPG
Energy efficiency
  • Energy efficiency class in sanitaryware: A
  • Healthcare load profile: M
  • Sanitary energy efficiency (ηwh): 77.2%
  • Daily gas consumption: 8,084 kW/h
  • Annual gas consumption: 6 GJ
  • Nitrogen oxide emissions: 46 mg/kWh

Characteristics

  • Type: Open chamber Draft
  • Natural draft
  • Power: 2 x 1.5V batteries
  • Flame control: Ionization
  • Flame modulation: Continuous
  • Hot water production Δt=30°: 9.3 litres/min
  • Nominal heat input: 21.0 ~ 22.0 kW
  • Rated heat output: 18.33 ~ 19.43 kW

Performance Water

  • Sampling range with selector at minimum: from 2.5 to 5.5 litres/min
  • Sampling range with selector at maximum: from 2.5 to 11 litres/min
  • Water temperature rise with selector at minimum: 50°C
  • Water temperature rise with selector at maximum: 25°C
  • Minimum ~ Normal ~ Maximum Pressure: 0.2 ~ 2.0 ~ 10.0 bar
  • Water connections: 12.70 mm 1/2” Ø
  • Domestic water temperature selection range: 35° ~ 60° C

Performance Gas

  • Nominal supply pressure G20,G30,G31: 20/28 ~ 30/37 mbar
  • Gas connections: 12.70 mm 1/2” Ø

Electrical data

  • Power (V,Hz, Ø): 220~240/50/1
  • Electrical protection degree: IPX4D
Dimensions and weight
  • Dimensions (HxWxD): 675x350x230 mm
  • Net weight: 12.0 kg

Riello ACQUAFUN 2 LN water heater The new Low NOx open chamber water heater

Riello presents Acquafun 2 LN, the new instantaneous open chamber water heater, entirely designed by Riello in both design and manufacturing. Product that is part of the new offer of low NOx emission products capable of offering maximum healthcare comfort in compliance with recent European regulations for the reduction of NOx emissions. The new range is available in two sizes, 11 and 14 litres, available in methane and LPG versions, with dedicated codes.

Acquafun 2 LN, completely renewed in its aesthetic and planning design, is ideal for installation in any living context, characteristics which, together with the simplicity of maintenance and performance for the end user, distinguish Acquafun 2 as an ideal solution for production of domestic hot water for residential use.


Latest generation burner with reduced Nox emissions

The innovative hyperstoichiometric and water-cooled burner allows a significant lowering of the polluting values ​​of carbon monoxide and nitrogen produced by combustion, in compliance with the demanding requirements set by EU Regulation 814/2013 which requires emissions equal to or lower than 56 mg/kwh

The high heat output , together with the wide flame modulation, up to 45% of the nominal output, complete the profile of the new burner in terms of performance, offering the user maximum sanitary comfort .


Simple and intuitive command interface

  • Simple and intuitive backlit display with water temperature in °C, flame presence and battery charge level
  • Three control buttons allow you to manage all the functions of the water heater
  • Ease of use for the user due to the buttons with symbols dedicated to the individual user functions

Immediate availability of hot water

The innovative electronic gas valve combined with the pressure regulator allows for immediate delivery of power, thanks to controlled management of the flow meter and NTC temperature probe.

The new electronics allow simplified maintenance and high-level performance.

1. NTC temperature probe

2. Limit thermostat with reset from display

3. Exchanger 4. Cooled burner

5. Electronic gas valve with pressure regulator

6. Flow restrictor

7. Flowmeter

8. Temperature regulator EAF Cold water inlet UAC Hot water outlet


The new Acquafun2 LN range is characterized by reaching the desired hot water temperature quickly, offering optimal comfort.


Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 15.0 kg
  • classe efficienza energetica: A
  • classe energetica produzione acs: A
  • gas: LPG
  • installazione: VERTICAL
  • litri: 11
  • marca: Riello
  • modello: ACQUAFUN 11 GPL_1
  • tipologia : open room
