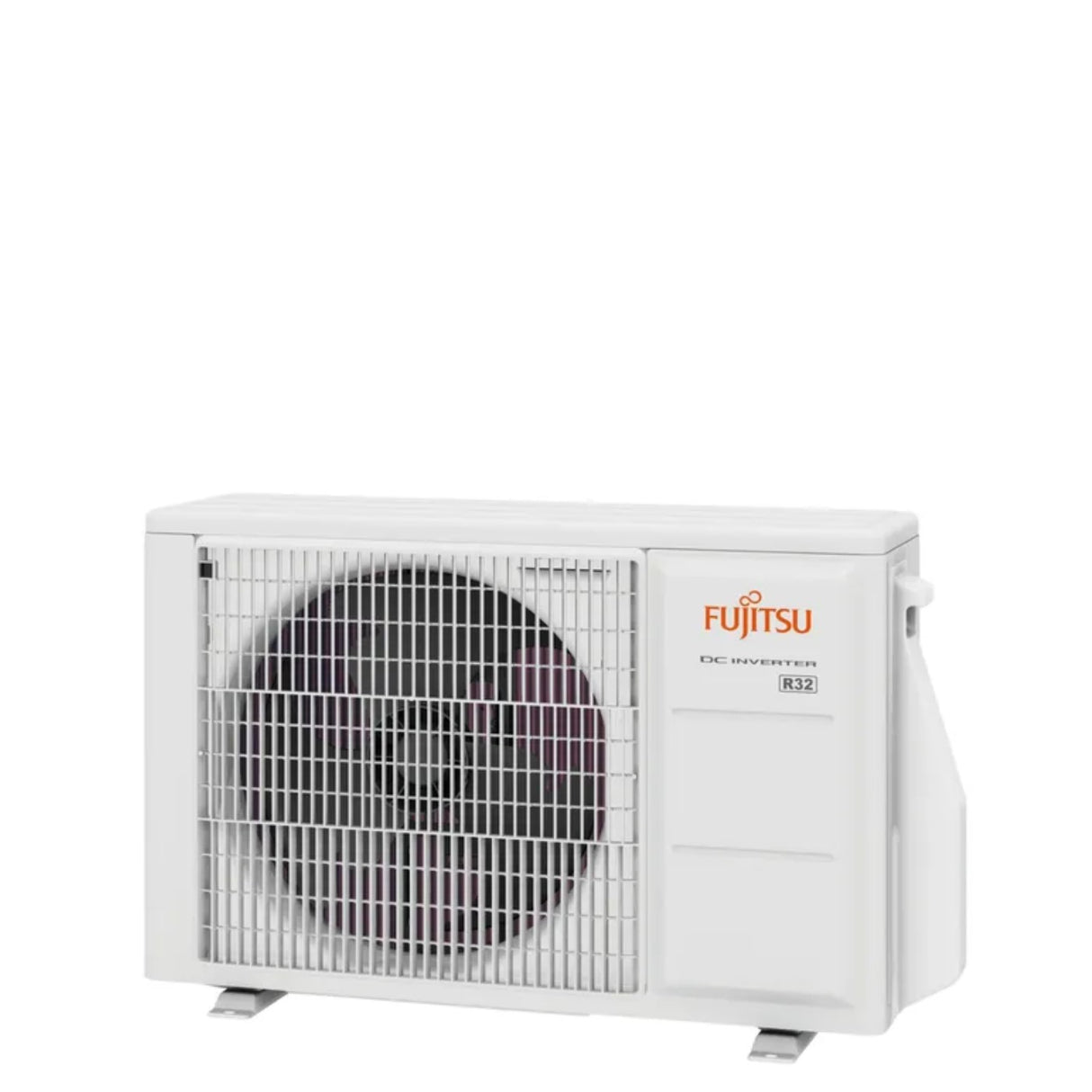

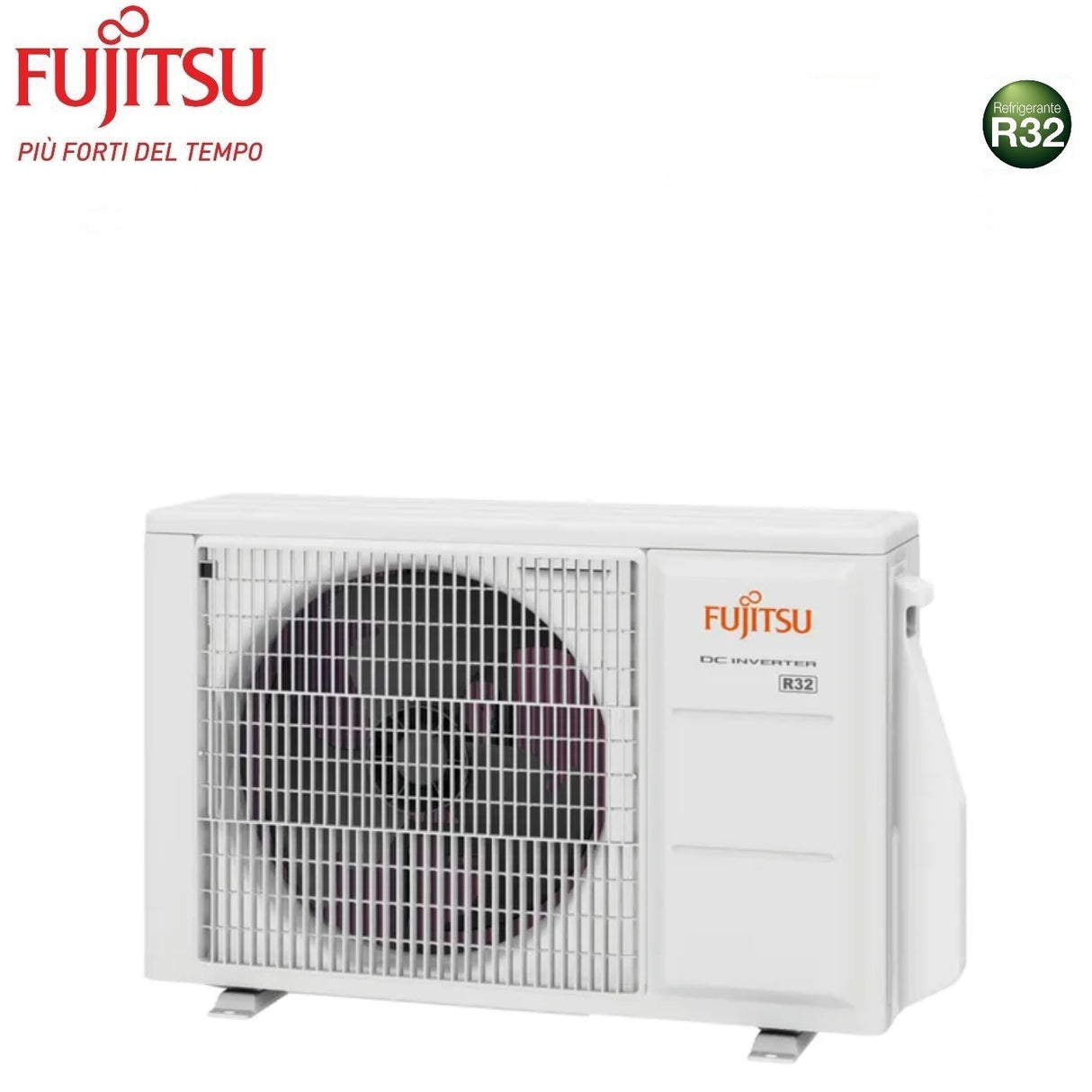

Fujitsu Outdoor Unit Multisplit Motor AOYG14KBTA2 Dual Split R-32 Class A+++/A++
Fujitsu Outdoor Unit Multisplit Motor AOYG14KBTA2 Dual Split R-32 Class A+++/A++ is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
ATTENTION ! ONLY THE OUTDOOR UNIT WILL BE PROVIDED
Technical features
- Outdoor unit catalog code: AOYG14KBTA2
- Outdoor unit code: 3NGF7088
- Number of connectable internal units: Up to 2 internal units
Energy efficiency
- SEER : 8.7
- SCOP: 4.7
- Cooling energy efficiency class: A+++
- Heating energy efficiency class: A++
Performance
- Cooling capacity: 4.0 kW
- Heating capacity: 4.4 kW
- Sound power level: 60~62 dB(A)
- Sound pressure level: 47~49 dB(A)
Electrical data
- Power (V/Hz/Φ): 230/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24°C
Installation data
- Liquid tube diameter: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum pipe length: 30 m
- Maximum height difference between internal unit and external unit: 15 m
Dimensions and weight
- External unit dimensions (HxWxD): 542×799×290 mm
- External unit weight: 33.0 kg
High energy saving
High-tech components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control. High efficiency is guaranteed by a high-efficiency heat exchanger, a large fan and a new refrigerant.
New R32 refrigerant
Its low global warming potential (GWP) of one third compared to the most common refrigerant used for air conditioning represents an advantage for protecting the environment
Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 35.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- gas: R-32
- marca: Fujitsu
- modello: UNITA ESTERNA AOYG14KBTA2_1
