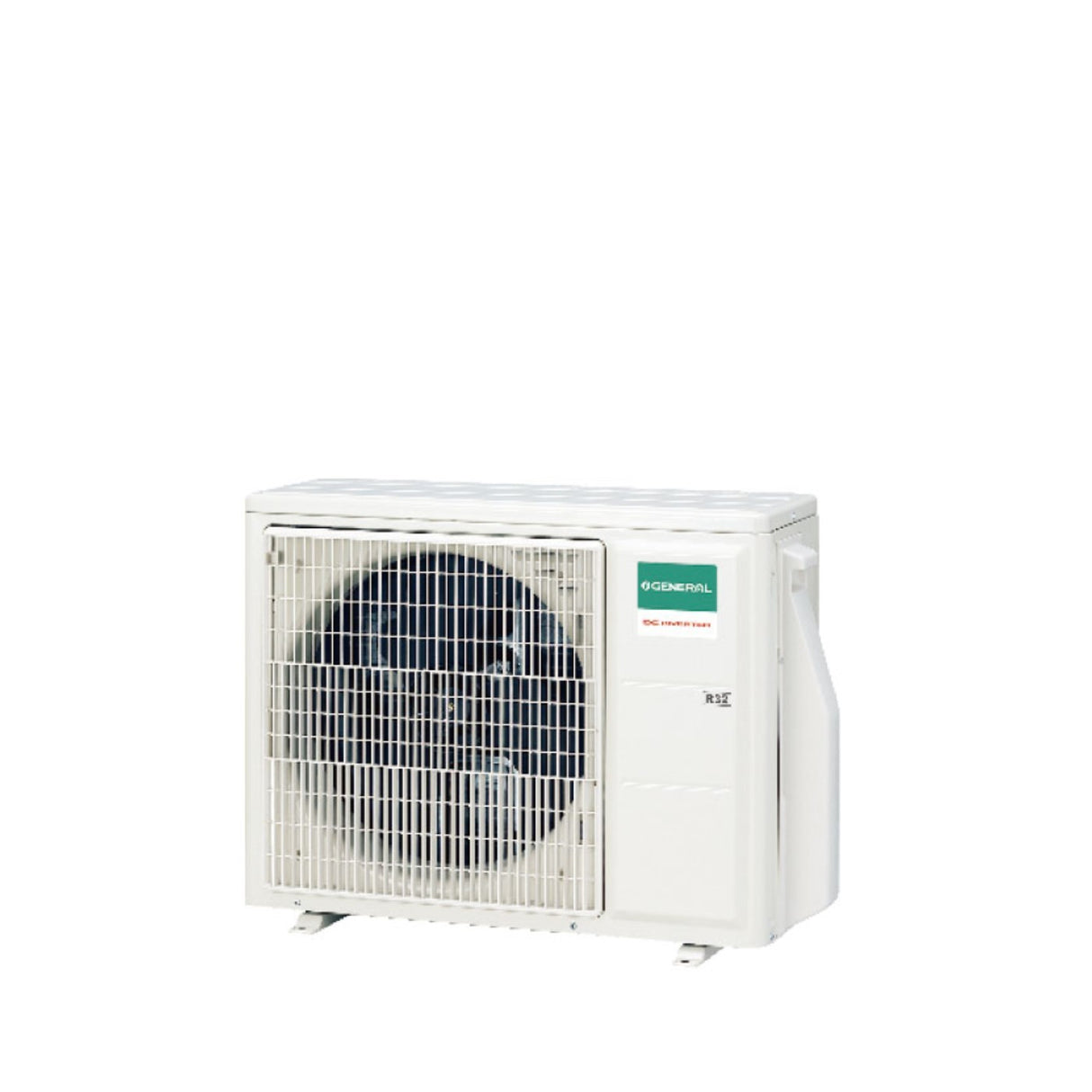

General Fujitsu Outdoor Unit Mutisplit Motor AOHG18KBTA2 Dual Split R-32 Class A++/A+
General Fujitsu Outdoor Unit Mutisplit Motor AOHG18KBTA2 Dual Split R-32 Class A++/A+ is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features
External Unit
Model:
- Outdoor Unit Catalog Code: AOHG18KBTA2
- Max indoor units: up to 2 indoor units
Energy efficiency:
- SEER : 8.6 (W/W)
- SCOP : 4.7 (W/W)
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual energy consumption Cooling: 263 kWh/a
- Annual energy consumption Heating: 1434 kWh/a
Performance:
- Cooling Capacity: 5.0 kW
- Heating Capacity: 5.6 kW
- Cooling absorption: 1.38 kW
- Heating absorption: 1.43 kW
- Sound power level: 60 ~ 62 dB(A)
- Sound pressure level: 47 ~ 50 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
- Pipe diameter Liquid: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum total length of pipes: 30 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions:
- External Unit Dimensions (HxWxD): 632×799×290 mm
- External Unit Weight: 37 Kg
Attention, only the external unit will be supplied
5 year guarantee
Fujitsu General Air Conditioning SPA Offers the Possibility of Freely Extending the Legal Warranty on its Products by a further 3 years . The extension of the Warranty is offered to the Installer who maintains the Air Conditioner who will offer it to his Customer.
The warranty can be activated at https://g-it.fujitsu-general.com/garanzia
Multisplit system
GENERAL 's Multisplit Inverter systems today represent a range of products that are at the top of the category in terms of performance and energy efficiency, especially when they are called upon to function as a heat pump, which is why they are also widely used as a primary heating system. The technology of Multisplit Inverter systems is today applied both in the residential sector but also in the commercial and tertiary sectors where variations in thermal load are continuous and sudden. Thanks to the technology of the new DC inverter compressors, the desired room temperature is reached more quickly than conventional models and is maintained with a deviation of just 0.5°C.
High Energy Savings
DC technology is used for compressor, indoor/outdoor fan motor and inverter control
R-32 gas
The extremely high efficiency is achieved thanks to the Lamba heat exchanger, the tangential fan and the new R32 refrigerant.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 35.0 kg
- costospedizionecad: IT9;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
- marca: General Fujitsu
- modello: AOHG18KBTA2
