Important Notice on Regulations for Fluorinated Gases IN ITALY
In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018,
equipment containing fluorinated gases that is not hermetically sealed can only be
sold if installed by a certified company.
By law, each sale must be recorded in the Fluorinated Gas Database, including a
declaration from the buyer ensuring that the installation complies with the
regulations. Therefore, before completing the order, it will be necessary to provide
this mandatory declaration.
Technical features

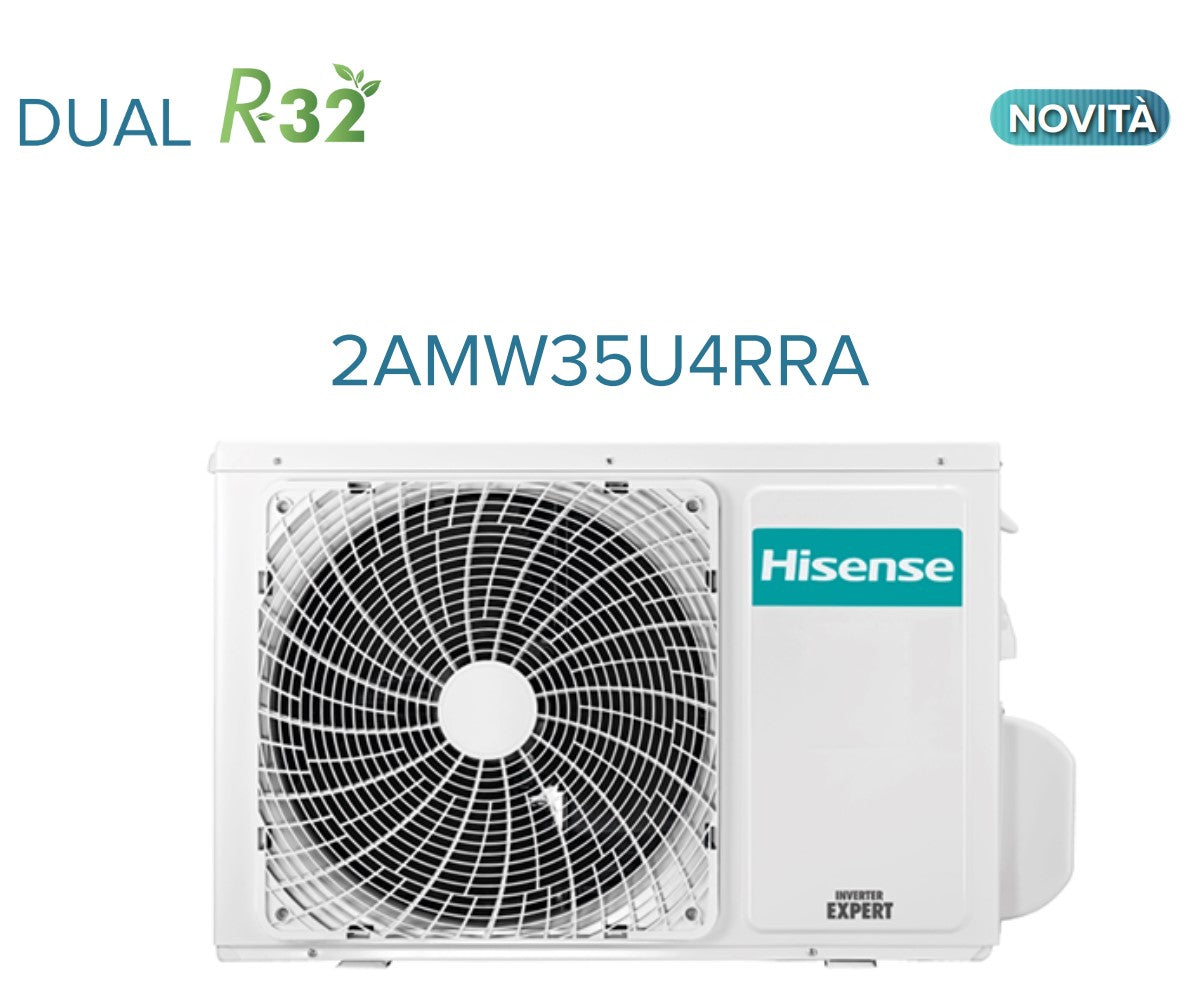

External Unit
Model:
- Outdoor Unit catalog code: 2AMW35U4RRA
- Max indoor units: up to 2 indoor units
Energy efficiency:
- SEER: 6.63
- SCOP: 4.12
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual energy consumption Cooling: 185 kWh/a
- Annual energy consumption Heating: 1291 kWh/a
Performance:
- Cooling Capacity: 3.5 kW
- Heating Capacity: 3.85 kW
- Std Cooling absorption: 0.85 kW
- Std Heating absorption: 0.85 kW
- Sound power level: 62 dB(A)
- Sound pressure level: 47~53 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -15° ~ 48° C
- - Heating: -15° ~ 24° C
Installation Data:
- Pipe diameter Liquid: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum length of pipes: 30 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions:
- External Unit Dimensions (WxHxD): 730×540×260 mm
- External Unit Weight: 34 Kg
Attention, only the external unit will be supplied
The external machine can be connected with the following Internal Units :
- NEW COMFORT
- ENERGY PRO
- NEW ENERGY
- SILENTIUM PRO
- CASSETTE
- CHANNELED
- CONSOLE
3 year warranty (5 on the compressor)
Multisplit Outdoor Unit Technologies
High Efficiency DC Twin Rotary Inverter Compressor
The design of the new double rotor BLDC Inverter compressor guarantees better balancing and reduced vibrations. This translates into the maximum level of silence and excellent performance in terms of efficiency and energy saving.
DC drive technology with 180° sine wave
The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.
Curve control
Compressor with rubidium magnet
Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption
Electronic expansion valve
The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant of all operating indoor units .
Wide voltage range operation
The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.
Exchanger design: designed to improve its efficiency
The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.
