Description
Description
Technical features
- Outdoor unit catalog code: M5OE-42HFN8-Q
- EAN: 8033638102435
- Number of connectable internal units: 5
Energy efficiency
- EER : 3.21
- COP: 3.71
Performance
- Cooling capacity: 12.30 kW
- Heating capacity: 12.30 kW
- Cooling absorption: 3.83 kW
- Heating absorption: 3.30 kW
- Sound power level: 68 dB(A)
- Sound pressure level: 62 dB(A)
Characteristics
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -15° ~ 50° C
- - Heating: -15° ~ 24° C
Installation data
- Liquid tube diameter: 6.35 mm (1/4") x5
- Gas pipe diameter: 9.52 mm (3/8") x4 + 12.70 mm (1/2") x1
- Maximum overall piping length: 80 m
- Maximum height difference between internal unit and external unit: 10 m external unit above
- Maximum height difference between internal unit and external unit: 15 m external unit above
Dimensions and weight
- External unit dimensions (WxDxH): 946x410x810 mm
- External unit weight: 73.3 kg

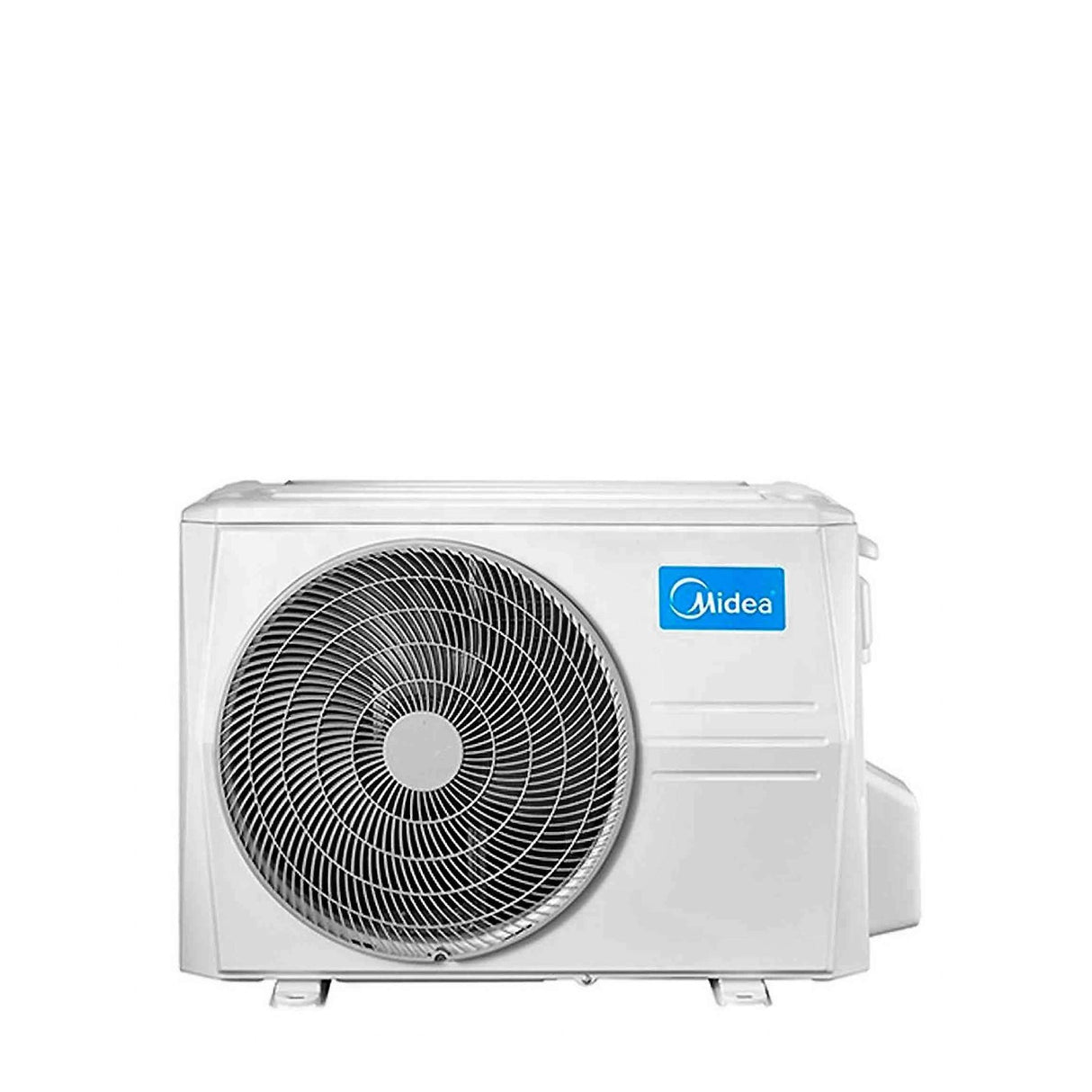

Midea multisplit outdoor unit
Midea external units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond-cut shape, without sharp edges and without visible screws at the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly developed fan, designed to reduce noise to a minimum. Finally, the T-shaped rib on the top panel allows for greater strength and stability.
Free joint combination
The units of the Multi range can be combined with different types of internal units of different sizes, in order to obtain the most correct configuration for the installation environment.
High length of pipes
The outdoor units of the multi range allow a long pipe length and a very high difference in height.
Condensation control
The units of the Multi line can operate in cooling mode even at low external temperatures to air condition all environments where cooling is required even in the winter season.
Low noise
The adoption of new compressors and latest generation sound-absorbing materials allows the units of the Multi range to be very silent.
Electronically controlled expansion valves
The flow of refrigerant directed towards each indoor unit is managed through an electronically controlled expansion valve, in order to obtain maximum precision in managing the refrigerant flow
Diamond Design
The outdoor units feature a unique diamond-cut shape that has no visible screws on the front of the unit.
Diagnostic monitor
On the units there is an alphanumeric display which, in addition to indicating the fault codes, allows you to read all the operating parameters of the system to simplify maintenance and assistance operations
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
Scheda Tecnica
Scheda Tecnica
- gas: R-32
- marca: Midea
- modello: M5OE-42HFN8-Q_1
- potenza btu: 9000+9000+9000+9000+9000
- superficie riscaldabile mq: 25/25/25/25/25
