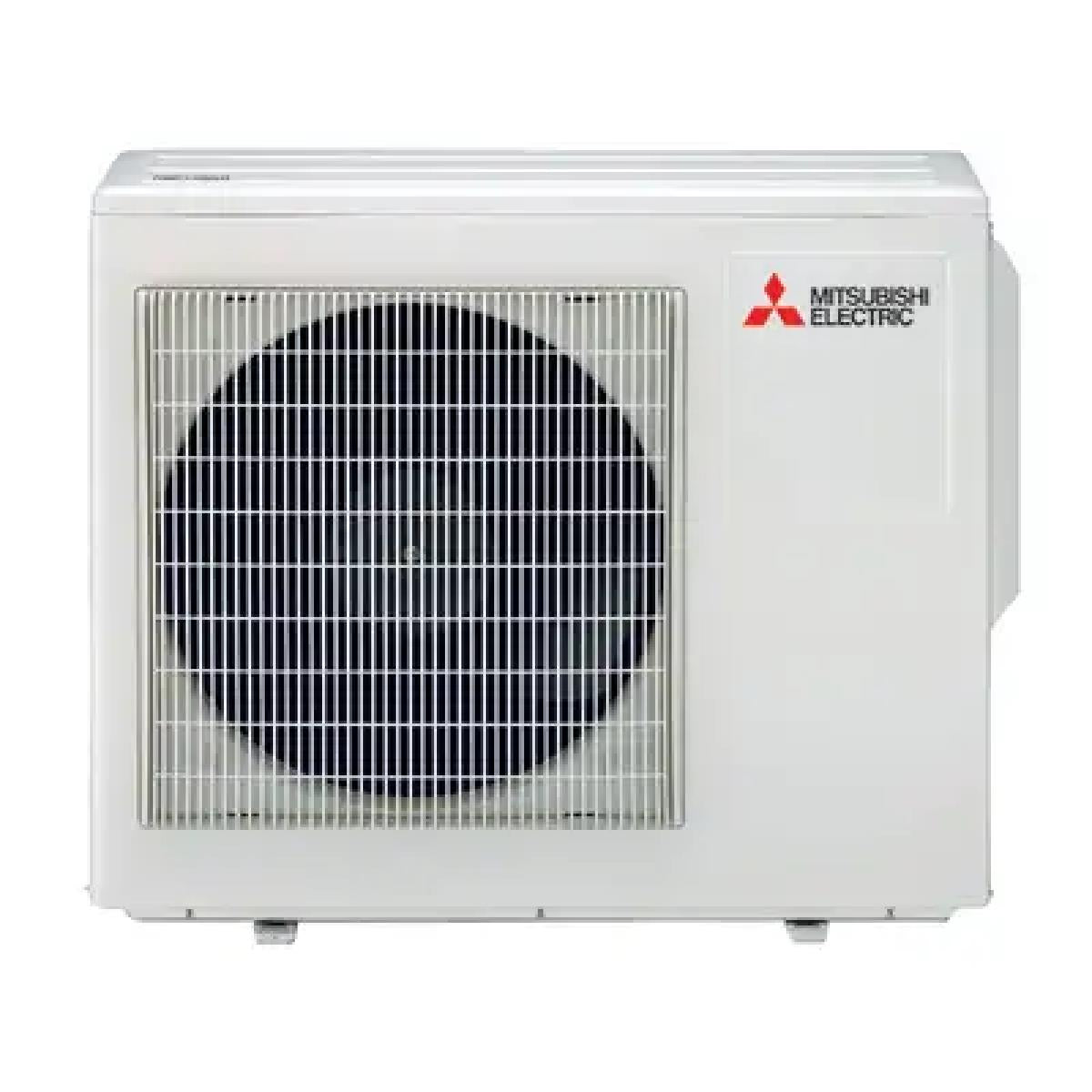

Outdoor Unit Mitsubishi Electric Multisplit Motor MXZ-3HA50VF Trial Split R-32

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Technical features

External Unit:

Model:

• Catalog code: MXZ-3HA50VF

Energy efficiency:

• SEER/SCOP (W/W): 7.26/4.02
• Energy Efficiency Class (cooling): A++
• Energy Efficiency Class (heating): A+
• Annual energy consumption cooling/heating kWh/: 241/1394

Performance:

• Nominal cooling capacity (kW): 5.0
• Nominal heating capacity (kW): 6.0
• Power absorbed in cooling (kW): 1.26
• Power absorbed in heating (kW): 1.30
• Min-max external unit sound pressure (dB-A): 46/50
• Nominal sound power dB(A): 61

Characteristics:

• Power (V/Hz/Φ): 230/50/1
• Refrigerant gas: R-32
• Refrigeration lines:
  - Liquid-gas diameter: 6.35x3 - 9.52x3
  - Max length: 50 m
  - Max height difference: 15 m
• Guaranteed operating range:
  - Cooling °C: -10 ~ +46
  - Heating °C: -15 ~ +24

Dimensions:

• HxWxD (mm):710 x 840(+30) x 330 (+66); 57kg

---

General characteristics

Mitsubishi multisplit

DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner based on the cooling or heating request. Compared to traditional fixed speed air conditioners (On/Off), inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption .

R-32 gas

The R32 refrigerant gas complies with European directives on the reduction of the greenhouse effect, presenting a lower GWP than R410A and not damaging the ozone layer.

The advantages?

• High energy efficiency
• Reduction in the amount of refrigerant gas used
• Reduced environmental impact
• Easily chargeable and recoverable as pure gas
• Low toxicity and flammability

Compactness and versatility

The dimensions of the outdoor unit are extremely compact in order to limit the space occupied on the terrace or in the garden as much as possible. The extensive development of the pipes allows for a vast choice of installation location.

Above class A++/A+ on a seasonal basis

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the careful design of all components and the use of cutting-edge technologies, energy efficiency reaches extraordinary levels even on a seasonal basis. In particular, the Smart Line obtains SEER and SCOP (seasonal efficiency indices) values ​​which allow it to reach values ​​beyond Class A++/A+ across the entire range.

Maximum silence for maximum comfort

The quality of the environment in which we stay also depends on the perceived noise level. Mitsubishi Electric air conditioners help maintain the highest acoustic comfort by reducing noise emissions to a minimum.

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 40.0 kg
• marca: MITSUBISHI ELECTRIC
• modello: MXZ-3HA50VF
