Outdoor Unit Multisplit Motor Midea M2OE-18HFN8-Q R-32 Dual Split Class A++/A+
Outdoor Unit Multisplit Motor Midea M2OE-18HFN8-Q R-32 Dual Split Class A++/A+ is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Important Notice on Regulations for Fluorinated Gases IN ITALY
In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.
By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.
ATTENTION ONLY THE OUTDOOR UNIT WILL BE PROVIDED
Technical features
- Outdoor unit catalog code: M2OE-18HFN8-Q
- Number of connectable internal units: 2
Energy efficiency
- SEER : 6.1
- SCOP: 4
- Cooling energy efficiency class: A++
- Heating energy efficiency class: A+
- Annual energy consumption in cooling: 304 kWh/a
- Annual energy consumption in heating: 1537 kWh/a
Performance
- Cooling capacity: 5.28 kW
- Heating capacity: 5.57 kW
- Cooling absorption: 1630 W
- Heating absorption: 1500 W
- Sound power level: 65 dB(A)
- Sound pressure level: 56 dB(A)
Electrical data
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -15° ~ 50°C
- - Heating: -15° ~ 24°C
- Liquid tube diameter: 6.35 mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum pipe length: 25 m
- Maximum height difference between internal unit and external unit: 10 m External unit in position higher than internal units
- Maximum height difference between internal unit and external unit: 15 m External unit positioned lower than internal units
Dimensions and weight
- External unit dimensions (WxDxH): 800x333x554 mm
- External unit weight: 35.5 kg

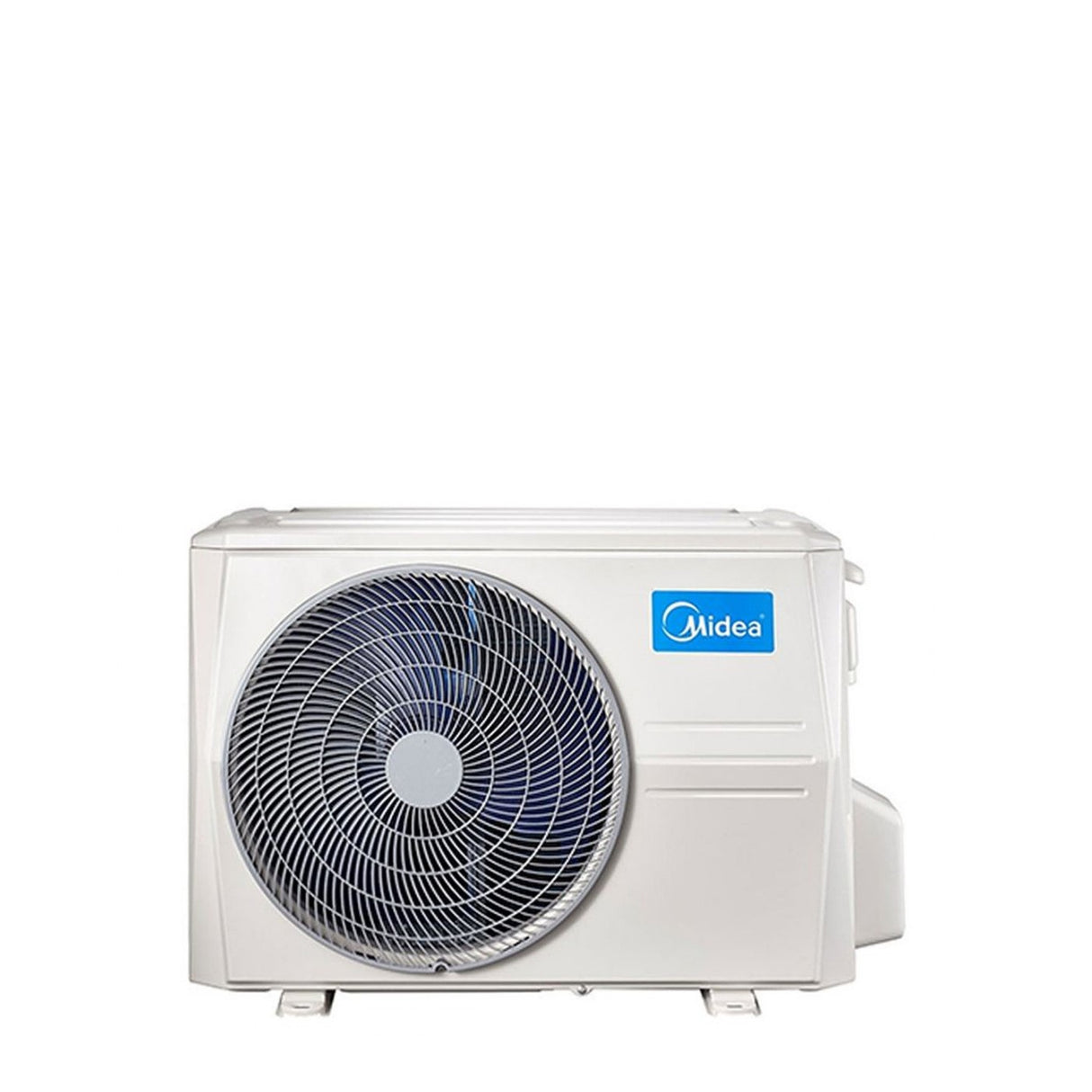

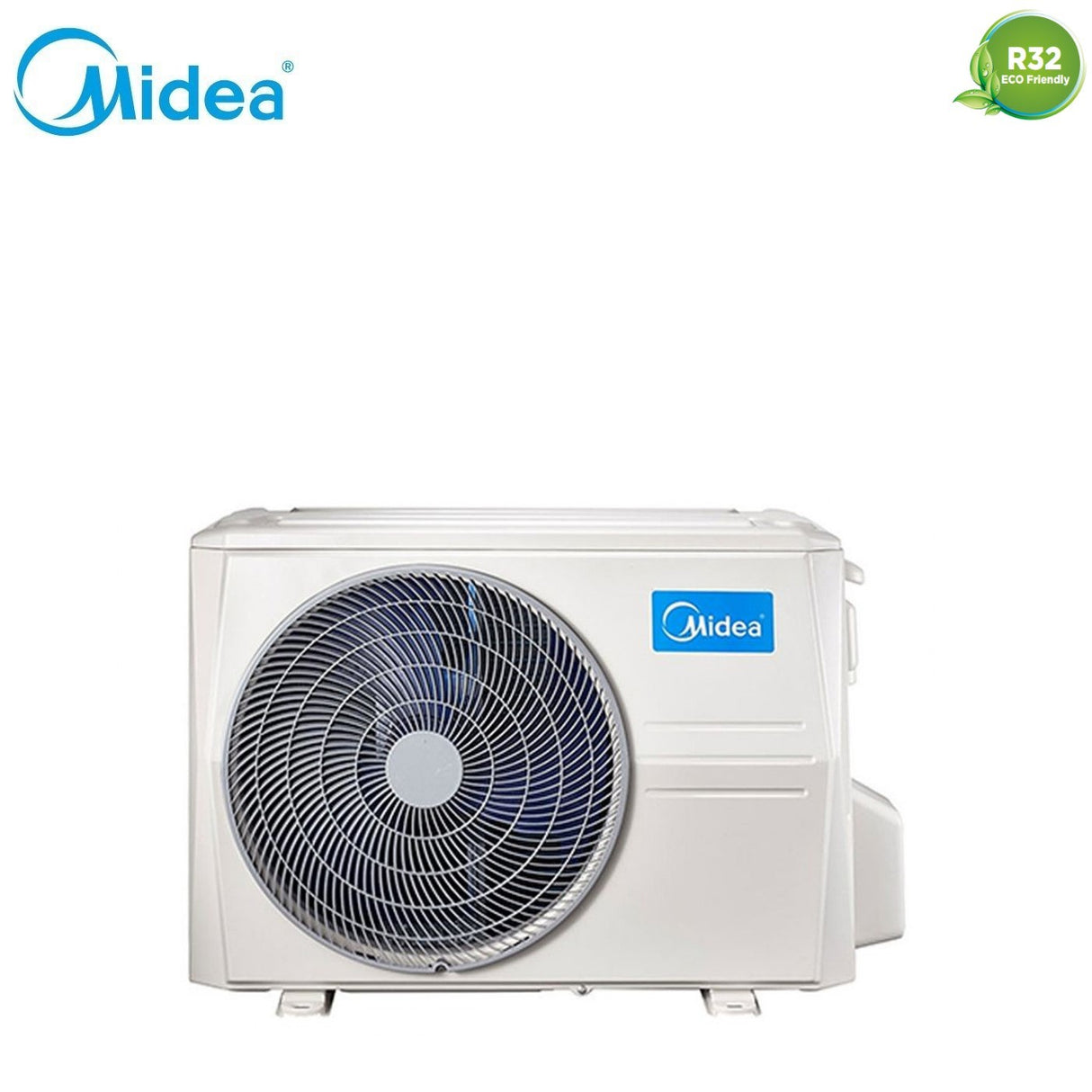

Midea Mutlisplit Outdoor Unit
Midea external units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond-cut shape, without sharp edges and without visible screws at the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly developed fan, designed to reduce noise to a minimum. Finally, the T-shaped rib on the top panel allows for greater strength and stability
Free Combination
The units of the Multi range can be combined with different types of internal units of different sizes, in order to obtain the most correct configuration for the installation environment
Condensation control
The units of the Multi line can operate in cooling mode even at low external temperatures to air condition all environments where cooling is necessary even in the winter season
Low noise
The adoption of new compressors and latest generation sound-absorbing materials allows the units of the Multi range to be very silent
Electronically controlled expansion valves
The flow of refrigerant directed towards each indoor unit is managed through an electronically controlled expansion valve, in order to obtain maximum precision in managing the refrigerant flow
High length of pipes
The outdoor units of the multi range allow a long pipe length and a very high difference in height
Diamond Design Outdoor Unit
Innovative diamond cut shape with no sharp edges and no visible screws. The air exhaust grille contains a newly designed fan to reduce noise to a minimum.
Diagnostic monitor
On the units there is an alphanumeric display which, in addition to indicating the fault codes, allows you to read all the operating parameters of the system to simplify maintenance and assistance operations
Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
Scheda Tecnica
Scheda Tecnica
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: Midea
- modello: M2OE-18HFN8-Q_1
- superficie riscaldabile mq: 35/35
