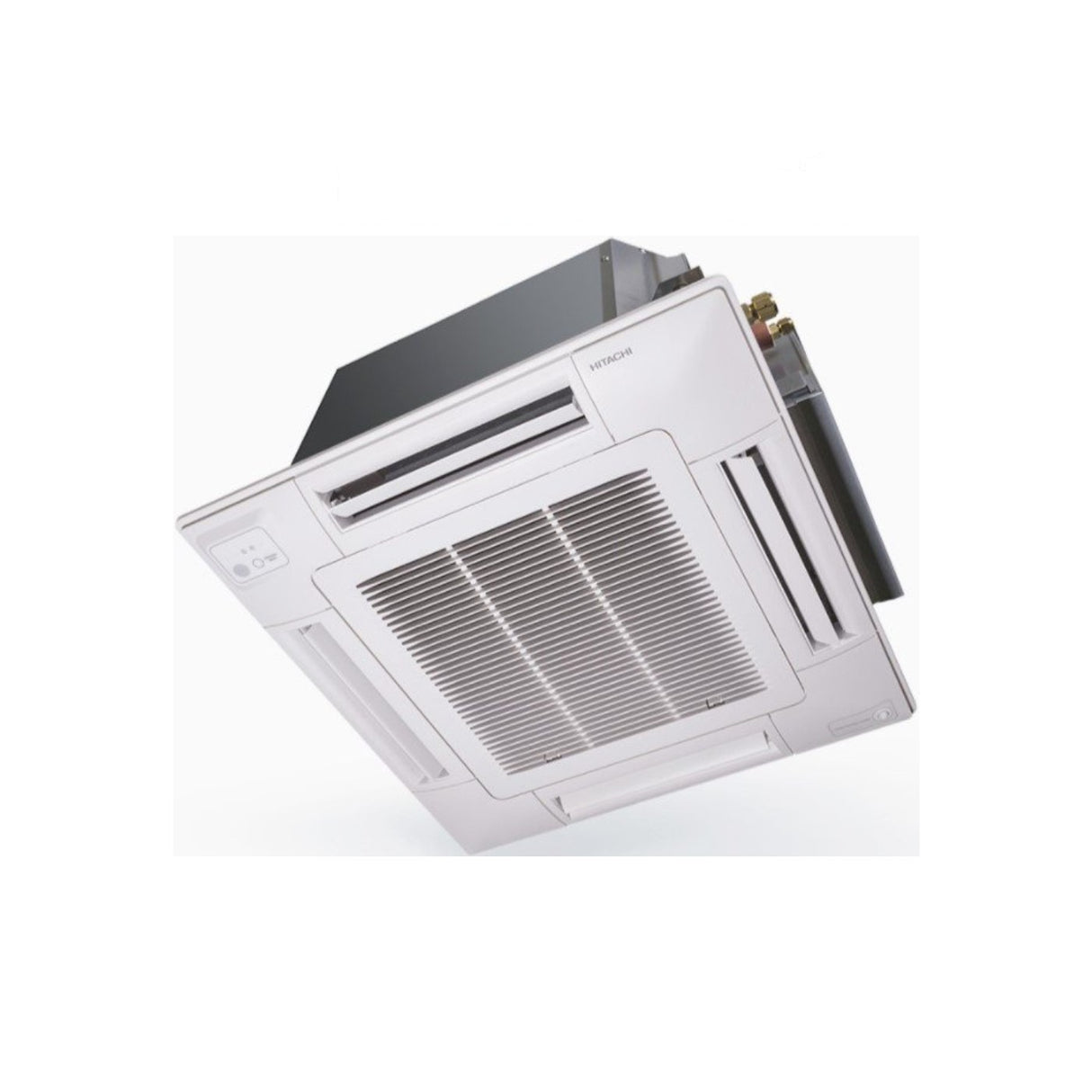

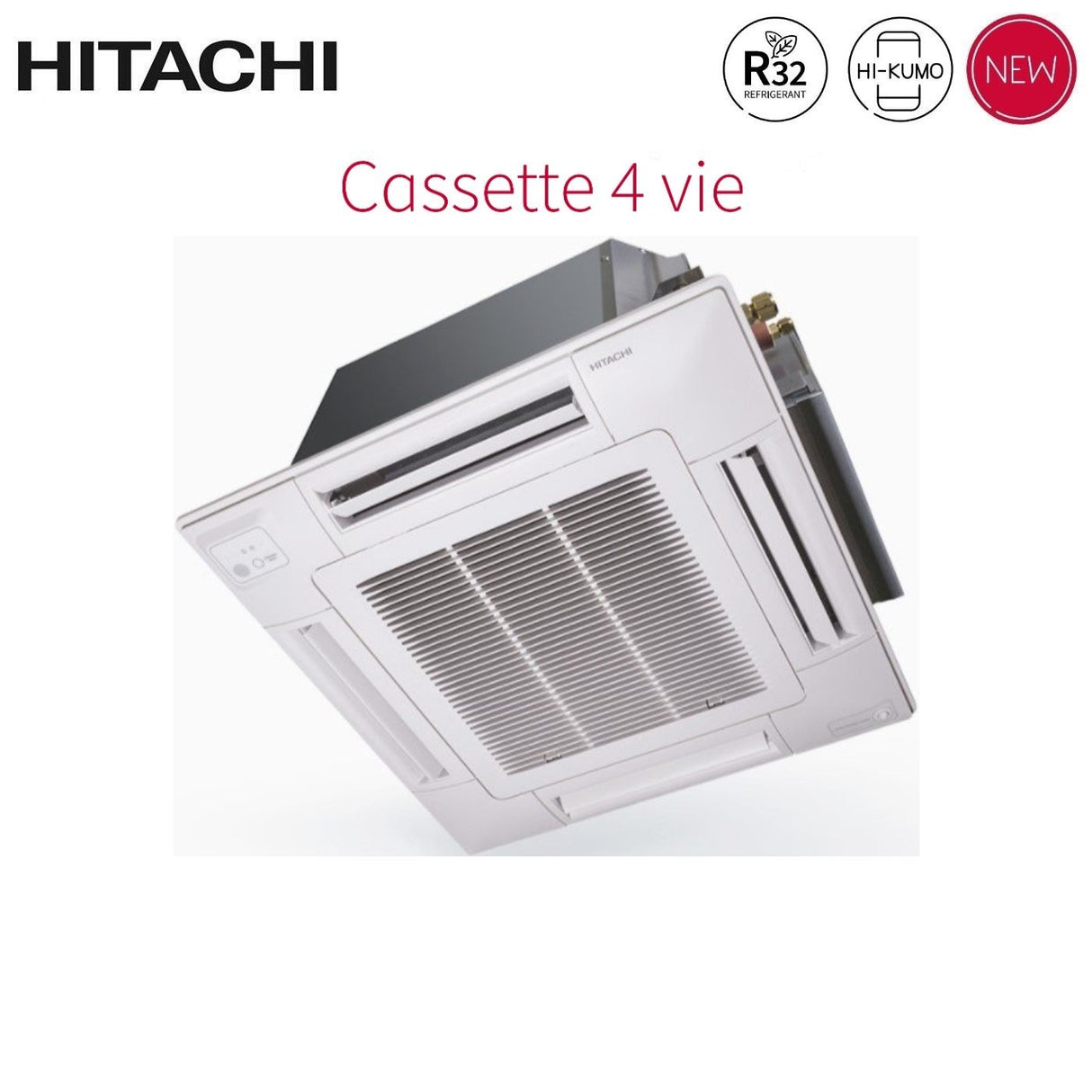

Hitachi 4-Way Cassette Indoor Unit 12000 Btu RAI-35RPE R-32 Wi-Fi Optional with Grille Included
Hitachi 4-Way Cassette Indoor Unit 12000 Btu RAI-35RPE R-32 Wi-Fi Optional with Grille Included is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Important Notice on Regulations for Fluorinated Gases IN ITALY
In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.
By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.
ATTENTION ONLY THE INTERNAL UNIT WILL BE SUPPLIED
Technical features
- Indoor unit catalog code: RAI-35RPE
- Panel: P-AP56NAMS
- Power: 12000 Btu
- Cooling capacity: 3.5 kW
- Heating capacity: 4.8 kW
- Treated air: 505 m 3 /h
- Sound power level: 56 dB(A)
- Sound pressure level: 27~40 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal unit dimensions (HxWxD): 285x570x570 mm
- Internal unit weight: 20 kg
- Panel dimensions (HxWxD): 32x620x620 mm
Optional commands
- Wi-Fi Card: SPX-WFG02
- Remote control with receiver: SPX-RCKA3
- Simplified wall control: SPX-RCDB
- Wall control with weekly timer: SPX-WKT3
4 Way Cassette The Hitachi Cooling & Heating unit most loved by Architects for Residential Air Conditioning
The disappearing unit
A simple panel, this is what you see when you choose the 4-way cassette from Hitachi Cooling & Heating. Recessed installation is preferred by architects and designers. The aesthetic impact is minimal and is ideal for installation in false ceilings
The shape of the air
The extended throw and 4-way distribution of the air flow through the adjustable fins gives the environment a uniform and pleasant 360° climate
Cleaning and control with a simple touch
Thanks to the panel, maintenance of the Hitachi Cooling & Heating 4-way Cassette is really easy to use and clean. Switching on and off is very simple via the Hi-Kumo app , you can do it at any time of the day, even when you are at work or traveling
Silence
Great comfort in the environment thanks to the low sound impact which reaches 27 dB(A)
Easier cleaning of filters
The panel opens with a simple touch for quick and easy cleaning
More comfort thanks to the independent control of the deflectors
The four air supply deflectors can be configured individually. Furthermore, they have been designed to avoid the formation of annoying air currents and reduce pressure losses. The deflector design, shaped to exploit the COANDA effect, avoids direct incidence of air flow and improves user comfort
False ceiling installation
Thanks to the reduced height of just 285 mm it can be easily installed in any false ceiling
Compatible with the Hi-Kumo Wi-Fi system
Thanks to the Hi-Kumo APP you can turn it on, off, change the temperature or make programming wherever you are in the world. The system can be controlled via a smartphone with internet connection to the Wi-Fi device (Optional)
Built-in condensate drain pump
For maximum installation safety and peace of mind, the system includes the condensate drain pump which allows a useful lifting of 850 mm from the false ceiling level
Energy savings of up to 14% with the presence sensor
The presence sensor allows you to reduce consumption during the room occupancy phases, keeping the environment comfortable and generating significant energy savings
Energy Class A++
High efficiency to achieve the best comfort with the lowest consumption
Control options
The system can be controlled using the remote control or with the simplified wall control or with a weekly timer
Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- gas: R-32
- marca: Hitachi
- metri quadri : 25-40 m2
- modello: UNITA INTERNA RAI-35RPE_1
- potenza btu: 12000
- superficie riscaldabile mq: 35
