DAIKIN
Garanzia Italiana 24 mesi
SKU: Unità Interna FCAG60

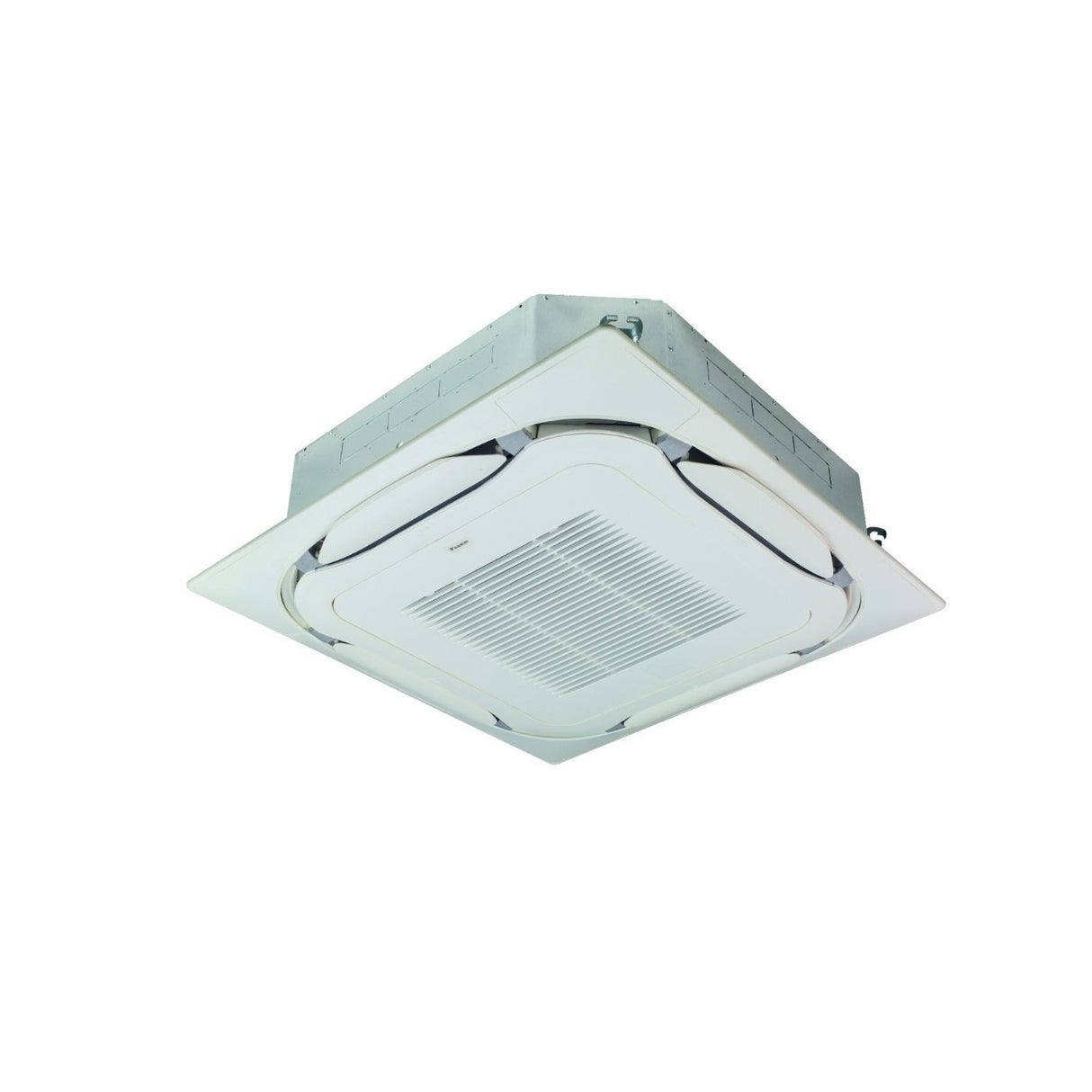

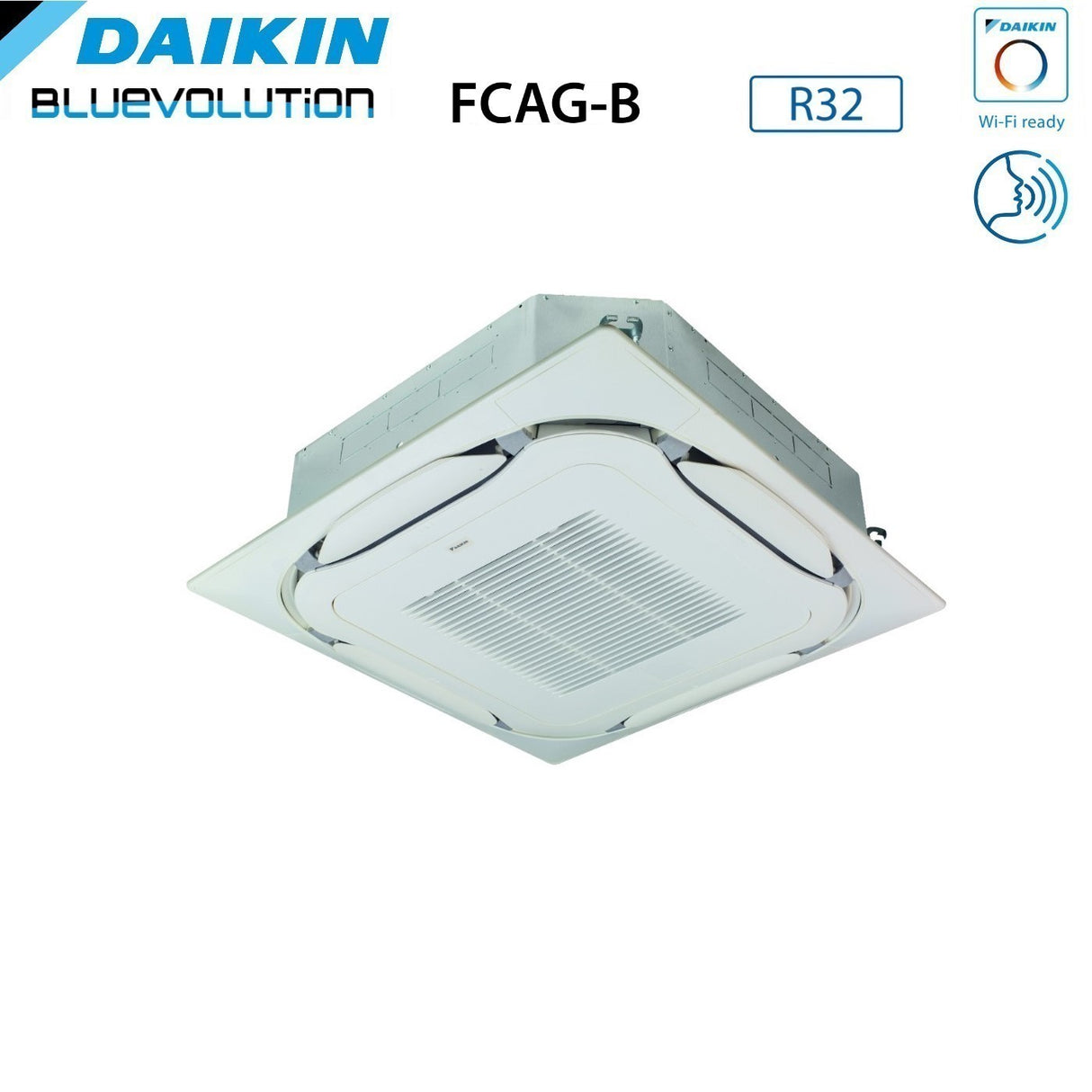

Daikin Bluevolution Round Flow Cassette Indoor Unit 21000 Btu FCAG60B R-32 Wi-Fi Optional With Standard Grille Included

€1.229,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

Model:

  • Indoor unit catalog code: FCA60B
  • Standard Grid Code: BYCQ140E
  • Power: 21000 Btu
  • Cooling Capacity: 5.70 kW
  • Heating Capacity: 7.0 kW
  • Air flow: 11.2 m 3 /min
  • Sound Power: 51 dB(A)
  • Sound Pressure: 28 ~33 dB(A)
  • Liquid pipe diameter: 6.35 (1/4")
  • Gas pipe diameter: 12.70 mm (1/2")
  • Internal Unit Dimensions (HxWxD): 204x840x840 mm
  • Internal Unit Weight: 19 Kg
  • Grid dimensions (HxWxD): 50x950x950 mm
  • Grill weight: 5.4 kg
  • Optional Wi-Fi card (Code BRP069B82  )
  • Optional infrared remote control (Code BRC7FA532F )
  • Optional Madoka White Wired Control (Code BRC1H519W )
  • Optional Madoka Silver Wired Control (Code BRC1H519S )
  • Optional Madoka Black Wired Control (Code BRC1H519K )
Attention, only the internal unit will be supplied

The FCAG-B model can be connected to the following external units:


Daikin Round Flow Cassette

Daikin Italy , the Italian branch of the Japanese multinational world leader in air conditioning and heating systems, as well as for the entire cold chain in the refrigeration sector, announces the new Round Flow Cassette , recognized as the most efficient on the market thanks to the technology the avant-garde and excellent design that distinguishes it.

To develop the new Round Flow Cassette, Daikin started from research that revealed the three most important aspects for users: small size , comfort level and aesthetics .


Compact and attractive design

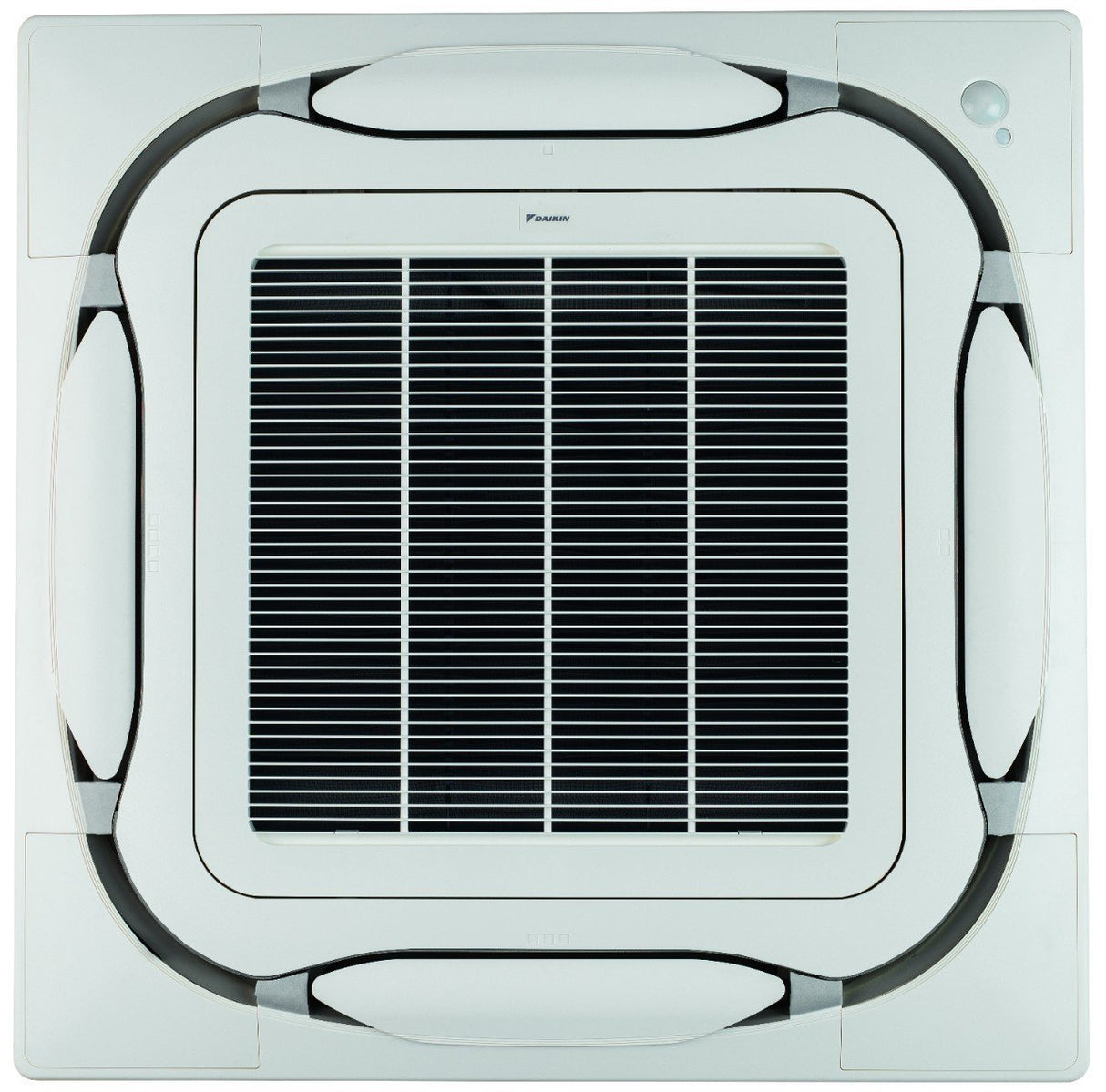

In response to customer needs, the new panel expresses elegance and high technology; It is essential in appearance and easily adapts to any type of furniture. The air intake grilles are invisible and give it a very refined look.

With a height of 204 mm , the new Daikin Round Flow Cassette is the most compact available on the market and offers greater design flexibility to adapt to the environment and different structural constraints


The greatest possible comfort

Starting from the proven design of the Round Flow cassette, Daikin has applied new technology, increasing the comfort that can be achieved in an environment and energy efficiency.

Its significant 360° air jet and smart sensors guarantee homogeneous temperatures and air distribution in every point of the room (operating only when necessary and thus avoiding energy waste). Thanks to the new larger deflectors and the Coanda effect, the air flow is more uniform.

Individual control and/or closing via wired remote control allows the device to be customized so that it can adapt to specific room configurations.

The new Active Circulating Air Flow logic was then added. Activated when the device starts, this new function allows you to reach the set temperature as quickly and efficiently as possible. Active Circulating Air Flow also allows for faster start-up and energy savings of 5% in cooling mode and up to 15% in heating mode

The Round Flow Cassette, with a 360° air jet, offers the best comfort available on the market and increases efficiency by up to 50% thanks to self-cleaning technology.
Intelligent technologies for a comfortable climate
The 360° air jet of the Daikin Round Flow Cassette eliminates the problem of cold air currents or uneven air distribution. The Intelligent Eye sensor detects the presence of people and directs the air away from them, while the floor sensors ensure a consistent temperature from floor to ceiling.
Daikin's Round Flow cassette, with 23 possible airflow configurations , can adapt to any room layout. The remote control, adjustable deflectors and optional locking kit help create 2,3 or 4-way configurations that allow installation in corners, near walls or in irregularly shaped environments . This feature is particularly useful when rearranging rooms, because it allows you to change the air flow without moving the unit .
Greater energy efficiency increases savings
The Daikin Round Flow Cassette is equipped with the exclusive self-cleaning filter panel which reduces maintenance costs and increases savings thanks to an energy efficiency up to 50% higher than normal cassettes. The intelligent Eye sensor automatically switches the cassette into energy saving mode or turns it off when it detects no people in the environment, reducing energy costs by up to 27% .
Easy maintenance
Daikin's self-cleaning Round Flow Cassette is equipped with the exclusive self-cleaning filter panel, which reduces maintenance times and costs. Furthermore, an always clean filter improves energy efficiency by up to 50% compared to normal cassettes, guaranteeing significant savings. The Intelligent Eye sensor detects the presence of people and directs the air away from them, as well as reducing energy costs by 27% when it automatically switches to energy saving mode or turns the unit off if there are no people in the room.
Forget the ladders and the cleaning technician: all you have to do to remove dust from the collection box is connect it to a regular vacuum cleaner.
Manutenzione FCAG

Voice Control

The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

FTXM-R Alexa


Programming

Set a schedule to define system operating times, and create up to six different actions per day

Spunta Program the room temperature and operating mode

Spunta Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Spunta Check the system status

Spunta Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Spunta Change the room temperature

Spunta Activate Powerful mode to enhance operation

The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection

Daikin App


Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 1.0 kg
  • marca: DAIKIN
  • modello: Unità Interna FCAG60
