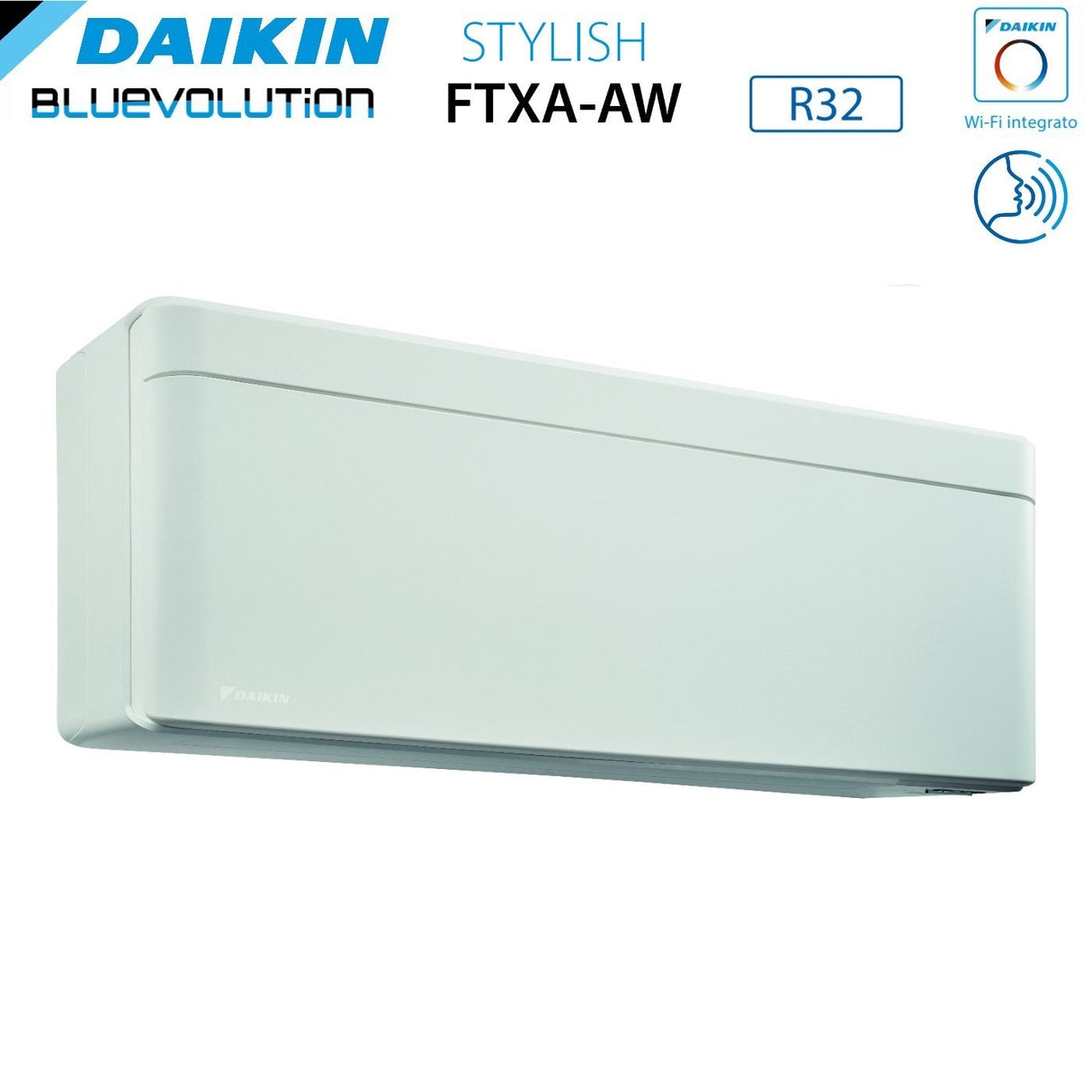

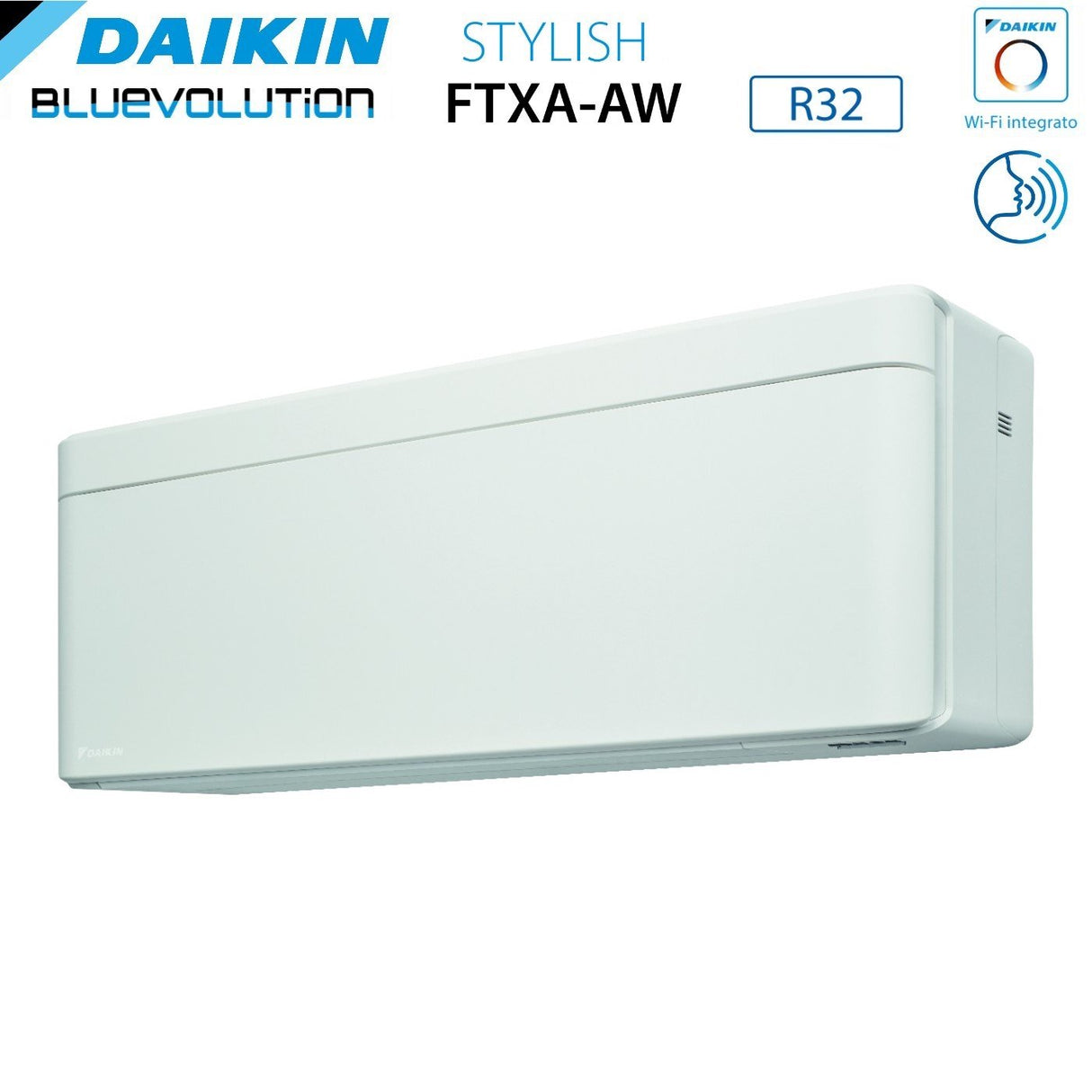

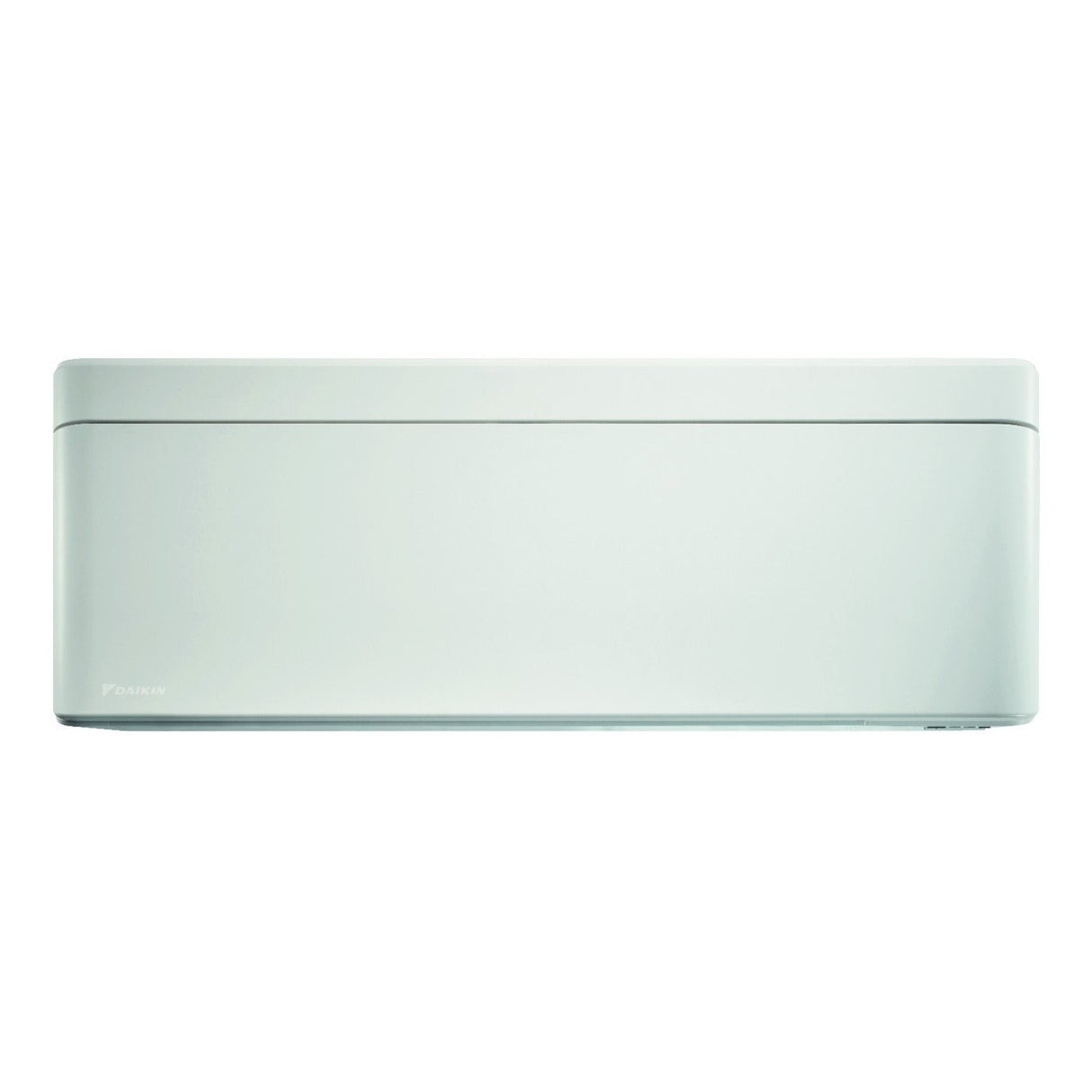

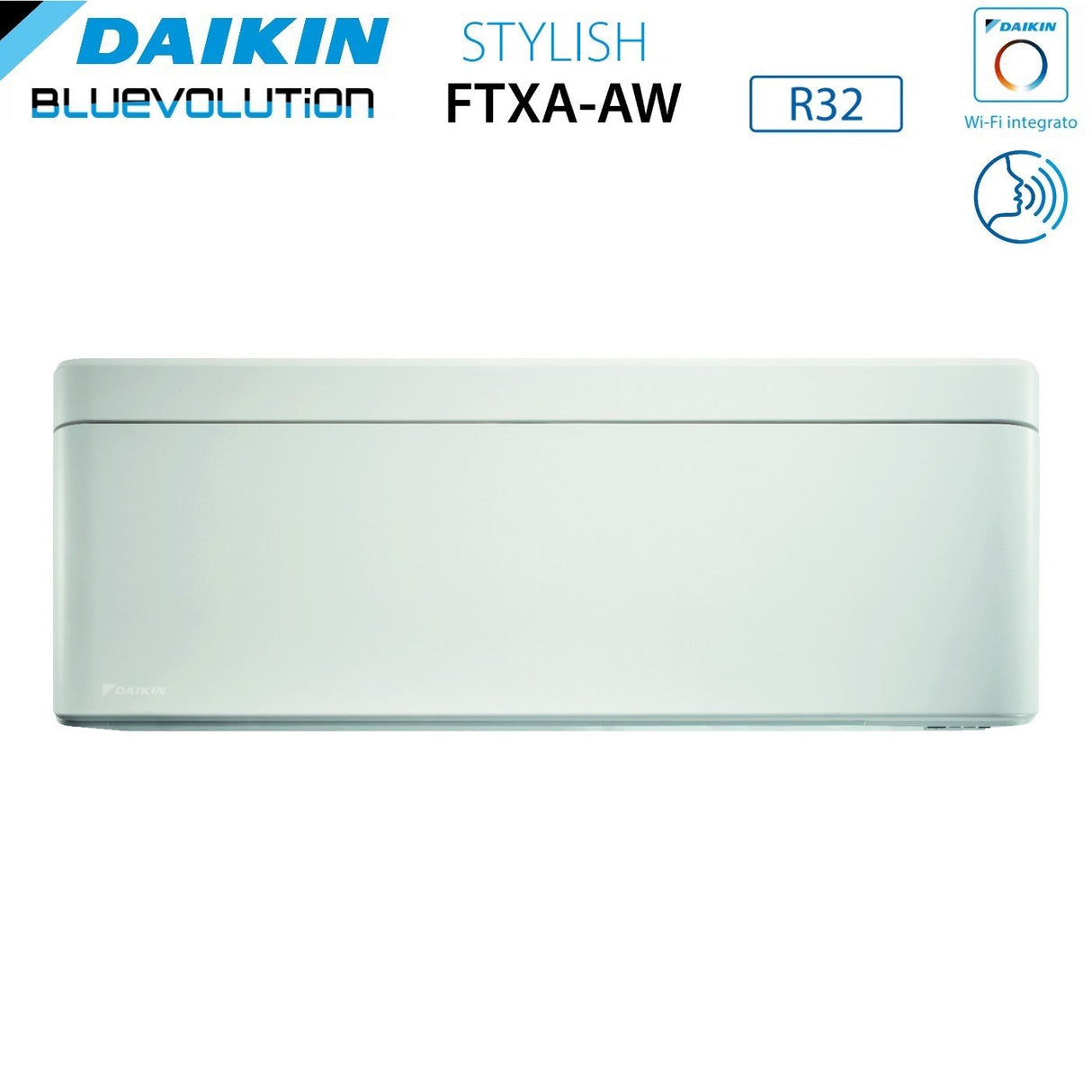

Daikin Bluevolution Wall Mounted Indoor Unit STYLISH WHITE series 9000 BTU FTXA25AW R-32 Integrated Wi-Fi White Color

Technical features

Model:

• Indoor unit catalog code: FTXA25AW
• Technology: ErP INVERTER
• White color

Energy efficiency:

Cooling down

• Seasonal efficiency (according to EN 14825) SEER: 8.74
• Energy Efficiency Class: A+++
• Annual energy consumption kWh 100

Heating

• Seasonal efficiency (according to EN 14825) SCOP: 5.25
• Energy Efficiency Class A+++
• Annual energy consumption kWh 666

Performance:

• Nominal cooling power: 2.5 kW
• Nominal heating power: 3.4 kW
• Power absorbed Heating Nom. kW 0.56
• Minimum sound pressure Cooling/Heating dB(A) 19
• Indoor unit sound power dB(A) 57

Characteristics:

• Power (V/Hz/Φ): 230/50/1
• Refrigerant gas: R-32
• Liquid/Gas pipe connections: 6.35/9.52 mm
• Operation range:
  - Cooling °CDB -10 ~ 46
  - Heating °CBU -15 ~ 18

Dimensions and weight:

• Internal Unit (WxDxH): 798x295x189
• Weight: 12 kg

General characteristics

" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact."

Discover the well-being of the future

Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to an entirely new level, reinventing the environment thanks to its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere in both summer and winter, minimizing consumption. The new R-32 refrigerant is more eco-friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and adjust the temperature in the rooms and the operating mode via a very simple to use smartphone app. Let Daikin guide you to create the perfect atmosphere.

Is your air conditioner more than 10/15 years old?

Discover the advantages of replacing it with a new Daikin Bluevolution. Here are the main benefits:

• halved consumption , saving on energy costs. This way you are good for the environment and your wallet
• absolute silence with a product 10 decibels less noisy, practically imperceptible: to sleep, listen to music and study without any disturbance
• 4 year warranty starting from 1 February 2016, the 2 year free Daikin Kizuna warranty extension will be reserved for the new BLUEVOLUTION residential range.
• pure air , thanks to the patented Flash StreamerTM system, to remove dust, pollen, mites, mold and many other allergens; even bad odors, viruses and bacteria
• tax deductions of 50 and 65% (checked on daikin.it)
• new design , with products designed to make the air conditioner a furnishing element.

Why choose Daikin?

• Seasonal efficiency in heating and cooling

Creating a pleasant climate in your home is not just a question of comfort. Daikin systems are also friendly to the environment... and your wallet. Daikin's advanced energy saving technologies guarantee high levels of seasonal efficiency in both heating and cooling, up to class A+++ . Consider that a class A+++ product is up to 40% more efficient than a class A++ product. Seasonal efficiency is a new way of classifying heating and cooling products based on their energy efficiency throughout the year.

• R-32: more efficient and eco-friendly

Daikin uses R-32, a refrigerant that results in lower CO2 emissions. This means the units have a lower global warming potential and are generally more efficient. For the benefit of the environment!

• Extreme silence

Noisy units are now a thing of the past. Daikin systems are so quiet as to be inaudible. You can read, study and sleep without any background noise.

• Better air quality with Daikin Flash StreamerTM technology

The Daikin Ururu Sarara and FTXM-M units thanks to Flash StreamerTM technology emit a beam of high-speed electrons to cause chemical reactions with air molecules, eliminating impurities such as pollen, mold, viruses, NOx and odors, leaving the air completely clean and free of allergens.

• Control via app Not at home?

Thanks to Daikin's Online Controller the problem is solved. You can adjust the internal temperature, air flow and operating mode from your device*, whenever and wherever you want. Furthermore, you can keep energy consumption under control, managing your climate responsibly.

DAIKIN STYLISH

With the Stylish line, Daikin reinterprets style and elegance by offering a unique and inimitable product in terms of design, technology and functions.
Daikin Stylish is an icon of perfection, the must to aspire to.

Why choose Stylish?

The Stylish range stands out both for its ultra-compact dimensions and for the high level of comfort that can be achieved in all seasons. 29.5 cm high and 79.8 cm wide, it is 18.7 cm deep. It uses the new low GWP R-32 refrigerant , is silent, thanks to its 19 dBA, and reaches the A+++ energy efficiency class, up to size 35. The result is that the Daikin Stylish air conditioner offers an always constant temperature to the full advantage of absolutely unique comfort .

New Design: available in 3 colors

New compact and functional design

Stylish is available in both the Monosplit and Multisplit versions in five sizes (20, 25, 35, 42 and 50). In the Multi version, the new size 15 is also available, perfect for the bedroom. All sizes have sufficient performance to access the 65% and Conto Termico incentive plans .

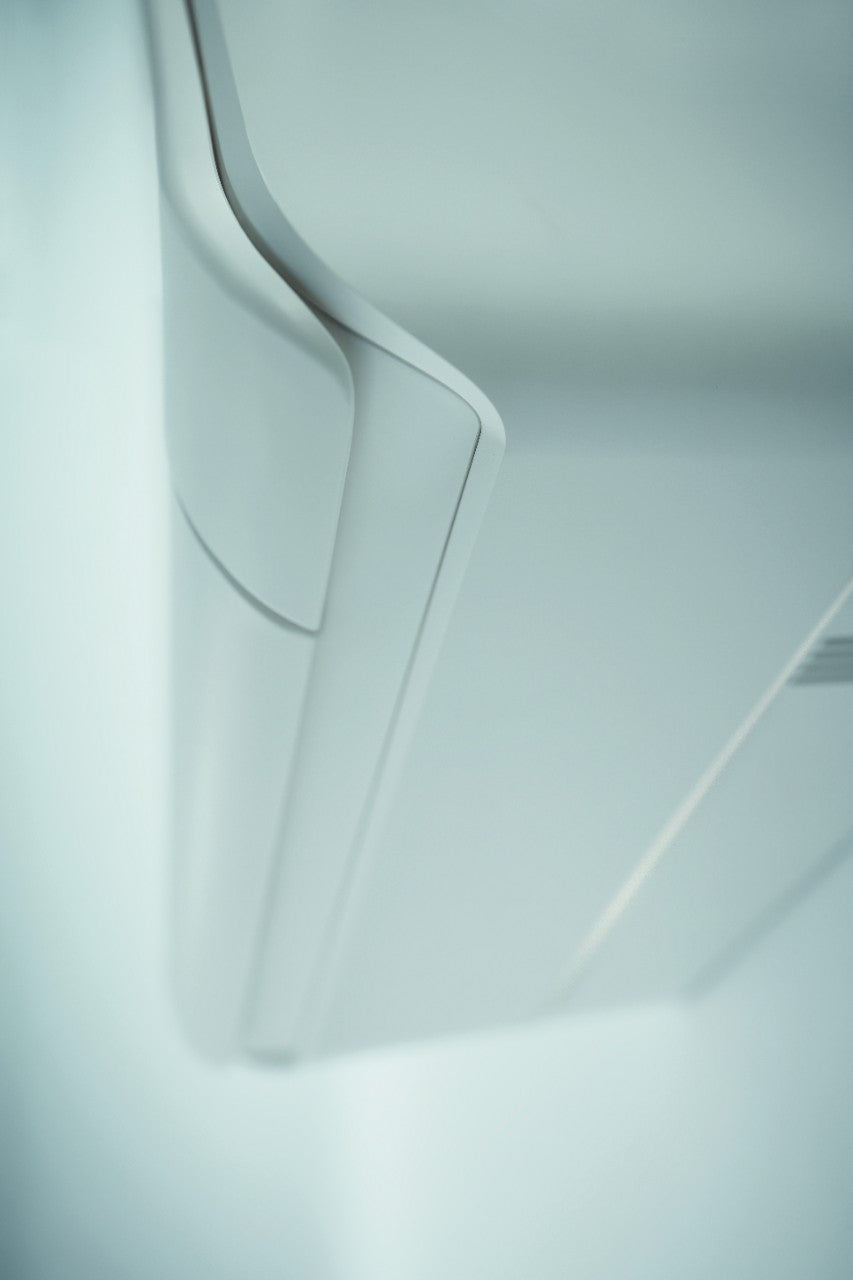

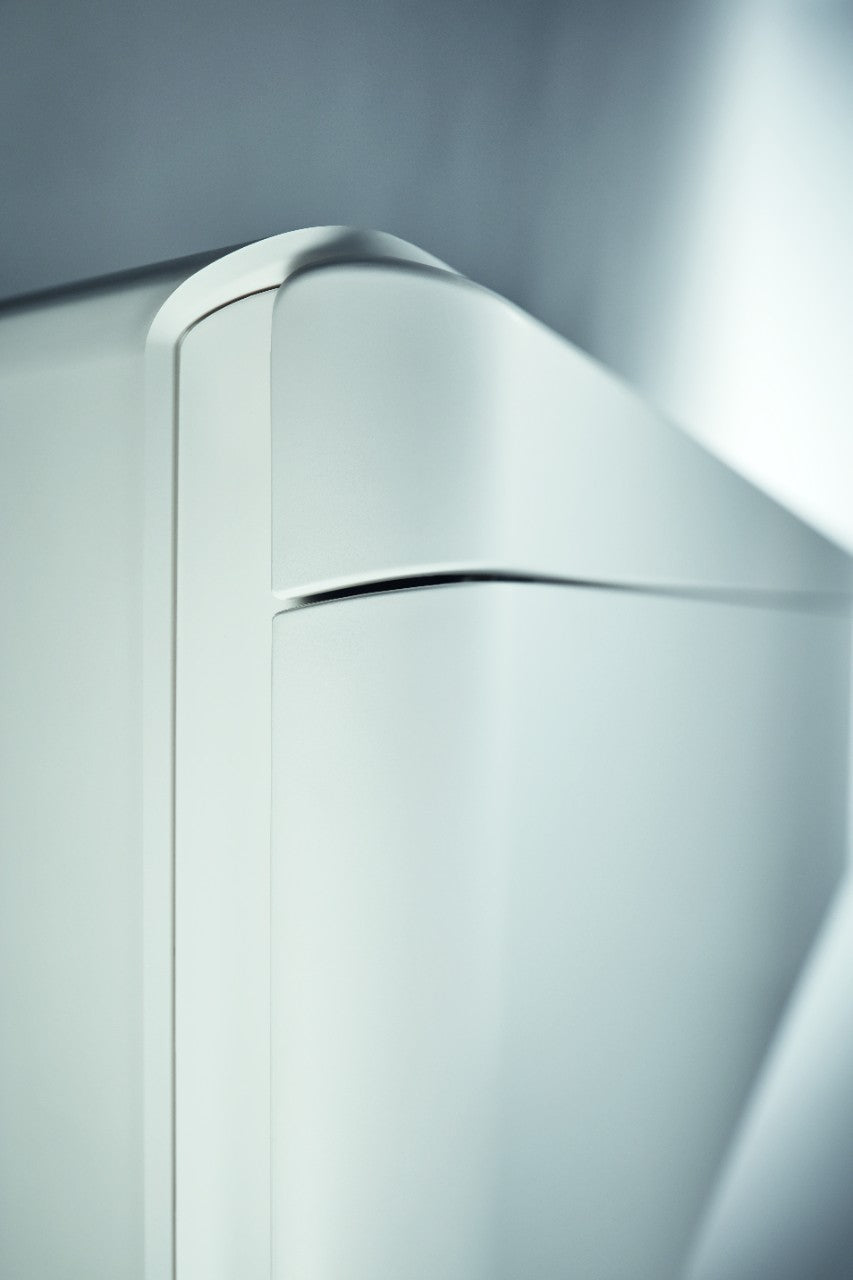

The front panel design makes it suitable for any home environment; the purity of the lines which have absolutely clean cuts blend perfectly with the most elegant colours: in addition to the traditional white and silver colours , it is possible to choose the new blackwood with a texture that recalls wood and which combines shine and opacity.

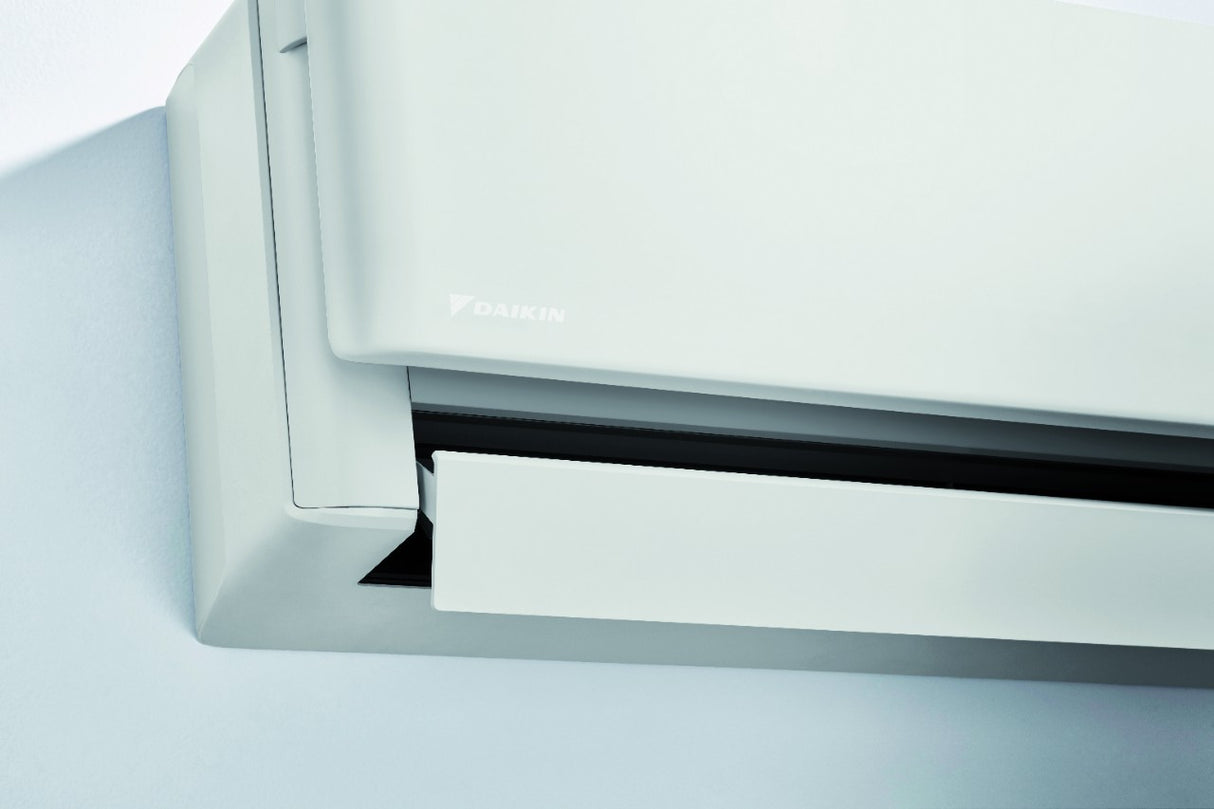

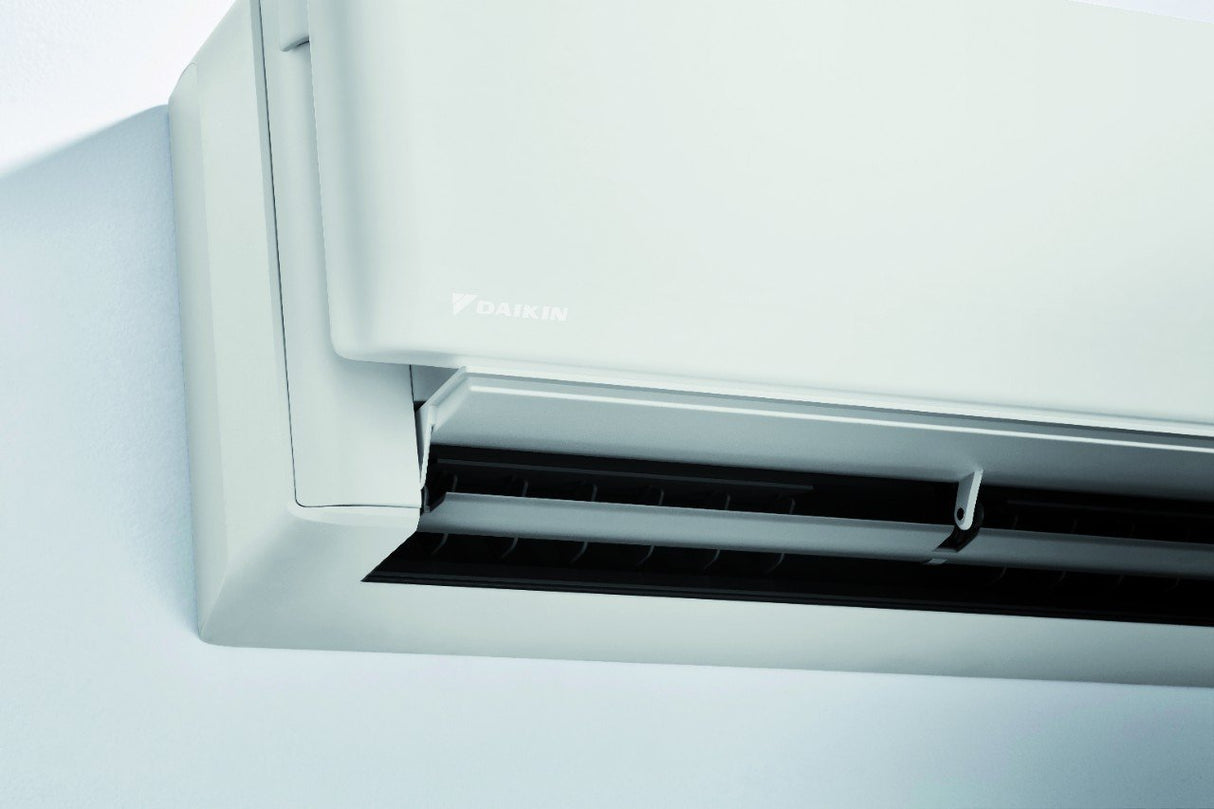

The image of Daikin Stylish comes out of the wall and embellishes it with its presence with a unique and decisive personality and great elegance. The Daikin Stylish air conditioner has already won the important Good Design Award for its innovative design and functions. Everything is completed with the great quality of the materials and finishes. Care for image and operation: when the air conditioner is turned off, the air diffusion vent remains in a hidden position and is only revealed when turned on thanks to the front panel which lifts automatically. Daikin Stylish is suitable for installation anywhere, in homes, in commercial activities and even in hotel environments; the small size of the internal units facilitates installation.

With seasonal SEER cooling performance up to 8.75 and SCOP heating up to 5.15, Stylish guarantees excellent air quality, thanks to the combination of Daikin Flash Streamer technology with the generation of high-speed electrons, the Apatite filter of Titanium and Silver Allergen patented by Daikin, dust particles present in the air and harmful organic chemicals (such as bacteria, viruses and allergens) are captured and neutralized and odors are also eliminated. All systems combined together really contribute to the well-being of the environments in which we live.

Perfect climate

The air conditioner DAIKIN Stylish, creates great comfort wherever it is installed. The set temperature is always kept constant and the air is distributed imperceptibly. The new fan has fins with many small incisions to spread the air better; the internal heat exchange coil wraps the fan on three sides, it is wider but takes up less space so the internal unit is thinner. The comfort offered is the best you could wish for thanks also to the extremely silent operation.

Each unit has a ready-to-use integrated Wi-Fi adapter (SD Card) that allows remote programming and management, as well as consumption monitoring, directly from the Daikin Online Controller application. Control is carried out using the Apps available for Android and IOS with which it is possible to control the air conditioner from anywhere via smartphone or tablet (WI-FI network required to connect the unit to the internet). Among the other special functions: Self-diagnosis, the Maximum Power Program, the Indoor Unit Silent Function, the Night Operation Program for the night, the Weekly and 24 hour Timer. Furthermore, the Comfort Mode which prevents air from being blown directly at people's height, the 3D Three-Dimensional Air Flow, the Econo Mode which allows you to reduce consumption by up to 30% per year, the Automatic Restart in case of absence of electricity, the presence and temperature sensor which automatically activates the Energy Saving Mode in Standby even in the absence of people.

Daikin Online Controller

Thanks to the new Coanda Air Flow function it is possible to obtain a more natural diffusion of air, at low speed and without direct flows. The new Stylish range is able to regulate the air jet along the ceiling when the cooling mode is set and along the wall when the heating mode is enabled.

Coanda effect

New to the range is the humidity sensor which allows you to maintain a high level of comfort both in temperature (controllable up to 0.5°C) and in humidity, adapting the operation of the fan and heat exchanger based on the value detected in the 'environment.

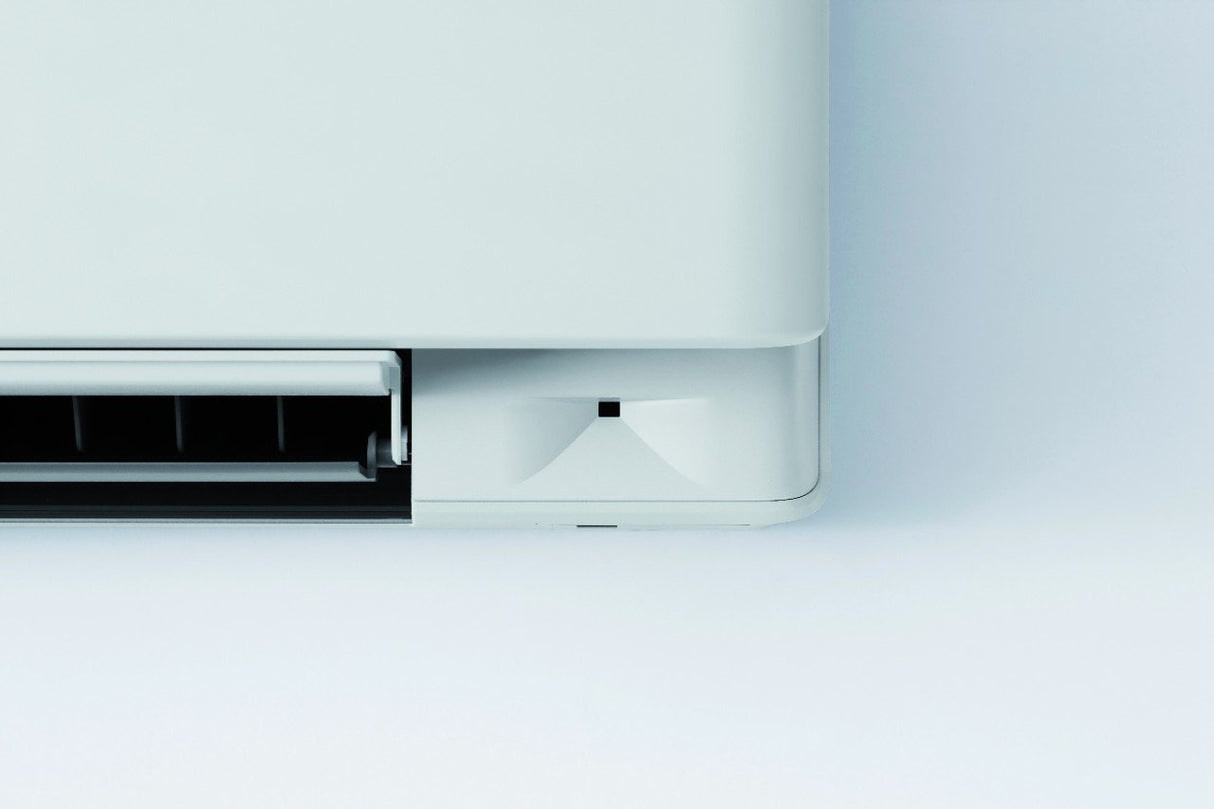

The Grid Air Sensor system optimizes the action of the air conditioner by detecting the presence of people and the temperature of both the floor and the walls to best direct the air flow.

Grid eye Sensor

The silence of both the internal unit of only 19 dB(A) at low ventilation speed, and the external one designed not to disturb the peace of the neighborhood, also equipped with the Silent External Unit Function and Night Mode , contribute to obtaining relaxation excellent and long lasting.

The remote control is compact and with clear and ergonomic controls; it also offers a convenient sliding door under which the keys are housed to access the most advanced functions.

• peso: 15.0 kg
• gas: R-32
• marca: DAIKIN
• modello: Unità Interna FTXA25AW
• potenza btu: 9000
• superficie riscaldabile mq: 25
