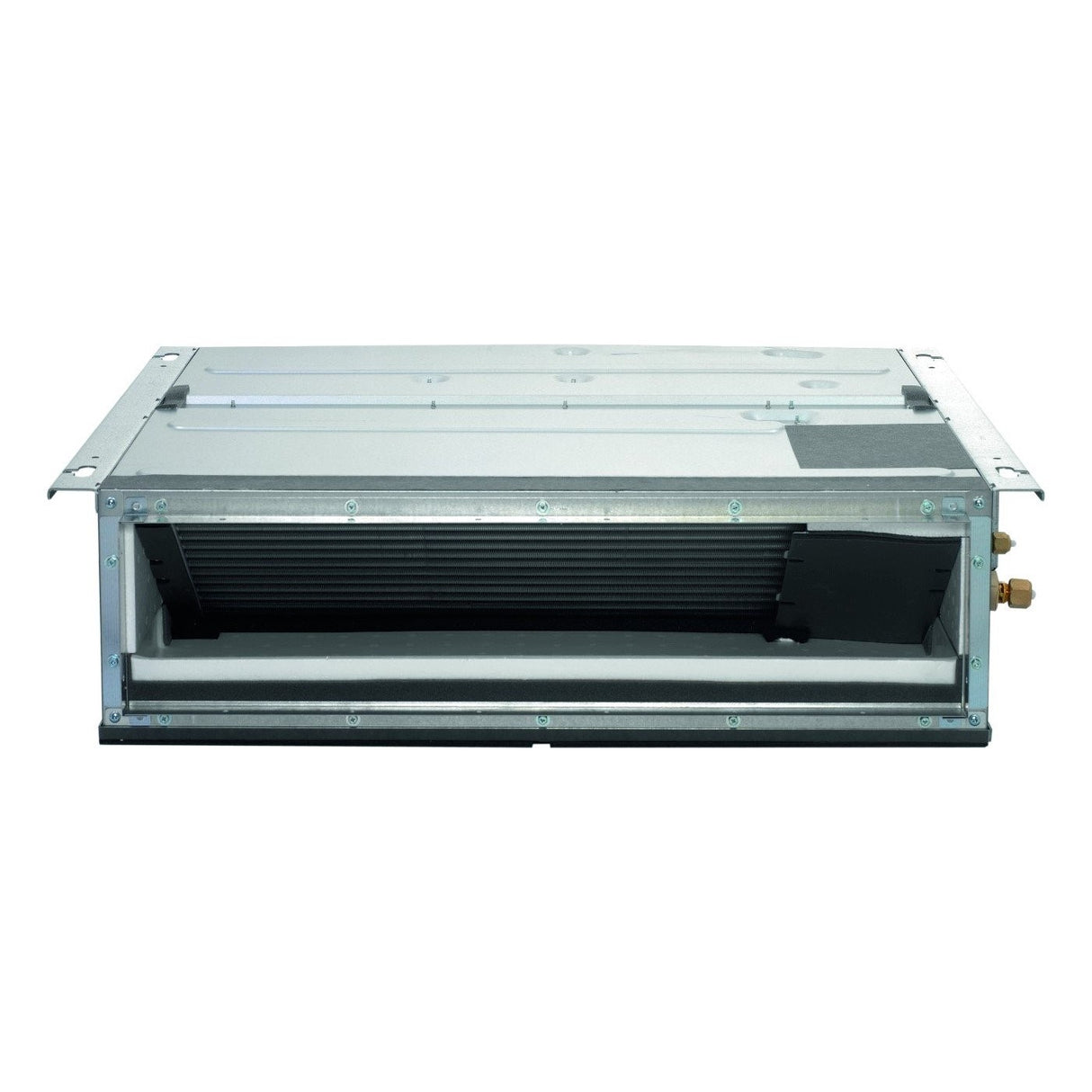

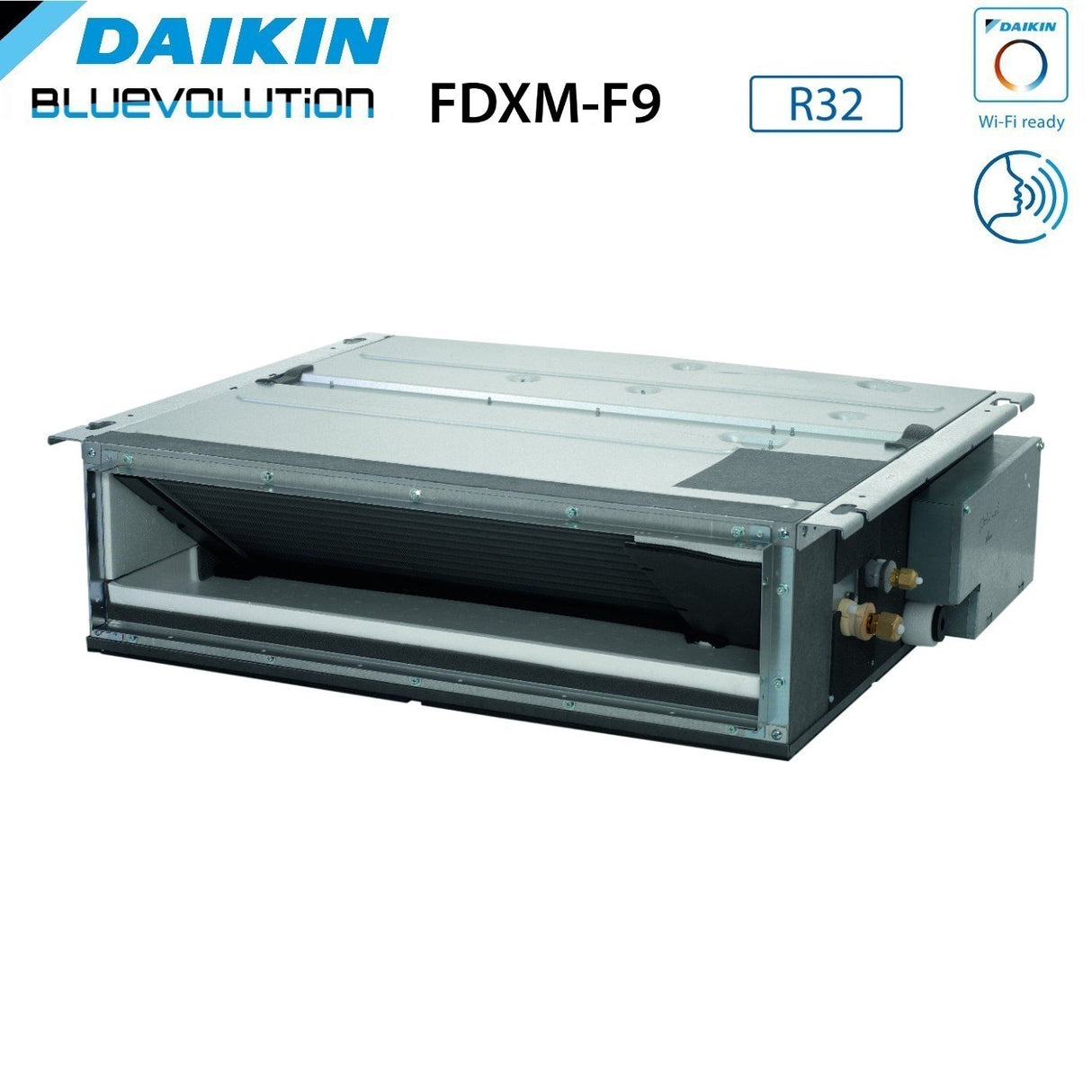

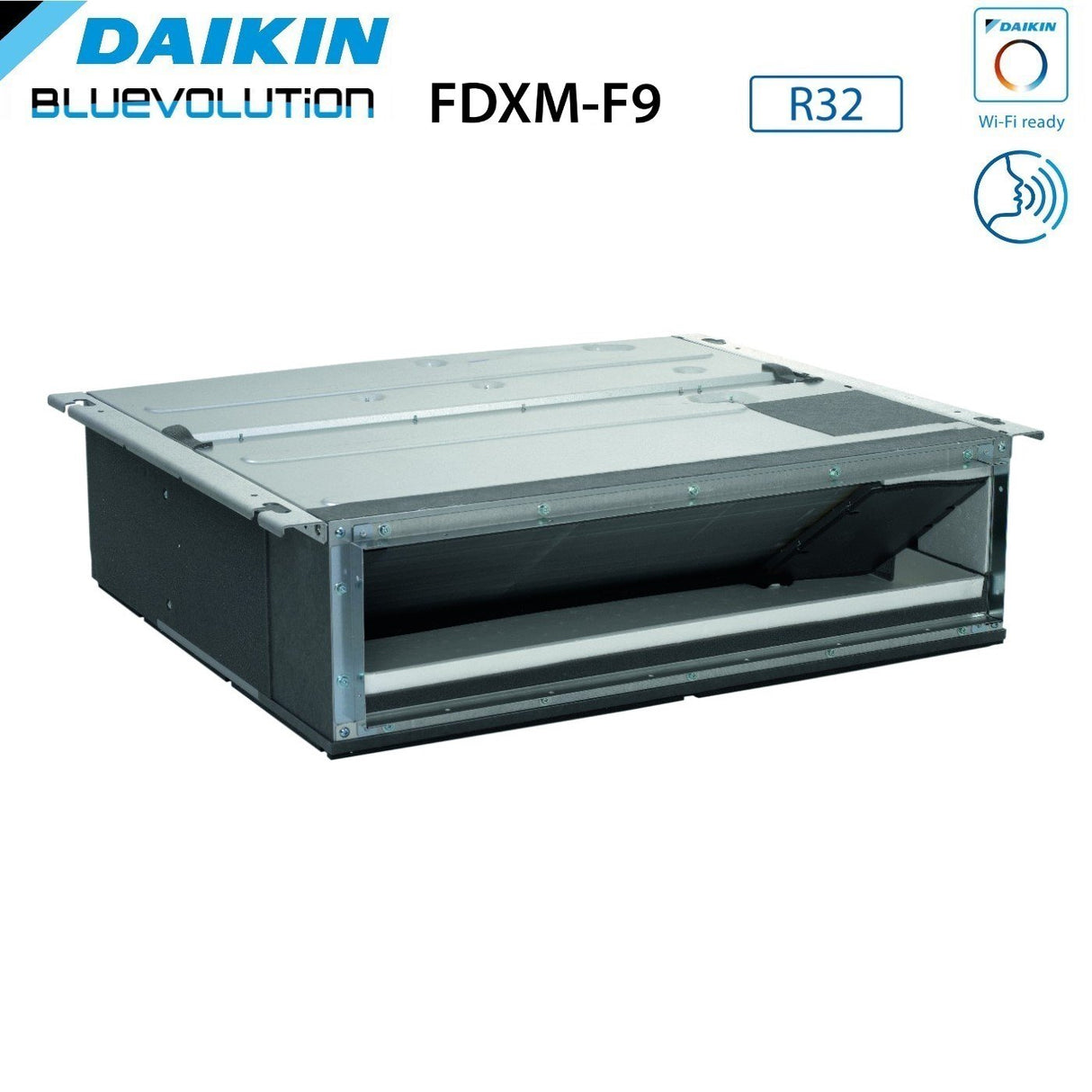

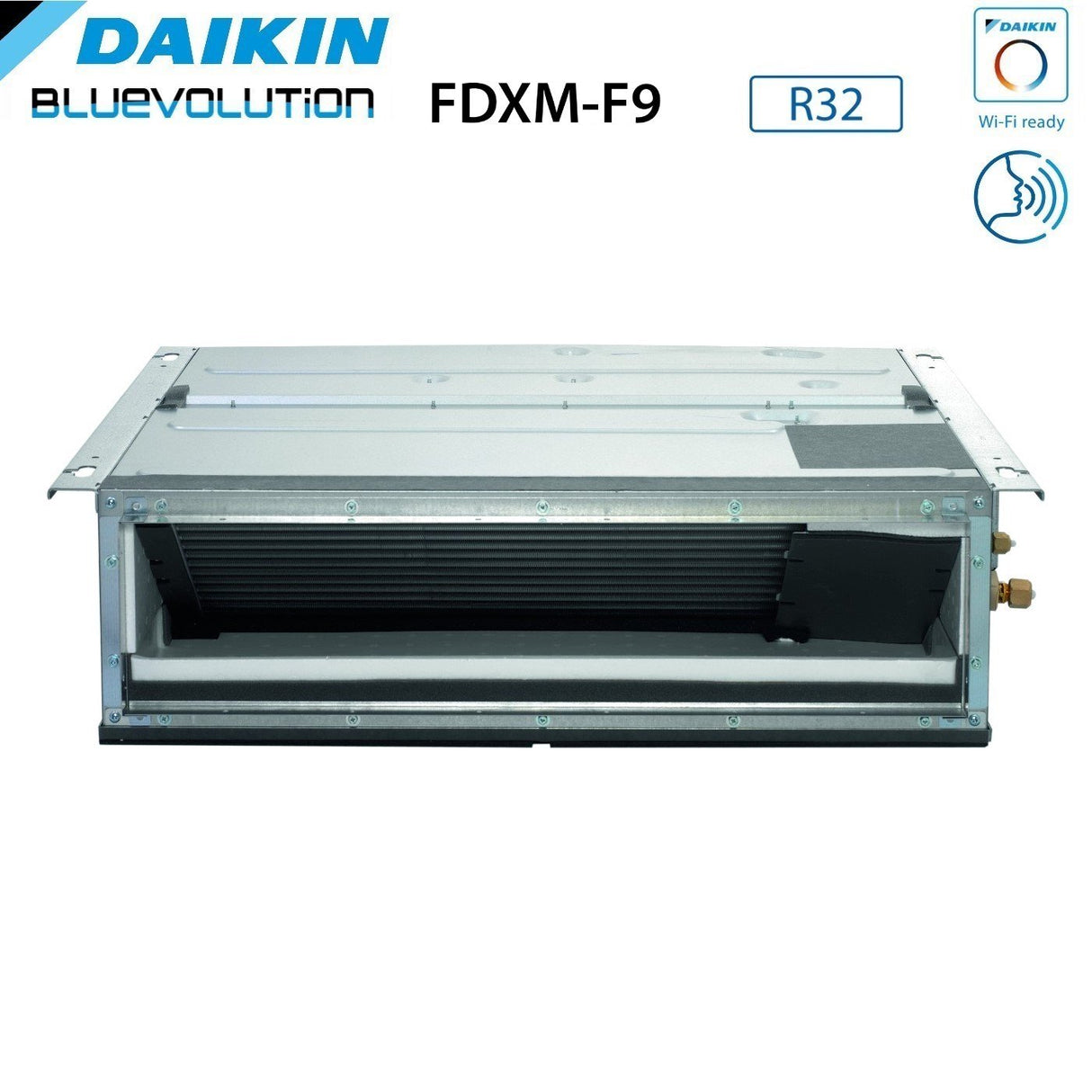

Ducted indoor unit Ultra-flat Daikin Bluevolution 12000 Btu FDXM35F3/F9 R-32 Wi-Fi Optional

Technical features

Model:

• Indoor unit catalog code: FDXM35F9
• Power: 12000 Btu
• Cooling Capacity: 3.40 kW
• Heating capacity: 4.00 kW
• Treated air: 8.0 m ³ /min
• Indoor Unit Sound Power Level: 53 dB(A)
• Sound pressure level: 27~35 dB(A)
• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Internal Unit Dimensions (HxWxD): 200x750x620 mm
• Internal Unit Weight: 21 Kg
• Optional Wi-Fi card (Code BRP069A81 )
• Optional infrared remote control (Code BRC4C65 )
• Optional Madoka White Wired Control (Code BRC1H519W )
• Optional Madoka Silver Wired Control (Code BRC1H519S )
• Optional Madoka Black Wired Control (Code BRC1H519K )

• 2MXM40M
• 2MXM50M
• 2MXM68N
• 3MXM40N
• 3MXM52N
• 3MXM68N
• 4MXM68N
• 4MXM80N
• 5MXM90M/N

Daikin Ducted FDXM-F

It redefines market standards for efficiency, silence, pure air and consumption control, with particular attention to environmental impact .

" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact."

Discover the well-being of the future

Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to an entirely new level, reinventing the environment thanks to its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere in both summer and winter, minimizing consumption. The new R-32 refrigerant is more eco-friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and adjust the temperature in the rooms and the operating mode via a very simple to use smartphone app. Let Daikin guide you to create the perfect atmosphere.

Take a deep breath of pure air

A wide choice

Daikin solutions are elegant, silent and efficient. For one or more rooms, Daikin has the right unit for you.

Why choose Daikin?

The Daikin Bluevolution series offers the best in comfort and pure air, design and performance. Whether you want to heat or cool one or more rooms, prefer wall-mounted or ducted ceiling units, Daikin has the solution tailored for you.

Ductable unit

FDXM-F is a compact false ceiling ducted unit, with a height of just 200mm

Invisible installation

Once installed, FDXM-F is invisible as it is embedded in the false ceiling. Only the intake and delivery grilles are visible.

24 hour timer

It can be set to start the unit at any time, within a 24 hour period

Simplified maintenance

The self-cleaning filter guarantees air quality, greater operating efficiency and lower maintenance costs

Voice Control

The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

Programming

Set a schedule to define system operating times, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check the system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Change the room temperature

Activate Powerful mode to enhance operation

The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 20.0 kg
• marca: DAIKIN
• modello: Unità Interna FDXM35F9
• potenza btu: 12000
• superficie riscaldabile mq: 35
