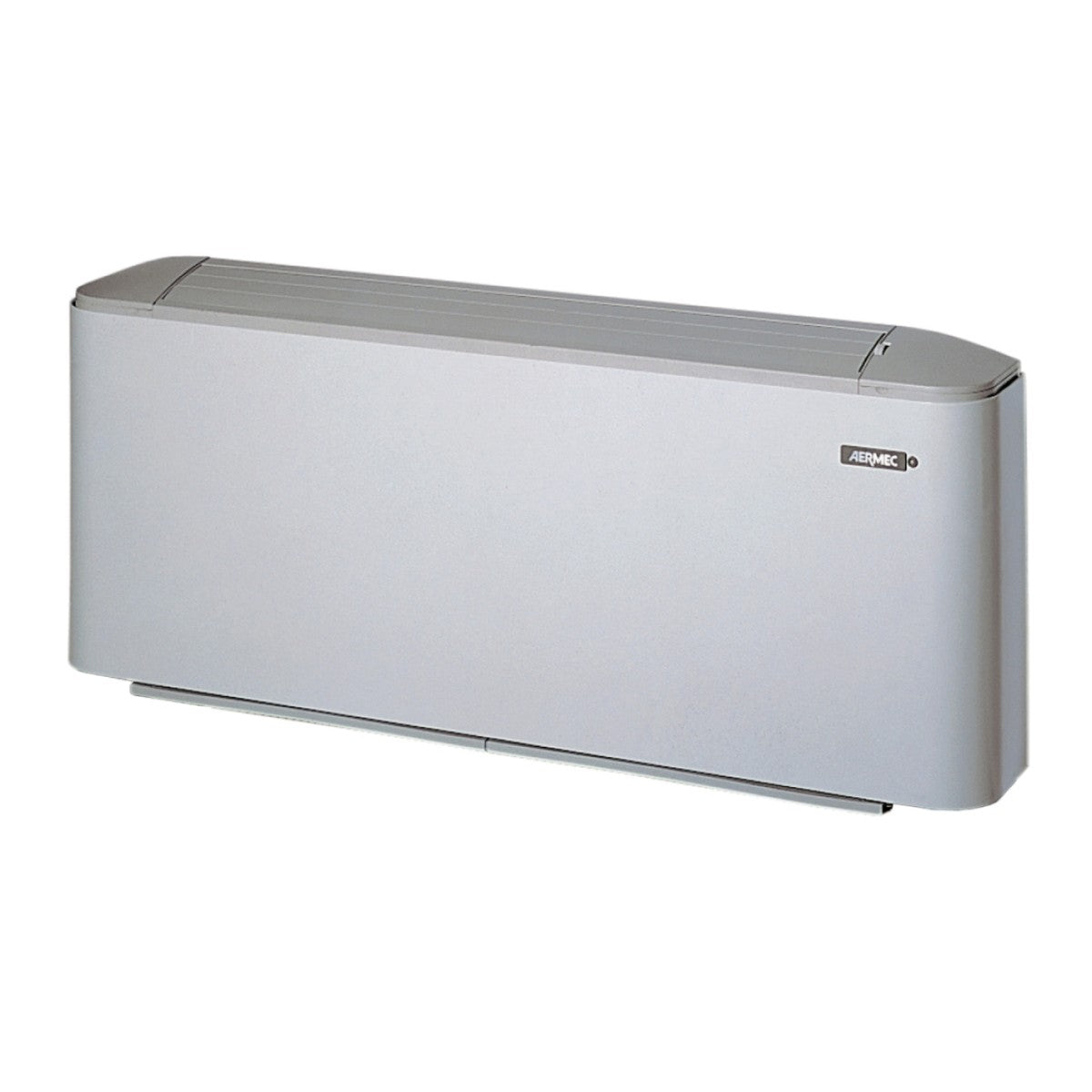

AERMEC Fan Coil fan coil mod. OMNIA UL 11 switch included

FAN COIL FAN COIL AERMEC mod. OMNIA UL 11 with switch included

• UL fan coils for both horizontal and vertical installation
• UL: version with switch and cabinet
• Mod.: OMNIA UL 11
• Cooling capacity: 0.84 - 0.54 kW
• Thermal power: 2.01 - 1.06 kW
• Water content: 0.4 litres
• Dimensions (HxWxD): 513 x 640 x 173 (mm)
• Plinth height: 93 (mm)
• Weight: 12.5 kg
• White color
• - RAL 9002 shell
• - Head and plinths RAL 7044

General characteristics

AERMEC OMNIA UL

Fan coils for universal installation for residential use, for heating, cooling and dehumidification, combinable with any heat generator.

• Cooling and heating
• Wall installation
• Floor installation
• Centrifugal fan
• Centralized control
• Compatible with the VMF (Variable Multi Flow) system
• For two-pipe systems

The units of the OMNIA UL (Universal Line) series are fan coils suitable for air conditioning. Available in various configurations depending on the installation position, with the possibility of being ducted, they are characterized by multi-speed motors. They have fans in ABS material with an impeller equipped with aerofoil fins and an inspectable screw. This feature gives the machine a clear reduction in the noise level emitted, as well as a reduction in the electrical absorption of the motor, compared to traditional fans with a metal structure. The UL unit, in the PC version, is equipped as standard with the PLASMACLUSTER ionizing filter, while the RADIANT version is equipped with a radiant plate with on/off motor or inverter. The units can be equipped with multiple accessories and can be integrated into the VMF - Aermec centralized hydronic management system.

Versions:

UL-S: version without controls, with cabinet. Compatible with the VMF System
UL: version with switch and cabinet
UL-C: version with electronic thermostat and cabinet
UL-PC: version with electronic thermostat, Plasmacluster filter (can only be installed on site) and mobile

Characteristics:

Cleaning the fan: With Omnia fan coils you can easily clean the fan blades. Now, in fact, you can open the fan scroll (the casing that encloses the blades) and proceed with their periodic cleaning.
Cleaning the condensate tray: Thanks to a new fixing system for the condensate tray, it can now be cleaned easily with the Omnia fan coils. This important solution avoids, in the long term, the formation of bacteria, germs and mold in the basin itself, due to the condensation of humidity present in the air
Electrostatically pre-charged filter: Omnia fan coils are equipped, as standard, with electrostatically pre-charged air filters. These filters, thanks to their construction peculiarity, absorb and retain suspended dust: the ideal system to guarantee healthy air for the whole family.
Silent operation: Thanks to the adoption of special centrifugal fans, the Omnia fan coils have extremely silent ventilation which brings these new fan coils to the heights of acoustic comfort thanks to the absence of noise peaks

UL fan coils for wall or floor installation

• EUROVENT certification
• 3-speed centrifugal fan unit
• Maximum silence
• High design aesthetics with rounded lines
• Adjustable air distribution grille
• Automatic shutdown of the fan coil by closing the air distribution grille
• Small dimensions
• Electronic temperature regulation, automatic fan speed change, automatic season change and automatic on - off (version with thermostat)
• Reversibility of hydraulic connections during installation
• Low pressure drop in heat exchange coils
• Electric motors with permanently inserted capacitors
• Easy installation and maintenance
• Easy extraction and cleaning air filter
• Electrostatically pre-charged filter

Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 49.0 kg
• marca: Aermec
• modello: Ventil_OMNIA_UL11
• potenza in kw: 1
