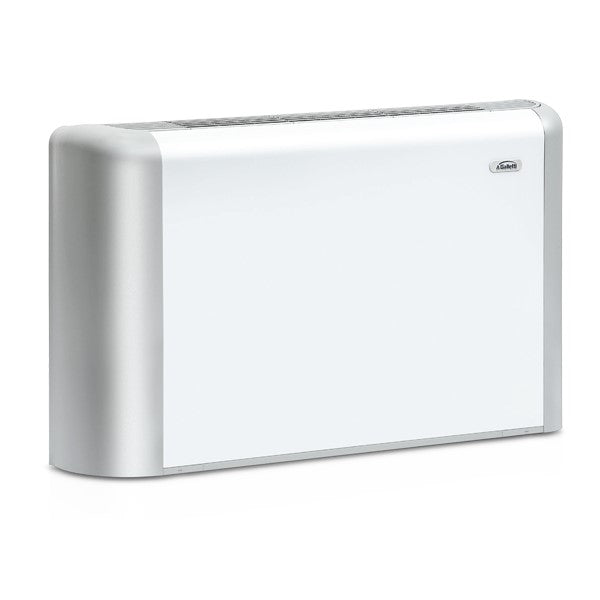

FAN COIL FAN COIL GALLETTI ESTRO F7L KW 3.51

GALLETTI ESTRO F7L FAN COIL KW 3.51 FAN COIL

• Model: ESTRO F7L
• Fan coils for exposed wall installation with covering cabinet with vertical air outlet
• Dimensions: 1194 x 564 x 226 mm

Galletti Estro

• The widest range of fan coils on the market combined with Galletti technology, quality and reliability
• The ESTRO series is by far the line of fan coils on the market with the widest range of models and accessories capable of satisfying all the needs of professionals in the sector. The range consists of 20 models made in 9 construction versions. For the realization of the ESTRO project, high quality materials were chosen which, together with the great care and attention paid to the assembly of the main components, qualify it in the field of performance reliability and acoustic comfort. The ESTRO line has a construction concept that allows models for vertical installation to be unified with those for horizontal installation: versions are created for exposed wall, floor/ceiling, recessed wall/ceiling and lowered floor mounting. In the built-in ducted version, ESTRO has a series of accessories that allow quick and economical installation with flexible ducts directly coupled to air diffusion grilles. ESTRO can be associated with a range of on-board or wall-mounted control panels consisting of over 20 options depending on the level of regulation and comfort required. An innovative air ionization system guarantees the sanitization of the terminal and the deodorization of the ambient air.

Estro FL

Version with cover cabinet suitable for exposed wall installation. Vertical air outlet, air filter on the intake secured to the cabinet with ¼ turn screws. ESTRO FL is available in 20 models.

Technical characteristics of the main components:

• Rounded shapes and colors that integrate perfectly with current furnishing criteria, respecting architectural needs.
• Cover cabinet composed of a very thick steel sheet panel (10/10 mm); lateral sides and delivery grille (adjustable 180°) are made of ABS. The side doors allow access to the technical compartments.
• Very thick galvanized steel sheet structure (up to 15/10 mm), insulated with class 1 self-extinguishing heat-insulating panels. The FU – FB – FC – FF and FBC versions are equipped with a double tray to collect condensation.
• High efficiency heat exchange coil, made of copper tube and aluminum fins locked to the tubes by mechanical expansion, is equipped with brass manifolds and vent valve. The battery, normally mounted with connections on the left, can be rotated 180°.
• Three or six speed electric motor mounted on anti-vibration supports, with permanently inserted capacitor and thermal protection of the windings.
• Double inlet centrifugal fans, statically and dynamically balanced and coupled directly to the electric motor, made of antistatic ABS with aerofoil blades and staggered modules
• Regenerable air filter in honeycomb polypropylene, mounted on a galvanized sheet metal frame with protective mesh, easily removable for maintenance operations. The filter is secured to the cover cabinet using 1/4 turn screws (excluding model 12).
• Control panels, available as an accessory, for controlling and regulating the temperature using a microprocessor system, which automatically adapts the operation of the fan coil to changes in environmental conditions.

Product Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 49.0 kg
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• marca: Galletti
• modello: F7l
• potenza in kw: 3
